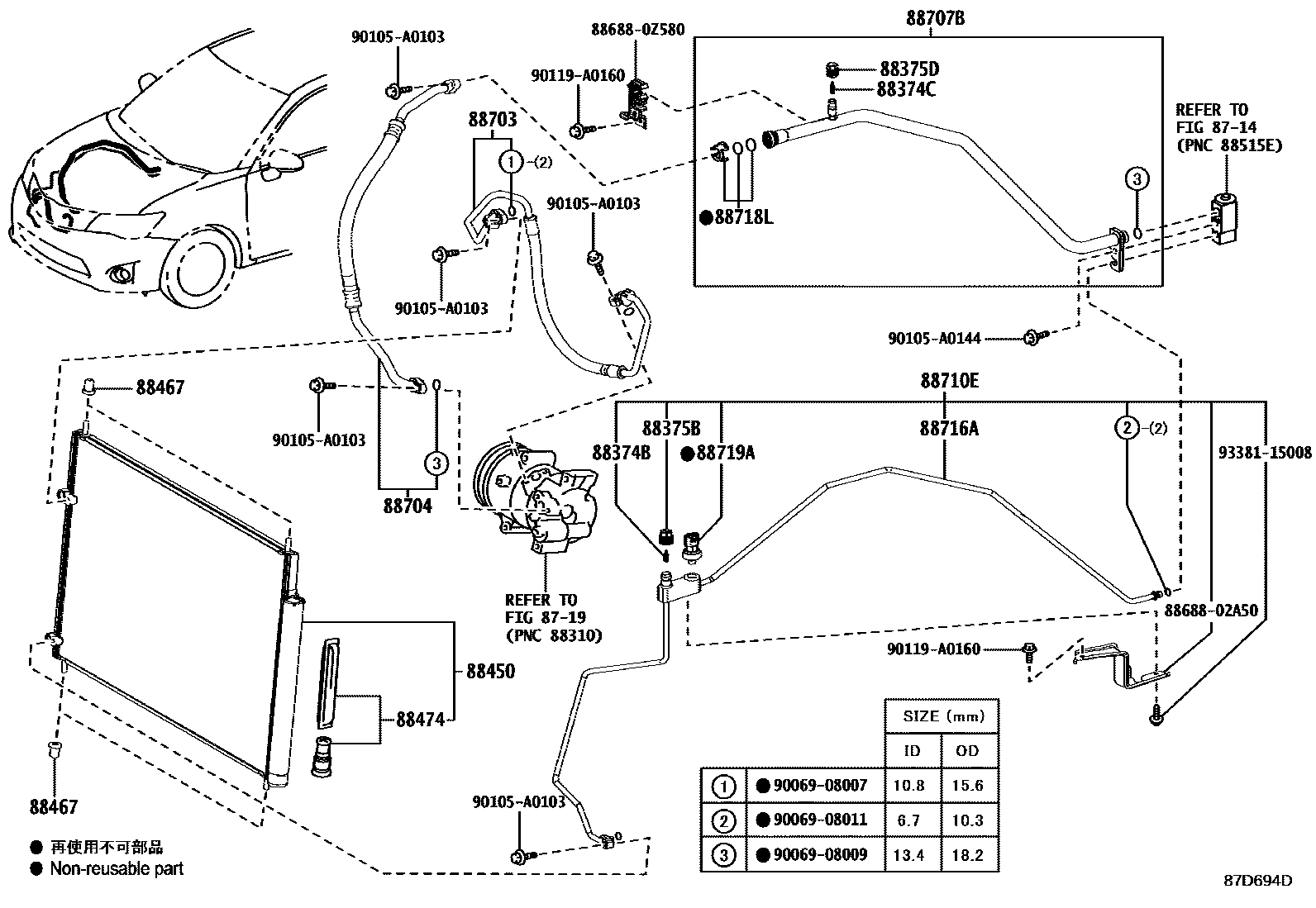

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZRE172..CVT,MTM201308-201608

main88374-30010iZRE172201608

AIR CONDITIONER-WITHOUT

88374CVALVE, SERVICE, NO.2

main88374-30010iZRE172..CVT,MTM201308-201608

main88374-30010iZRE172201608

AIR CONDITIONER-WITHOUT

88375BCAP, SERVICE VALVE, NO.1

main88375-02060iZRE172..4FC201308-201602

(L)

sub88375-0E020

main88375-0E020iZRE172201602-201608

AIR CONDITIONER-WITHOUT,(L)

main88375-0E020iZRE172201602-201608

(L)

main88375-30280iZRE172..4FC201308-201608

(J)

88375DCAP, SERVICE VALVE, NO.2

main88375-02070iZRE172..CVT,MTM201308-201602

(L)

sub88375-0E030

main88375-0E030iZRE172201602-201608

AIR CONDITIONER-WITHOUT,(L)

main88375-0E030iZRE172201602-201608

(L)

main88375-30290iZRE172..CVT,MTM201308-201608

(J)

88450CONDENSER ASSY, W/RECEIVER

main88450-02330iZRE172201308-201608

main88450-02330iZRE172201608

AIR CONDITIONER-WITHOUT

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iZRE172201308-201608

88474DRYER, COOLER

main88474-17010iZRE172201308-201608

main88474-17010iZRE172201608

AIR CONDITIONER-WITHOUT

88703HOSE SUB-ASSY, DISCHARGE

main88703-02860iZRE172..4FC201308-201608

main88703-02860iZRE172201608

AIR CONDITIONER-WITHOUT

88704HOSE SUB-ASSY, SUCTION

main88704-0Z180iZRE172..4FC201308-201608

main88704-0Z180iZRE172201608

AIR CONDITIONER-WITHOUT

88707BTUBE SUB-ASSY, SUCTION, B

main88707-02240iZRE172..4FC201308-201608

main88707-02240iZRE172201608

AIR CONDITIONER-WITHOUT

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0Z460iZRE172..4FC201308-201608

main88710-0Z460iZRE172201608

AIR CONDITIONER-WITHOUT

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-02A20iZRE172..4FC201308-201608

main88716-02A20iZRE172201608

AIR CONDITIONER-WITHOUT

88718LCLAMP, PIPING

main88718-52280iZRE172201308-201608

main88718-52280iZRE172201608

AIR CONDITIONER-WITHOUT

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRE172..4FC201308-201608

main88719-33020iZRE172201608

AIR CONDITIONER-WITHOUT

8868802A50BRACKET, COOLER DIAPHRAGM

main88688-02A50

886880Z580BRACKET, COOLER DIAPHRAGM

main88688-0Z580

9006908007

main90069-08007

9006908009

main90069-08009

9006908011

main90069-08011

90105A0103

main90105-A0103

90105A0144

main90105-A0144

90119A0160

main90119-A0160

9338115008

main93381-15008

25 parts on this diagram · 1 diagram in section
