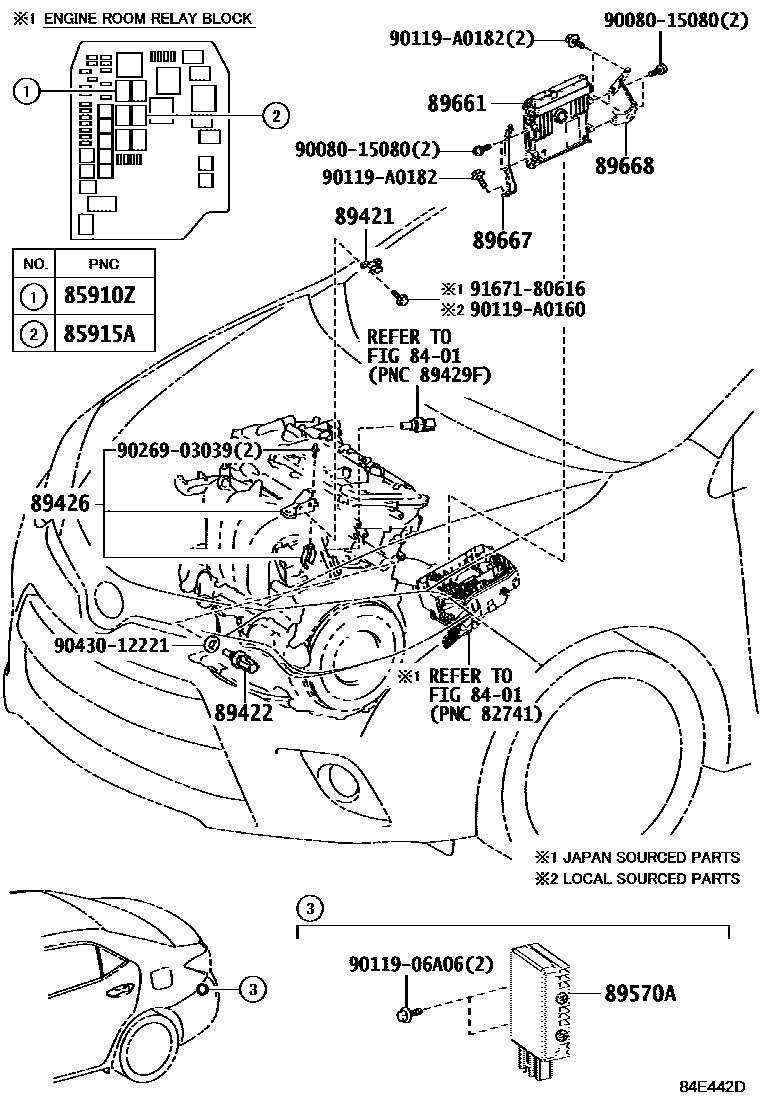

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ZRELAY, INJECTION (FOR EFI)

main90080-87026iZRE172..MXC201608

sub90987-02027

85915ARELAY, MAIN

main90080-87026iZRE172..4FC201308-201608

sub90987-02027

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE172..MXC201608

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZRE172..4FC201308-201608

89426BRACKET, VACUUM SENSOR

main89426-13020iZRE172..MXC201608

(J)

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-12390iZRE172..MXC201608

89661COMPUTER, ENGINE CONTROL

main89661-0Z670iZRE172..CVT..(LE,STD)..MXC201408-201608

sub89661-0Z671

main89661-0Z680iZRE172..CVT..S..MXC201408-201608

sub89661-0Z681

main89661-0Z690iZRE172..6F..MXC201408-201608

main89661-0ZB70iZRE172..4FC201308-201404

sub89661-0ZB71

main89661-0ZB71iZRE172..4FC201405-201408

main89661-0ZB80iZRE172..6F201308-201404

sub89661-0ZB81

main89661-0ZB81iZRE172..6F..MXC201405-201408

main89661-0ZE00iZRE172..CVT..(LE,STD)201404-201408

main89661-0ZE01iZRE172..CVT..(LE,STD)..GEN201409-201708

main89661-0ZE10iZRE172..CVT..S201404-201408

main89661-0ZE11iZRE172..CVT..S..GEN201409-201708

main89661-0ZE20iZRE172..6F..GEN201404-201408

sub89661-0ZE21

main89661-0ZE21iZRE172..6F..GEN201409-201708

main89661-0ZR80iZRE172..CVT..(LE,STD)..MXC201608

main89661-0ZR90iZRE172..CVT..S..MXC201608

main89661-0ZS00iZRE172..6F..MXC201608

main89666-02650iZRE172..CVT..(LE,STD)..GEN201708

main89666-02660iZRE172..CVT..S..GEN201708

main89666-02670iZRE172..6F..GEN201708

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02320iZRE172..4FC201308-201608

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02300iZRE172..4FC201308-201608

9008015080

main90080-15080

9011906A06

main90119-06A06

90119A0160

main90119-A0160

90119A0182

main90119-A0182

9026903039

main90269-03039

9043012221

main90430-12221

9167180616

main91671-80616

17 parts on this diagram · 1 diagram in section
