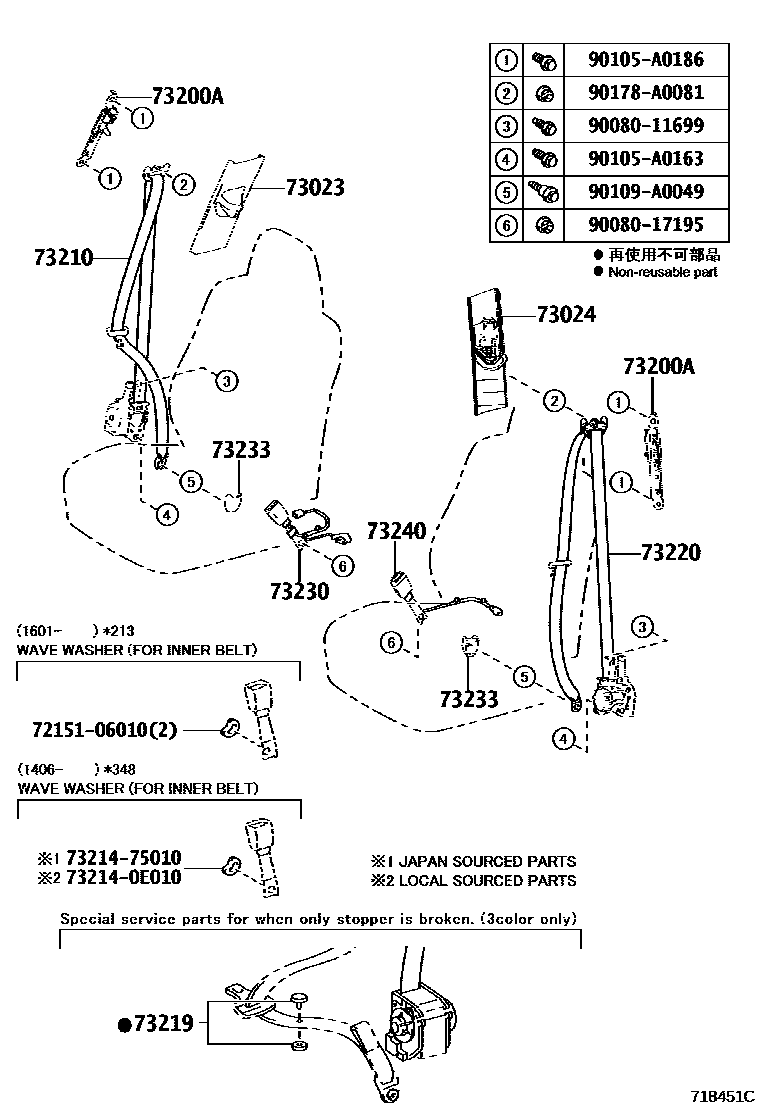

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06070-A0iZRE172..LE..GEN;ZRE172..4FC..LE201308-201608

IVORY,TRIM0#,41

main73023-06070-A1iZRE172..LE201608

FLAXEN,TRIM0#

main73023-06070-B1iZRE172..S201608

LT.GRAY,TRIM1#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06070-A0iZRE172..LE..GEN;ZRE172..4FC..LE201308-201608

IVORY,TRIM0#,41

main73024-06070-A1iZRE172..LE201608

FLAXEN,TRIM0#

main73024-06070-B1iZRE172..S201608

LT.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040×2iZRE172..4FC201308-201408

main73200-0C020×2iZRE172201608

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02480-A0iZRE172..LE..MXC201308-201510

IVORY,TRIM0#

main73210-02480-B0iZRE172..LE..MXC201308-201510

GRAY,TRIM1#

main73210-02480-C0iZRE172..S..MXC201308-201510

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73210-02480-C1iZRE172..LE..MXC201308-201408

BLACK/IVORY,TRIM41

main73210-02481-A0iZRE172..LE..MXC201511-201608

IVORY,TRIM0#

main73210-02481-A1iZRE172..LE..MXC201608

FLAXEN,TRIM0#

main73210-02481-B0iZRE172..LE..MXC201608

GRAY,TRIM1#

main73210-02481-C0iZRE172..S..MXC201511-201608

BLACK/LT.GRAY,TRIM1#

main73210-02481-C1iZRE172..LE..MXC201511-201608

BLACK/IVORY,TRIM4#

main73210-02500-A0iZRE172..LE..GEN201404-201510

IVORY,TRIM0#

main73210-02500-B0iZRE172..LE..GEN201404-201510

GRAY,TRIM1#

main73210-02500-C0supersedes 73210-02480-C0iZRE172..LE..GEN201404-201510

BLACK,TRIM1#

main73210-02500-C1iZRE172..LE..GEN201404-201510

BLACK/IVORY,TRIM41

main73210-02501-A0iZRE172..LE..GEN201511-201608

IVORY,TRIM0#

main73210-02501-A1iZRE172..LE..GEN201608

FLAXEN,TRIM0#

main73210-02501-B0iZRE172..LE..GEN201608

GRAY,TRIM1#

main73210-02501-C0supersedes 73210-02481-C0iZRE172..LE..GEN201608

BLACK,TRIM2#

main73210-02501-C1iZRE172..LE..GEN201511-201608

BLACK/IVORY,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-02010iZRE172..CVT,MTM201308-201608

BLACK

main73219-02020iZRE172201608

GRAY

main73219-02030iZRE172..CVT,MTM201308-201608

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02460-A0iZRE172..LE..MXC201308-201510

IVORY,TRIM0#

main73220-02460-B0iZRE172..LE..MXC201308-201510

GRAY,TRIM1#

main73220-02460-C0iZRE172..S..MXC201308-201510

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

main73220-02460-C1iZRE172..LE..MXC201308-201408

BLACK/IVORY,TRIM41

main73220-02461-A0iZRE172..LE..MXC201511-201608

IVORY,TRIM0#

main73220-02461-A1iZRE172..LE..MXC201608

FLAXEN,TRIM0#

main73220-02461-B0iZRE172..LE..MXC201511-201608

GRAY,TRIM1#

main73220-02461-C0iZRE172..S..MXC201511-201608

BLACK/LT.GRAY,TRIM1#

main73220-02461-C1iZRE172..LE..MXC201511-201608

BLACK/IVORY,TRIM4#

main73220-02580-A0iZRE172..LE..GEN201404-201510

IVORY,TRIM0#

main73220-02580-B0iZRE172..LE..GEN201404-201510

GRAY,TRIM1#

main73220-02580-C0supersedes 73220-02460-C0iZRE172..LE..GEN201404-201510

BLACK,TRIM1#

main73220-02580-C1iZRE172..LE..GEN201404-201510

BLACK/IVORY,TRIM41

main73220-02581-A0iZRE172..LE..GEN201511-201608

IVORY,TRIM0#

main73220-02581-A1iZRE172..LE..GEN201608

FLAXEN,TRIM0#

main73220-02581-B0iZRE172..LE..GEN201608

GRAY,TRIM1#

main73220-02581-C0supersedes 73220-02461-C0iZRE172..STD..MXC201511-201608

BLACK,TRIM1#

main73220-02581-C1iZRE172..LE..GEN201511-201608

BLACK/IVORY,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02590-A0iZRE172..LE..MXC201608

FLAXEN,TRIM0#,*213

main73230-02590-B0iZRE172..LE..MXC201608

GRAY,TRIM1#,*213

main73230-02590-C0iZRE172..S..MXC201608

BLACK,TRIM1#,*213

main73230-02750-A0iZRE172..LE..MXC201308-201608

IVORY,TRIM0#,*213

main73230-02750-B0iZRE172..LE..MXC201308-201608

GRAY,TRIM1#,*213

main73230-02750-C0iZRE172..S..MXC201308-201608

BLACK,TRIM1#,*213

main73230-02830-A0iZRE172..(LE,STD)..GEN201404-201608

IVORY,TRIM0#

main73230-02830-A1iZRE172..LE..GEN201608-201708

FLAXEN,TRIM0#,*348

main73230-02830-B0iZRE172..LE..GEN201404-201608

GRAY,TRIM1#

main73230-02830-C0supersedes 73230-0R080-C0iZRE172..LE..GEN201608-201708

BLACK,TRIM1#,*348

main73230-0R080-A0iZRE172..LE..MXC201308-201608

IVORY,TRIM0#,*348

main73230-0R080-B0iZRE172..LE..MXC201308-201608

GRAY,TRIM1#,*348

main73230-0R080-C0iZRE172..S..MXC201308-201608

BLACK,TRIM2#,4#,8#,*348

main73230-0R081-A1iZRE172..LE..MXC201608

FLAXEN,TRIM0#,*348

main73230-0R081-B0iZRE172..LE..GEN201708

GRAY,TRIM1#,*348

main73230-0R081-C0iZRE172..S..MXC201608

BLACK,TRIM1#,*348

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C0×2iZRE172..S201608

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02740-A0iZRE172..LE..MXC201308-201608

IVORY,TRIM0#,*348

main73230-02740-A1iZRE172..LE..MXC201608

FLAXEN,TRIM0#,*348

main73230-02740-B0iZRE172..LE..MXC201608

GRAY,TRIM1#,*348

main73230-02740-C0iZRE172..LE..GEN201708

BLACK,TRIM1#,*348

main73230-02780-A0iZRE172..LE..MXC201308-201608

IVORY,TRIM0#,*213

main73230-02780-A1iZRE172..LE..MXC201608

FLAXEN,TRIM0#,*213

main73230-02780-B0iZRE172..LE..MXC201608

GRAY,TRIM1#,*213

main73230-02780-C0iZRE172..S..MXC201608

BLACK,TRIM1#,*213

main73230-02A20-A0iZRE172..LE..GEN201404-201608

IVORY,TRIM0#

main73230-02A20-A1iZRE172..LE..GEN201608-201708

FLAXEN,TRIM0#,*348

main73230-02A20-B0iZRE172..LE..GEN201404-201608

GRAY,TRIM16

main73230-02A20-C0supersedes 73230-02780-C0iZRE172..LE..GEN201404-201608

BLACK,TRIM4#

main73230-02770-C0iZRE172..LE..MXC201308-201408

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#,*348,(L)

7215106010RAIL, SEAT TRACK, LOWER RH

main72151-06010

732140E010PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008011699

main90080-11699

9008017195

main90080-17195

90105A0163

main90105-A0163

90105A0186

main90105-A0186

90109A0049

main90109-A0049

90178A0081

main90178-A0081

18 parts on this diagram · 2 diagrams in section
