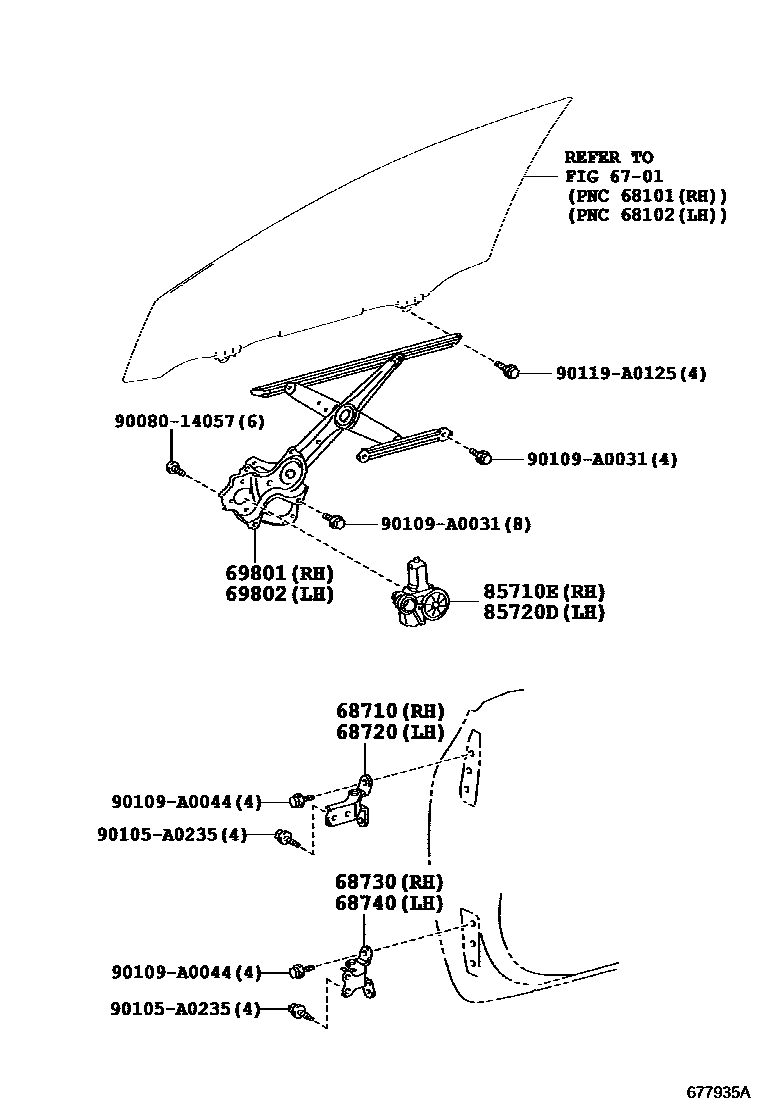

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iZRE172..4FC201308-201408

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iZRE172..4FC201308-201408

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iZRE172..4FC201308-201408

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iZRE172..4FC201308-201408

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02300iZRE172..4FC201308-201408

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02310iZRE172..4FC201308-201408

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AE010iZRE172..4FC201308-201408

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02450iZRE172..4FC201308-201408

main85720-06281iZRE172201608

9008014057

main90080-14057

90105A0235

main90105-A0235

90109A0031

main90109-A0031

90109A0044

main90109-A0044

90119A0125

main90119-A0125

14 parts on this diagram · 1 diagram in section
