SIDE MEMBER
53707GEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
53821BBRACKET, FRONT FENDER, REAR RH
55713CPANEL, COWL TOP SIDE, RH
5701
58745PROTECTOR, QUARTER PANEL, FRONT RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61605EPANEL, QUARTER, RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
61619DREINFORCEMENT, QUARTER PANEL, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61667CSEAL, QAURTER PANEL, NO.1
61697DHOUSING, QUARTER PANEL END, RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61815DCOVER, ROOF SIDE
61822BPLATE, NOISE CONTROL
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
61827APLATE, NOISE CONTROL, NO.4
61951BRACKET, SIDE TRIM, RH
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
90105A0233
main90105-A0233
90182A0021
main90182-A0021
9054111010
main90541-11010

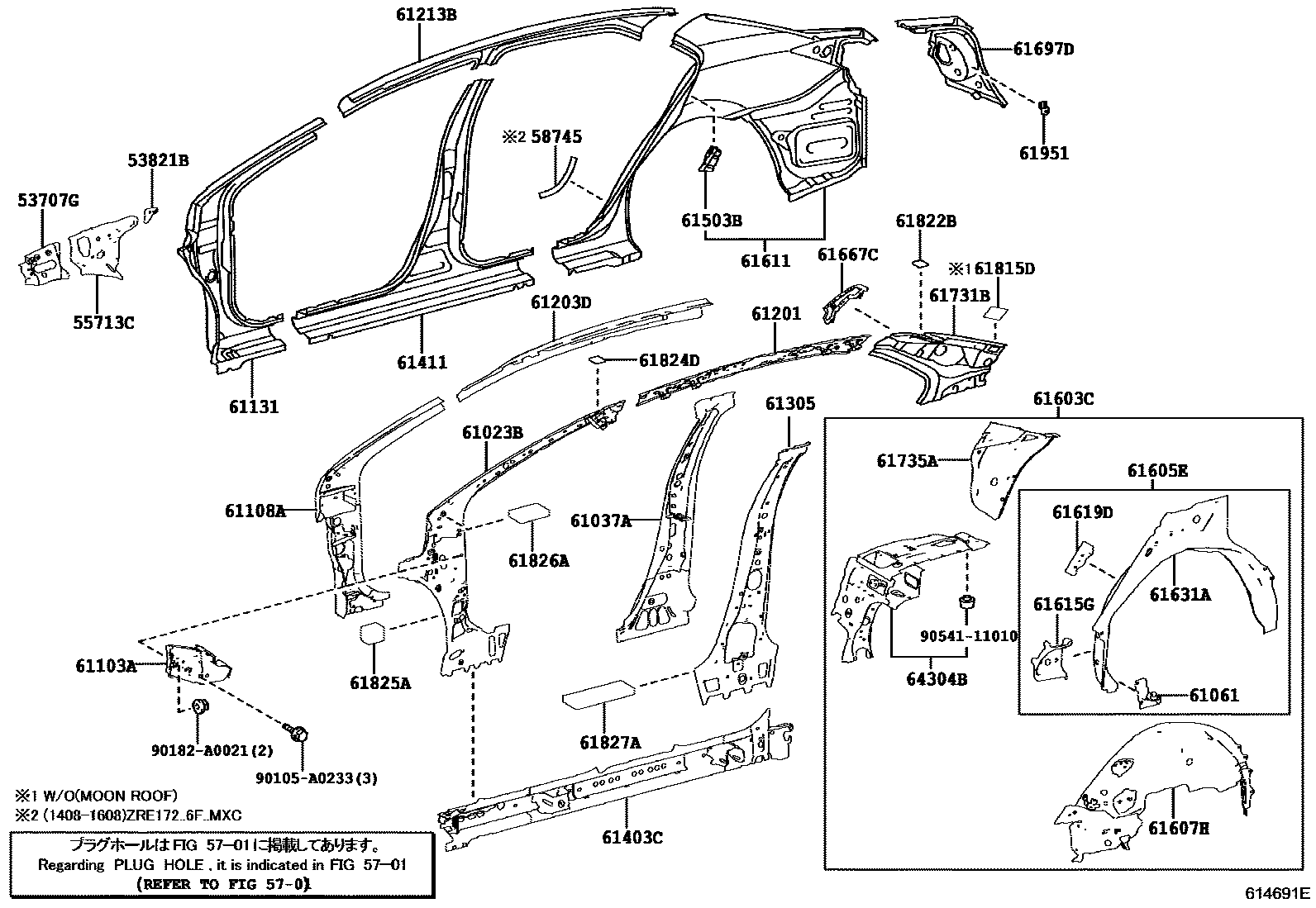

40 parts on this diagram · 2 diagrams in section
