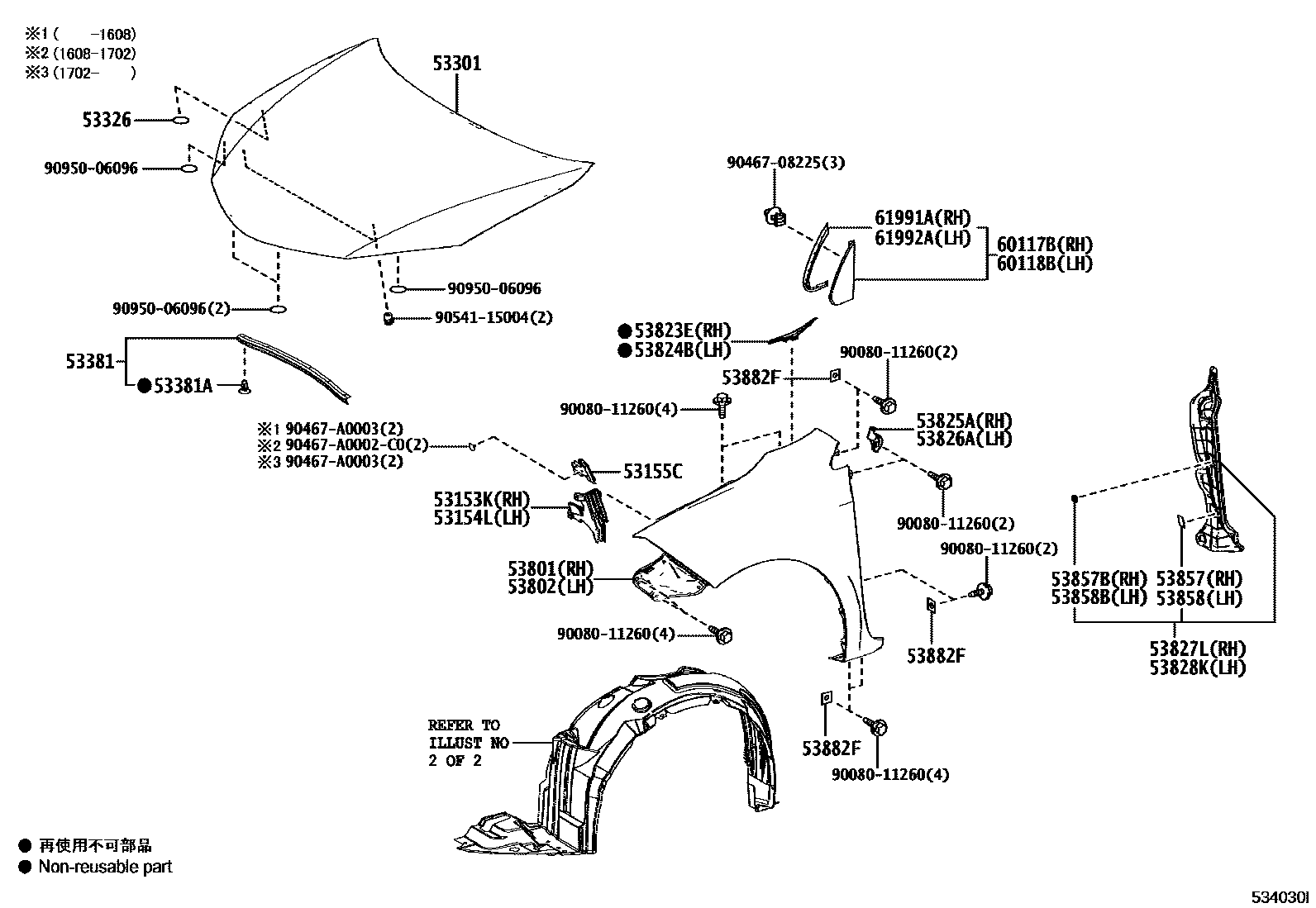

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53301HOOD SUB-ASSY
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882FSEAL, FRONT FENDER
60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH
60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH
61991APROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH
61992APROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH
9008011260
main90080-11260
9046708225
main90467-08225
90467A0002C0
main90467-A0002C0
90467A0003
main90467-A0003
9054115004
main90541-15004
9095006096
main90950-06096
30 parts on this diagram · 2 diagrams in section
