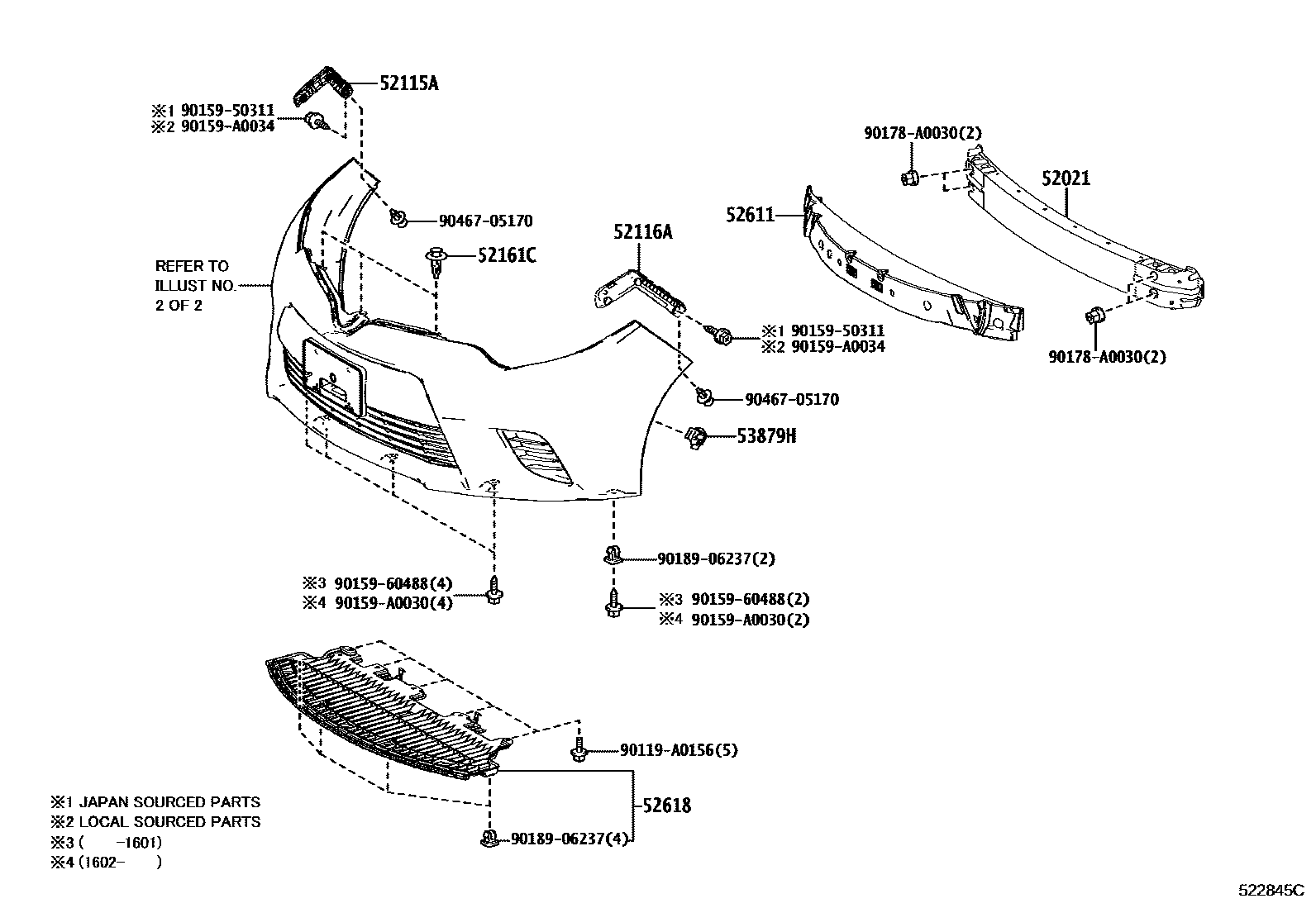

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02240iZRE172..MXC201608

main52021-02300iZRE172..4FC201308-201608

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02240iZRE172..4FC201308-201608

main52115-02350iZRE172201608

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02240iZRE172..4FC201308-201608

main52116-02330iZRE172201608

52161CPIECE, FRONT BUMPER

main52161-02020iZRE172..4FC201308-201608

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02280iZRE172..4FC201308-201608

main52611-02410iZRE172201608

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02060iZRE172..4FC201308-201608

main52618-02130iZRE172201608

53879HRETAINER, FRONT FENDER LINER

main53879-02070iZRE172..CVT,MTM201406-201608

main53879-58010iZRE172201308-201405

90119A0156

main90119-A0156

9015950311

main90159-50311

9015960488

main90159-60488

90159A0030

main90159-A0030

90159A0034

main90159-A0034

90178A0030

main90178-A0030

9018906237

main90189-06237

9046705170

main90467-05170

15 parts on this diagram · 8 diagrams in section
