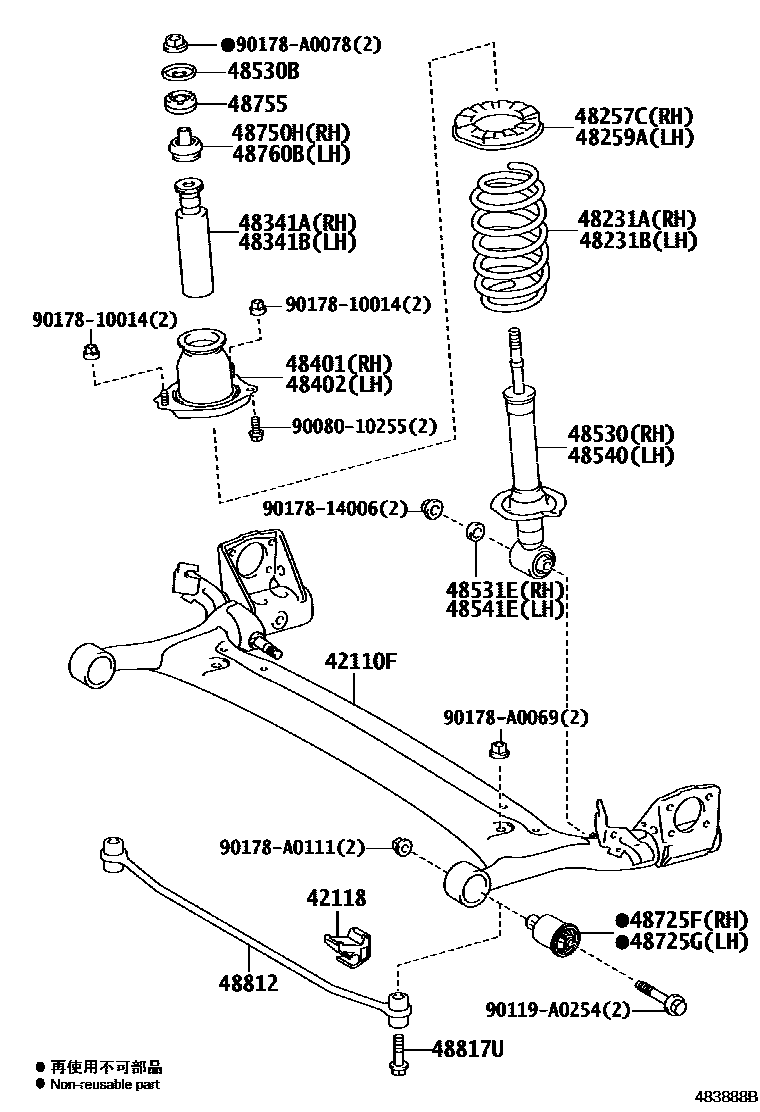

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
42118DAMPER, REAR AXLE BEAM
48231ASPRING, COIL, REAR RH
CHILE SPEC
48231BSPRING, COIL, REAR LH
CHILE SPEC
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-02B70
MARK 48530-02C30
MARK 48530-02C40,CHILE SPEC
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-02B70
MARK 48530-02C30
MARK 48530-02C40,CHILE SPEC
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48812BAR, STABILIZER, REAR
48817UBOLT(FOR REAR STABILIZER)
9008010255
main90080-10255
90119A0254
main90119-A0254
9017810014
main90178-10014
9017814006
main90178-14006
90178A0069
main90178-A0069
90178A0078
main90178-A0078
90178A0111
main90178-A0111
29 parts on this diagram · 2 diagrams in section
