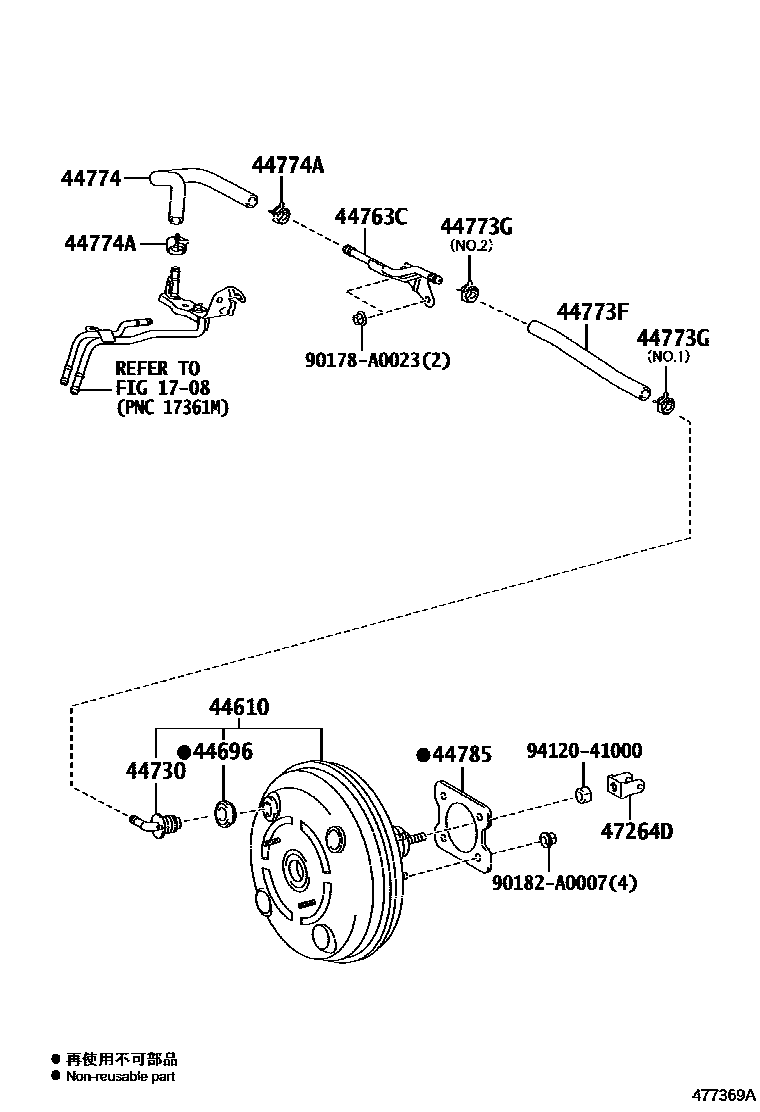

BRAKE BOOSTER & VACUUM TUBE

0001 12ZRFE 0002 12ZRFAE

1708

44610BOOSTER ASSY, BRAKE

main44610-02630iZRE172..(CVT,MTM)..MXC201308-201608

main44610-02630iZRE172..GEN201708

*VSC-WITH(CUT OFF SW)

main44610-02840iZRE172..MXC201608

main44610-02880iZRE172..(CVT,MTM)..STD..MXC201404-201608

MEXICO DECONTENT

main44610-02880iZRE172..GEN201608

main44610-02D10iZRE172..STD..MXC201608-201708

MEXICO DECONTENT

44696GROMMET, CHECK VALVE

main90080-48071iZRE172..4FC201308-201608

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iZRE172..4FC201308-201608

44763CTUBE, HOSE TO HOSE, NO.2

main44763-02090iZRE172..4FC201308-201608

44773FHOSE, UNION TO CHECK VALVE

main44773-02050iZRE172..4FC201308-201608

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iZRE172..MXC201308-201608

NO.1

main96133-41500iZRE172..CVT,MTM201308-201608

NO.2

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02090iZRE172..4FC201308-201608

main44774-02250iZRE172..MXC201608

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iZRE172..MXC201608

main96133-41500iZRE172..CVT,MTM201308-201608

44785GASKET, BRAKE BOOSTER

main44785-02060iZRE172..4FC201308-201608

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02100iZRE172..4FC201308-201608

main47264-02100iZRE172201608-201903

(L)

main47264-02100iZRE172..STD..MXC201608-201708

MEXICO DECONTENT

main47264-63020iZRE172201804-201903

(J)

90178A0023

main90178-A0023

90182A0007

main90182-A0007

9412041000

main94120-41000

14 parts on this diagram · 2 diagrams in section
