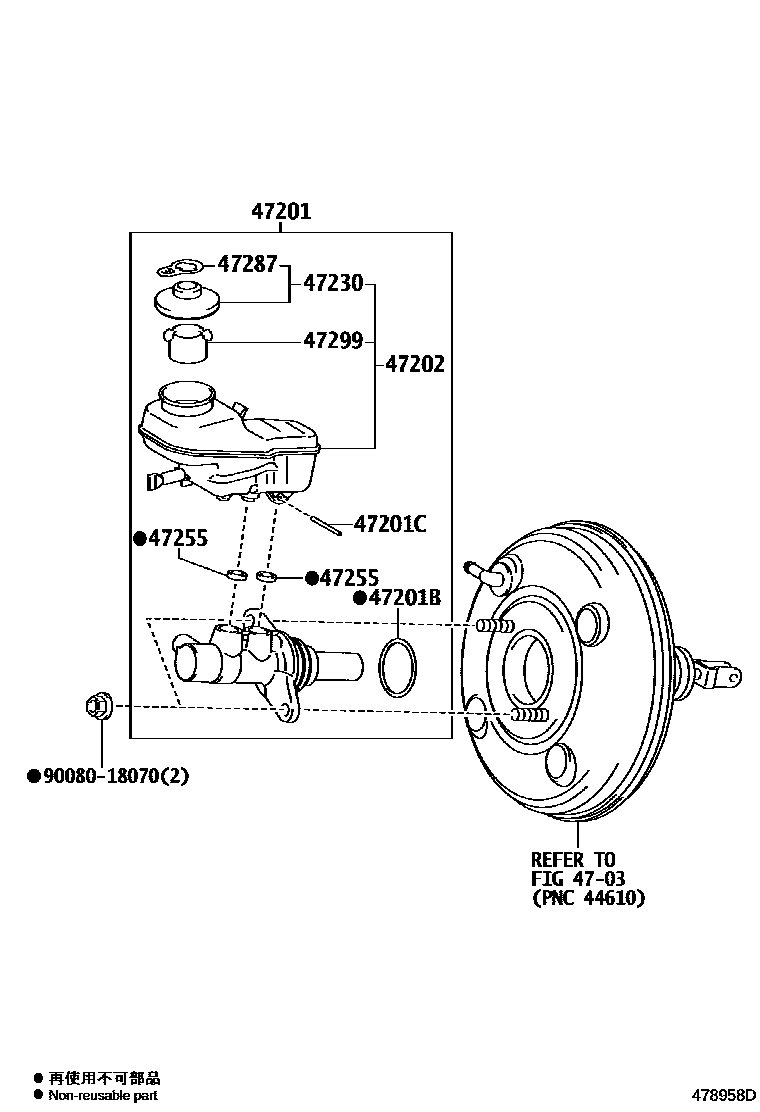

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02660iZRE172..CVT..MXC201308-201608

main47201-02670iZRE172..6F..MXC201308-201608

main47201-02690iZRE172..CVT..STD..MXC201404-201608

MEXICO DECONTENT

main47201-02690iZRE172..CVT..GEN201608

main47201-02700iZRE172..6F..GEN201404-201608

MEXICO DECONTENT

main47201-02700iZRE172..6F..GEN201608

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRE172..4FC201308-201608

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZRE172..4FC201308-201608

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02340iZRE172..CVT..MXC201308-201608

main47220-02350iZRE172..6F..MXC201308-201608

main47220-02360iZRE172..CVT..GEN201404-201608

MEXICO DECONTENT

main47220-02360iZRE172..CVT..GEN201608

main47220-02370iZRE172..6F..GEN201608

main47220-02370iZRE172..6F..GEN201404-201608

MEXICO DECONTENT

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iZRE172..4FC201308-201508

sub47230-01031

main47230-01031iZRE172..MXC201508-201608

main47230-02270iZRE172..(CVT,MTM)..STD..MXC201404-201608

MEXICO DECONTENT

sub47230-02271

main47230-02271iZRE172..GEN201608

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iZRE172..CVT,MTM201308-201608

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iZRE172..GEN201608

main47287-20010iZRE172..GEN201404-201608

MEXICO DECONTENT

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iZRE172..4FC201308-201608

9008018070

main90080-18070

10 parts on this diagram · 1 diagram in section
