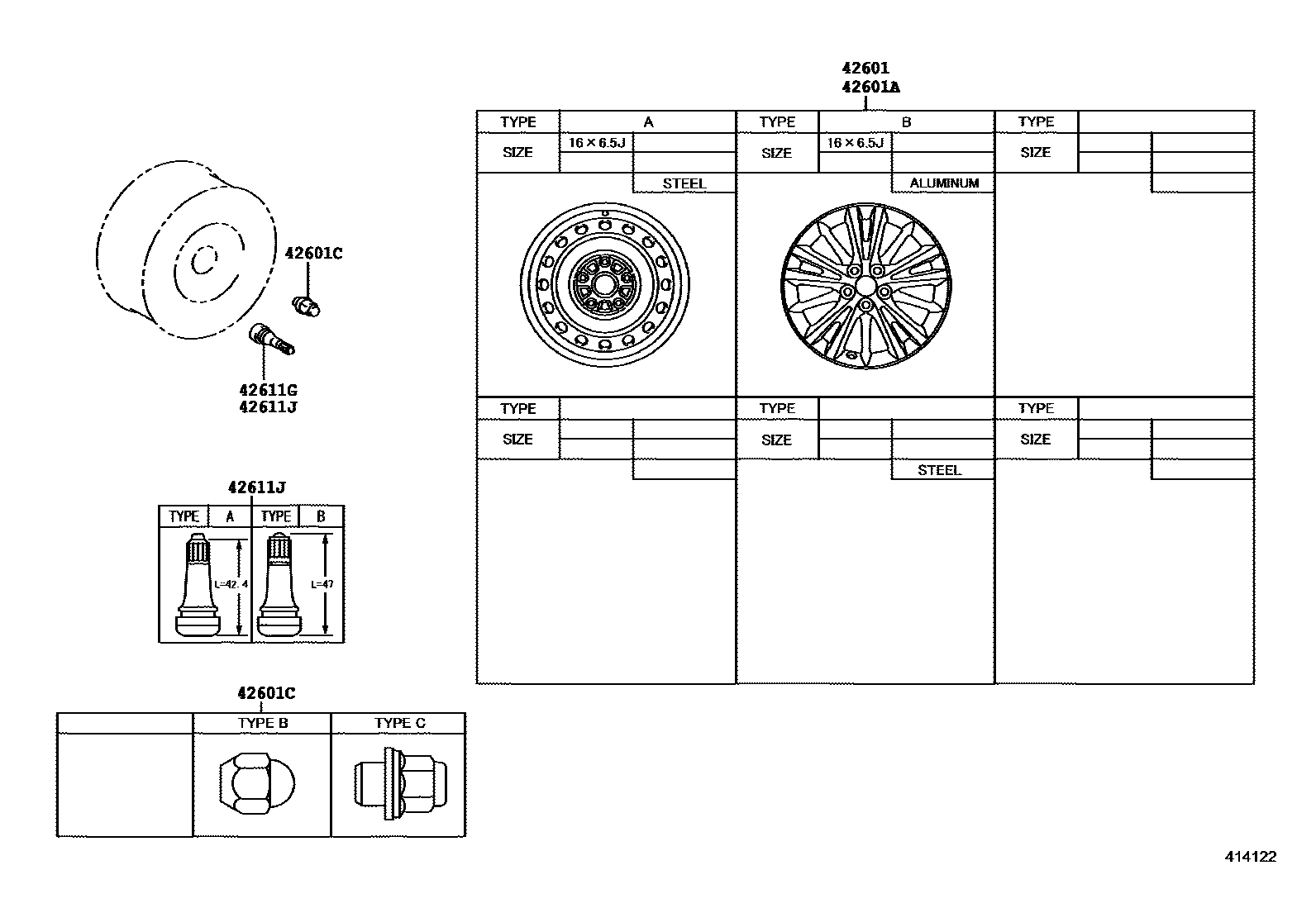

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5J,#,TYPE A:REFER ILLUST.
16X6.5J,#,TYPE B:REFER ILLUST.
16X6.5J,#,PLUS1 PACKAGE,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,PLUS2 PACKAGE,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE B:REFER ILLUST.
sub42611-02G31
16X6.5J,#,TIRE & DISK WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE B:REFER ILLUST.
sub42611-02G31
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE E:REFER ILLUST.
16X6.5J,#,TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
PLUS1 PACKAGE&TIRE & DISK WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE C:REFER ILLUST.
sub90942-A1009
PLUS2 PACKAGE&TIRE & DISK WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE C:REFER ILLUST.
sub90942-A1009
TIRE & DISK WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE C:REFER ILLUST.
sub90942-A1009
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
MEXICO DECONTENT
TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE B:REFER ILLUST.
5 parts on this diagram · 4 diagrams in section
