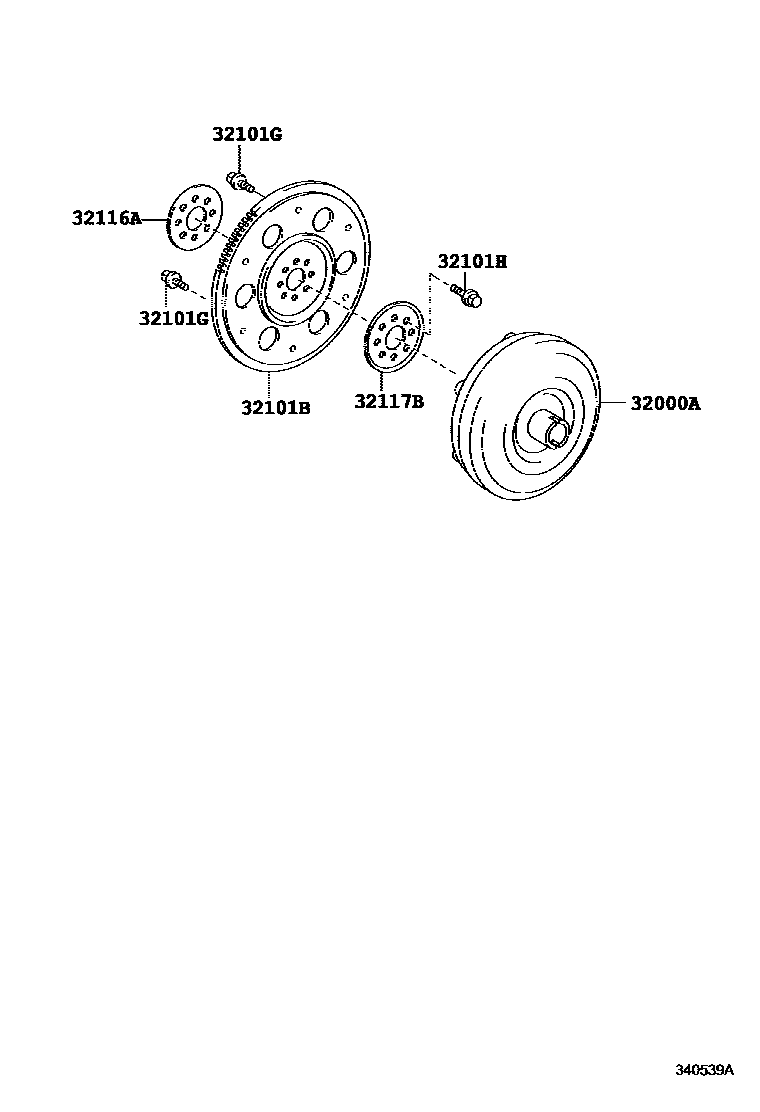

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12490iZRE172..CVT¥72,300201404-201903

AISIN AW:REFER 34-01

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-02040iZRE172..CVT201404-201608

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE172..CVT¥80201404-201608

*8-1.25PX12-8.4,BLACK

main90119-08498iZRE172..CVT¥80201404-201608

*8-1.25PX12-8,YELLOW

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRE172..CVT¥130201404-201608

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE172..CVT¥610201404-201608

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE172..CVT¥800201404-201608

6 parts on this diagram · 1 diagram in section
