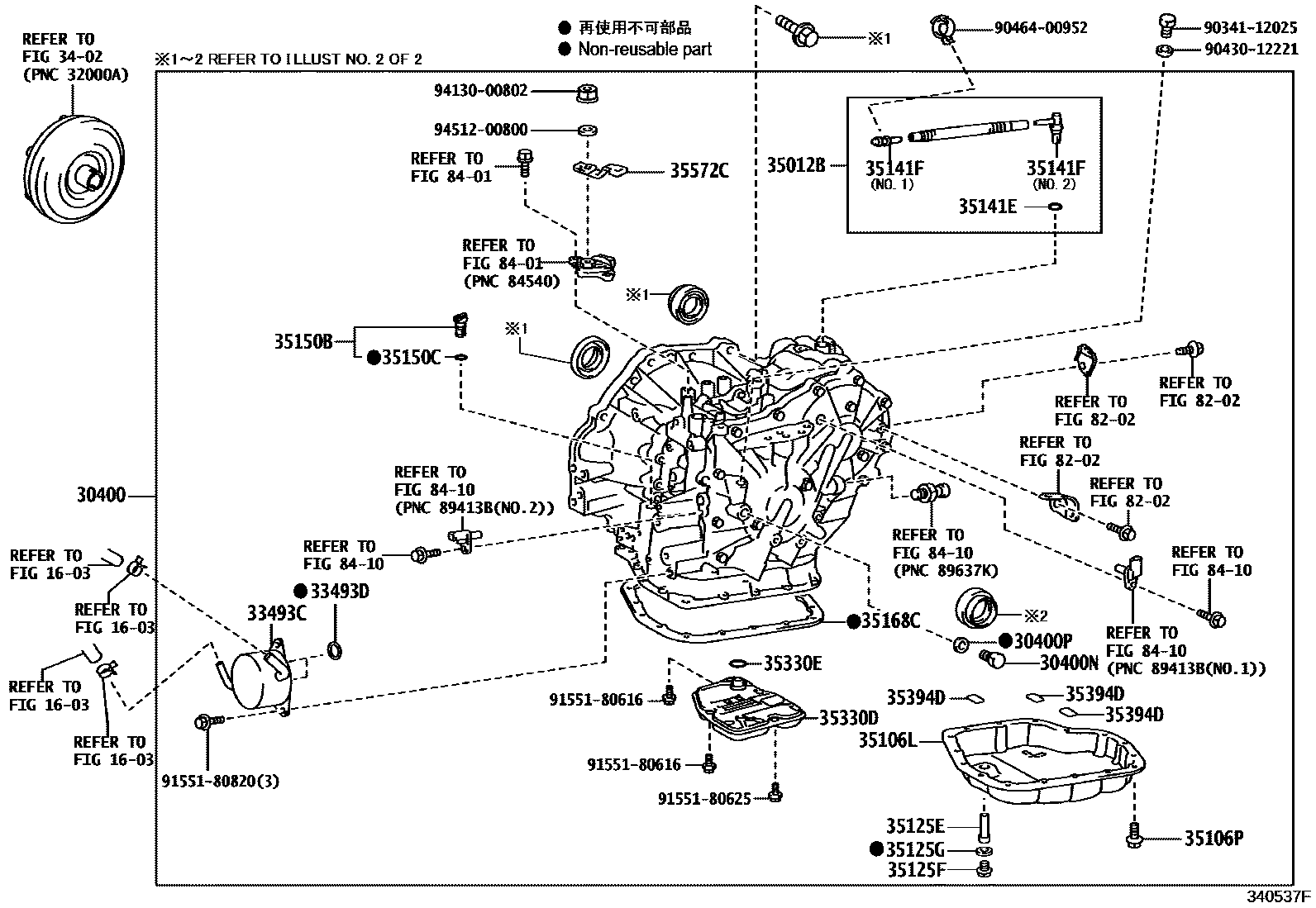

TRANSAXLE ASSY(CVT)
1603
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
33493DRING, O (FOR TRANSMISSION OIL COOLER)
3402
35012BHOSE SUB-ASSY, TRANSMISSION BREATHER
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
AISIN AW
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
NO.2
NO.1
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
8202
8401
8410
9034112025
main90341-12025
9043012221
main90430-12221
9046400952
main90464-00952
9155180616
main91551-80616
9155180625
main91551-80625
9155180820
main91551-80820
9413000802
main94130-00802
9451200800
main94512-00800
33 parts on this diagram · 2 diagrams in section
