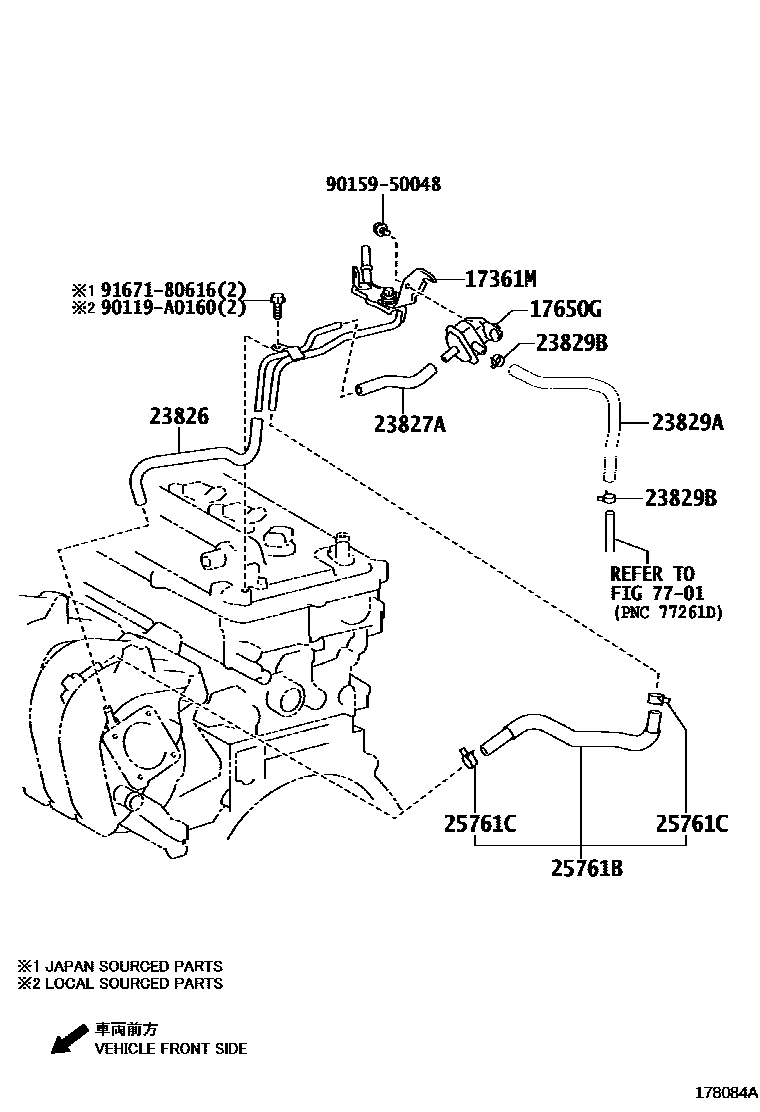

VACUUM PIPING

0001 1 0002 1 0003 1

17361MTUBE, AIR

main17361-37070i2ZRFE..ZRE172..GEN201404-201608

main17361-37100i2ZRFE..ZRE172..4FC201308-201608

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i2ZRFE..ZRE172..GEN201404-201608

main90910-12283i2ZRFE..ZRE172..(CVT,MTM)..MXC201308-201608

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0T160i2ZRFAE..ZRE172201608

main23826-0T190i2ZRFE..ZRE172201404-201608

NO.2

main23826-0T280i2ZRFE..ZRE172..MXC201507-201608

(L)

main23826-37021i2ZRFE..ZRE172..MXC201507-201608

(J)

main23826-37021i2ZRFE..ZRE172..(CVT,MTM)..MXC201308-201507

main23826-37190i2ZRFE..ZRE172..GEN201404-201608

NO.1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37060i2ZRFE..ZRE172..GEN201404-201608

main23827-37080i2ZRFE..ZRE172..4FC201308-201608

23829AHOSE, FUEL VAPOR FEED

main23826-0T150i2ZRFE..ZRE172..4FC201308-201608

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41901i2ZRFE..ZRE172..4FC201308-201608

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-37011i2ZRFE..ZRE172..MXC201308-201608

main25761-37080i2ZRFE..ZRE172..GEN201404-201608

25761CCLIP(VACCUM TRANSMITTING HOSE NO.1)

main96133-41500i2ZRFE..ZRE172201308-201608

7701

90119A0160

main90119-A0160

9015950048

main90159-50048

9167180616

main91671-80616

12 parts on this diagram · 3 diagrams in section
