WATER PUMP

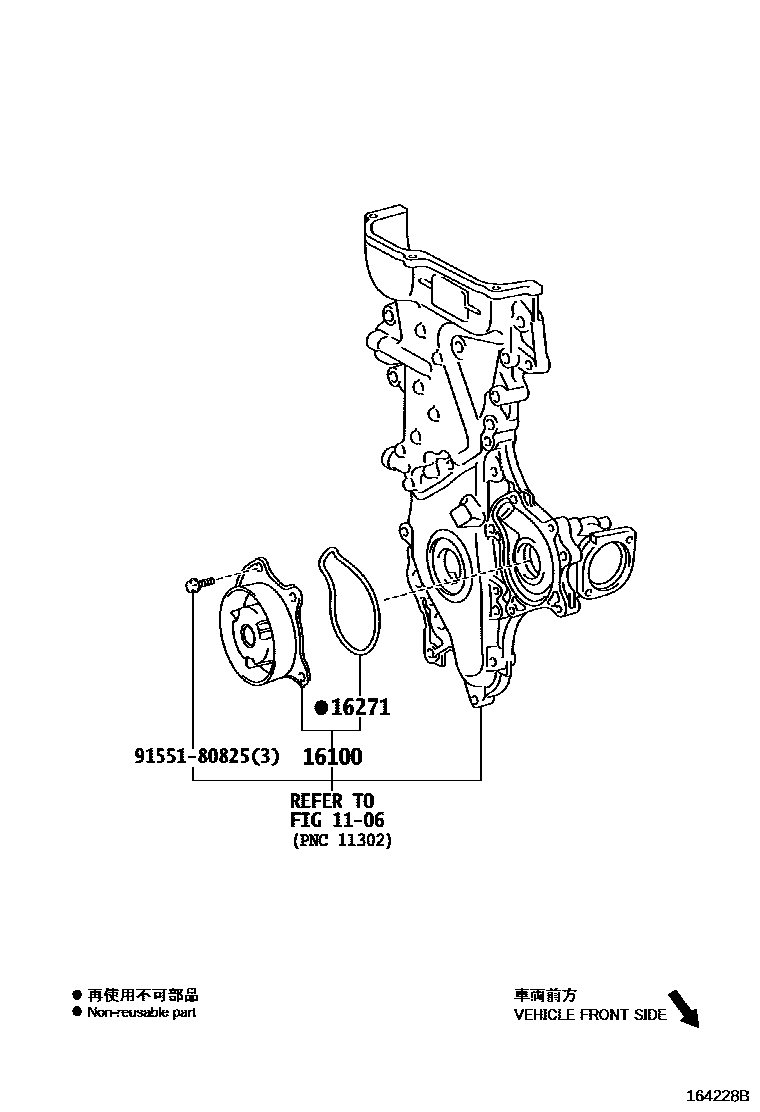

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main16100-09560i201308-201608

(L)

main16100-09620i201608

(L)

main16100-39466i201308-201608

(J)

main16100-39565i201608

(J)

16271GASKET, WATER PUMP

main16271-37010i201308-201608

main16271-37030i201608

9155180825

main91551-80825

4 parts on this diagram · 2 diagrams in section
