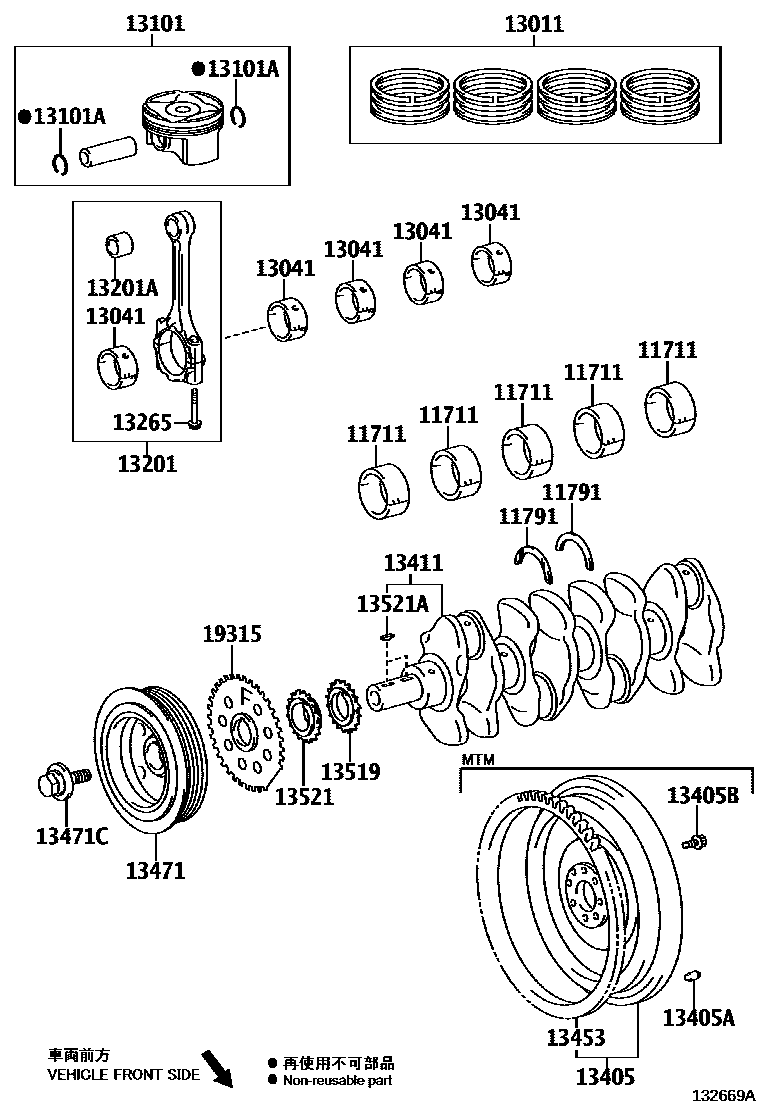

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(L)
STD,(J)
13011RING SET, PISTON
STD,(L)
STD
STD
STD,(L)
STD,(L)
STD,(L)
STD,(L)
STD,(J)
STD,(J)
STD,(J)
13041BEARING, CONNECTING ROD
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
(L)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
(J)
(L)
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
(L)
(J)
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
(L)
(J)
