NAVIGATION & FRONT MONITOR DISPLAY

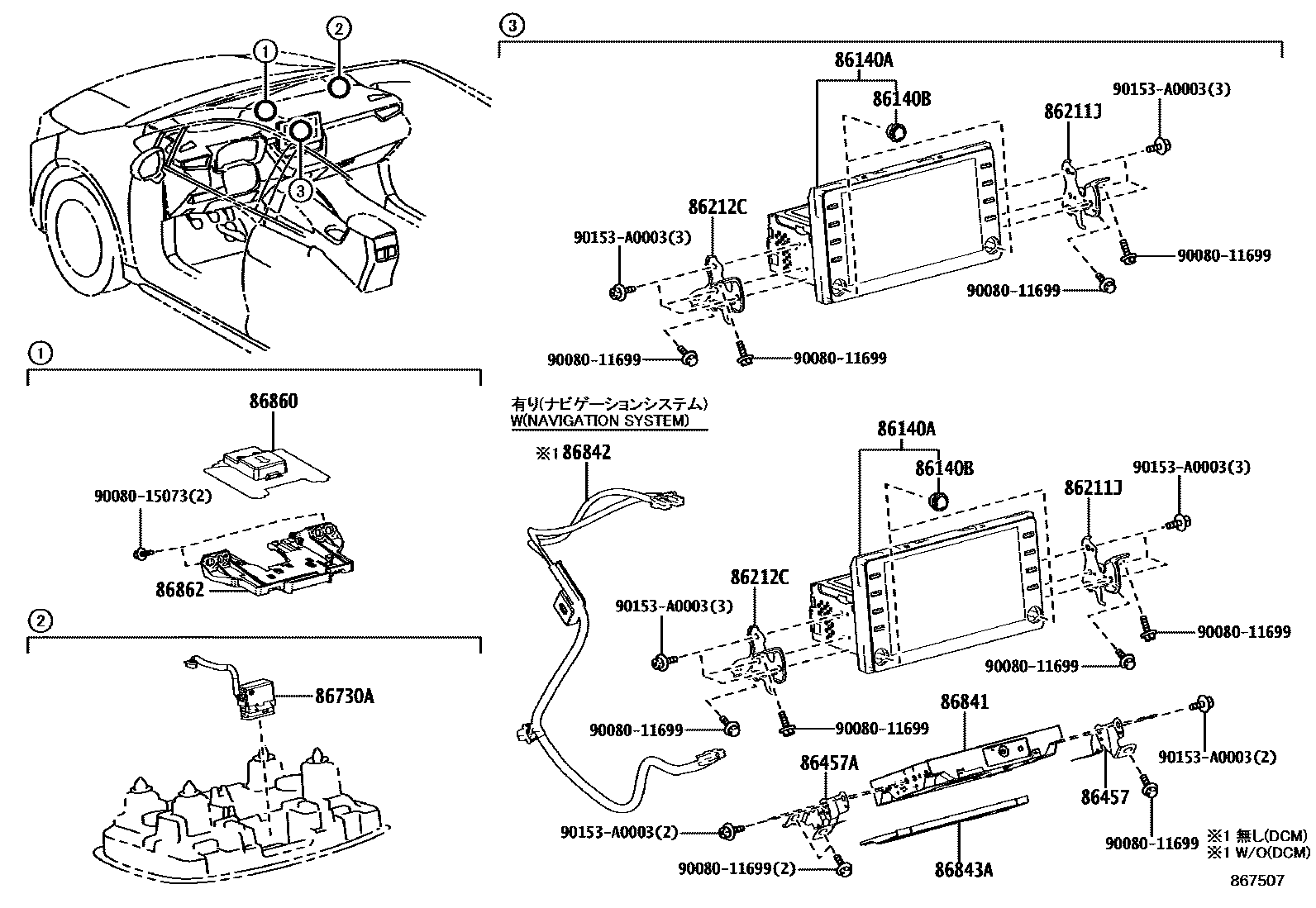

Parts diagram
86140ARECEIVER ASSY, RADIO & DISPLAY
main86140-02B60i201903-202007
PIONEER
main86140-02B90i202211-202410
DENSO TEN
main86140-02E90i202007-202106
PIONEER
main86140-02E91i202107-202211
PIONEER
main86140-02770supersedes 86140-02R10i201903-202007
PIONEER,AUDIO-8INCH 6SPEAKER
main86140-02E10supersedes 86140-02R10i202007-202211
PIONEER,AUDIO-8INCH 6SPEAKER
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
main90010-22128×2i202007-202107
main90010-22129×2i201903-202007
main90010-22138×2i202107-202211
main90011-23051i202410-202412
86211JBRACKET, RADIO RECEIVER, NO.1
main86211-02540i202410
86212CBRACKET, RADIO RECEIVER, NO.2
main86212-02540i202211-202410
86457BRACKET, MULTI-MEDIA MODULE NO.1
main86457-02030i202007-202211
AUDIO-8INCH 6SPEAKER
86457ABRACKET, MULTI-MEDIA MODULE NO.2
main86457-02040i201903-202007
AUDIO-8INCH 6SPEAKER
86730AMICROPHONE ASSY, TELEPHONE
main86730-0C020×2i202211-202410
main86730-12081i201903-202007
86841COMPUTER, NAVIGATION
main86840-0E081i202007-202008
AUDIO-8INCH 6SPEAKER
main86840-0E082i202009-202101
AUDIO-8INCH 6SPEAKER
main86840-0E083i202102-202108
AUDIO-8INCH 6SPEAKER
main86840-0E084i202109-202202
AUDIO-8INCH 6SPEAKER
main86840-0E085i202203-202208
AUDIO-8INCH 6SPEAKER
main86840-0E086i202209-202211
AUDIO-8INCH 6SPEAKER
sub86840-0E087
main86840-0R011i201903-201907
AUDIO-8INCH 6SPEAKER
main86840-0R012i201908-202007
AUDIO-8INCH 6SPEAKER
sub86840-0R013
86842WIRE, NAVIGATION, NO.1
main86842-02010i201903-202007
AUDIO-8INCH 6SPEAKER
86843ACOVER, NAVIGATION COMPUTER
main86843-02020i201903-202007
AUDIO-8INCH 6SPEAKER
86860ANTENNA ASSY, NAVIGATION
main86860-06100i201903-202007
86862BRACKET, NAVIGATION ANTENNA
main86862-42010i202410
main86862-58020i201903-201912
9008011699
main90080-11699
9008015073
main90080-15073
90153A0003
main90153-A0003

15 parts on this diagram · 2 diagrams in section
