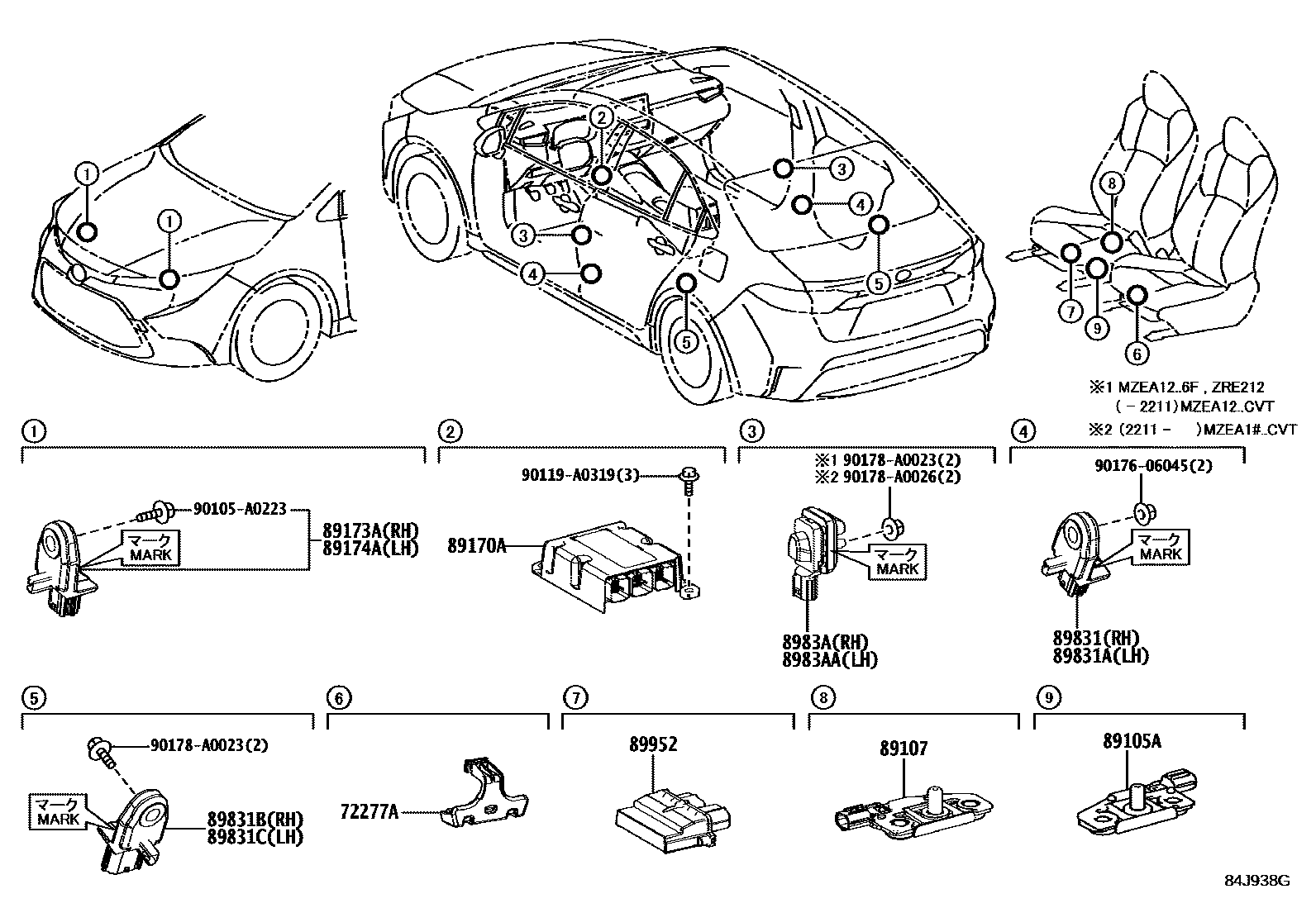

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89105ASENSOR SUB-ASSY, WEIGHT DETECTOR, FRONT INNER
89107SENSOR SUB-ASSY, WEIGHT DETECTOR, REAR INNER
89170ACOMPUTER ASSY, AIRBAG
*614
*614
89173ASENSOR, AIRBAG, FRONT RH
MARK=66
MARK=K4
MARK=J5
89174ASENSOR, AIRBAG, FRONT LH
MARK=K4
MARK=J5
89831SENSOR, SIDE AIRBAG, RH, NO.1
MARK=68
MARK=K6
MARK=J9
89831ASENSOR, SIDE AIRBAG, LH, NO.1
MARK=K6
MARK=J9
89831BSENSOR, SIDE AIRBAG, RH, NO.2
MARK=69
(L),MARK=J7
(J),MARK=J7
89831CSENSOR, SIDE AIRBAG, LH, NO.2
MARK=69
(L),MARK=J7
(J),MARK=J7
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
MARK=ZB
MARK=DA
MARK=DA
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
MARK=DA
MARK=DA
89952COMPUTER, OCCUPANT DETECTION
90105A0223
main90105-A0223
90119A0319
main90119-A0319
9017606045
main90176-06045
90178A0023
main90178-A0023
90178A0026
main90178-A0026
18 parts on this diagram · 1 diagram in section
