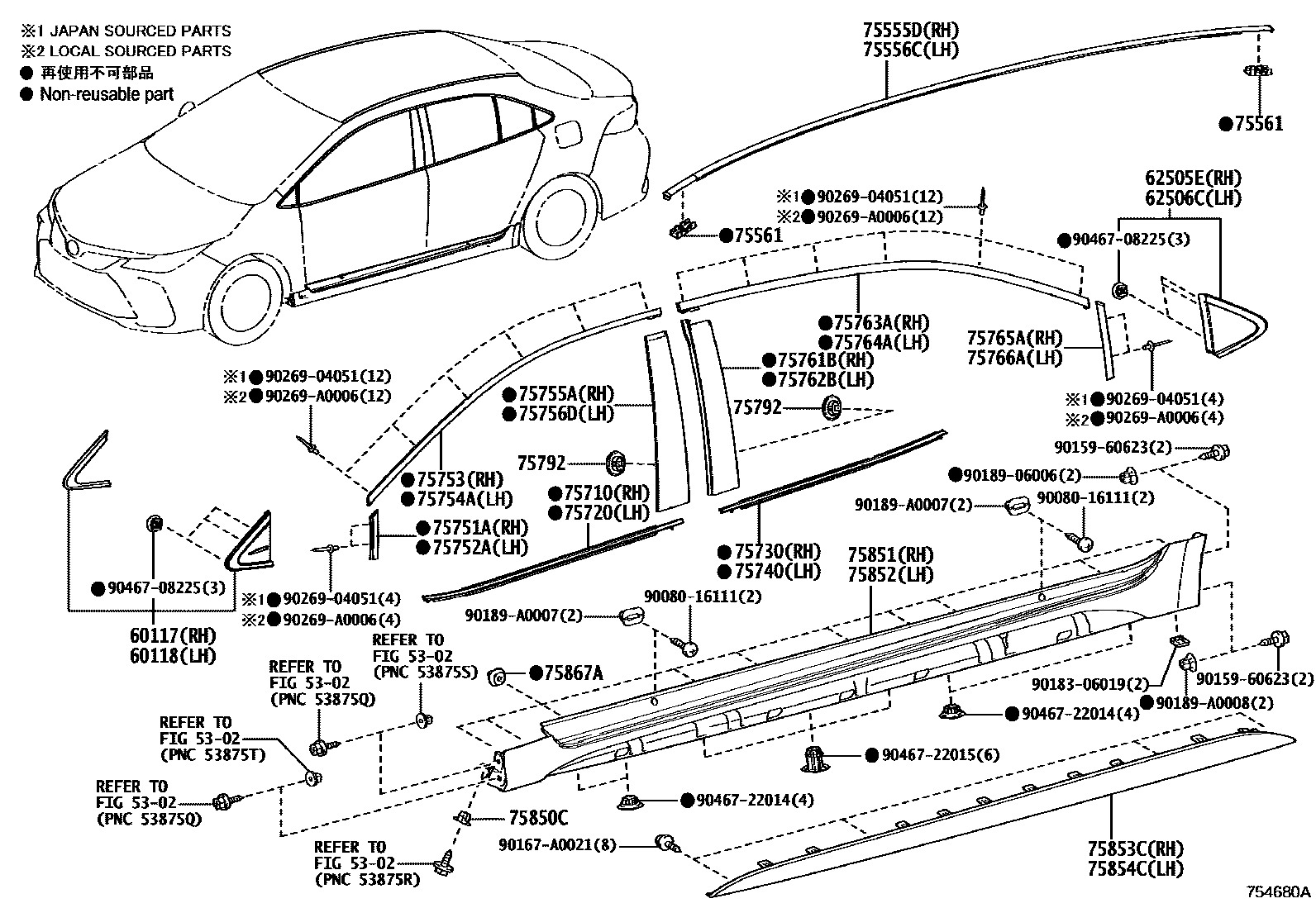

SIDE MOULDING
5302
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)
75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75792CLIP, DOOR WINDOW FRAME MOULDING
(L)
(J)
75850CGROMMET, NO.1
75851MOULDING, ROCKER PANEL, RH
PAINT REQ.
PAINT REQ.
75852MOULDING, ROCKER PANEL, LH
75853CMOULDING, ROCKER PANEL, LOWER RH
75854CMOULDING, ROCKER PANEL, LOWER LH
75867ACLIP, ROCKER PANEL MOULDING
9008016111
main90080-16111
9015960623
main90159-60623
90167A0021
main90167-A0021
9018306019
main90183-06019
9018906006
main90189-06006
90189A0007
main90189-A0007
90189A0008
main90189-A0008
9026904051
main90269-04051
90269A0006
main90269-A0006
9046708225
main90467-08225
9046722014
main90467-22014
9046722015
main90467-22015
43 parts on this diagram · 2 diagrams in section
