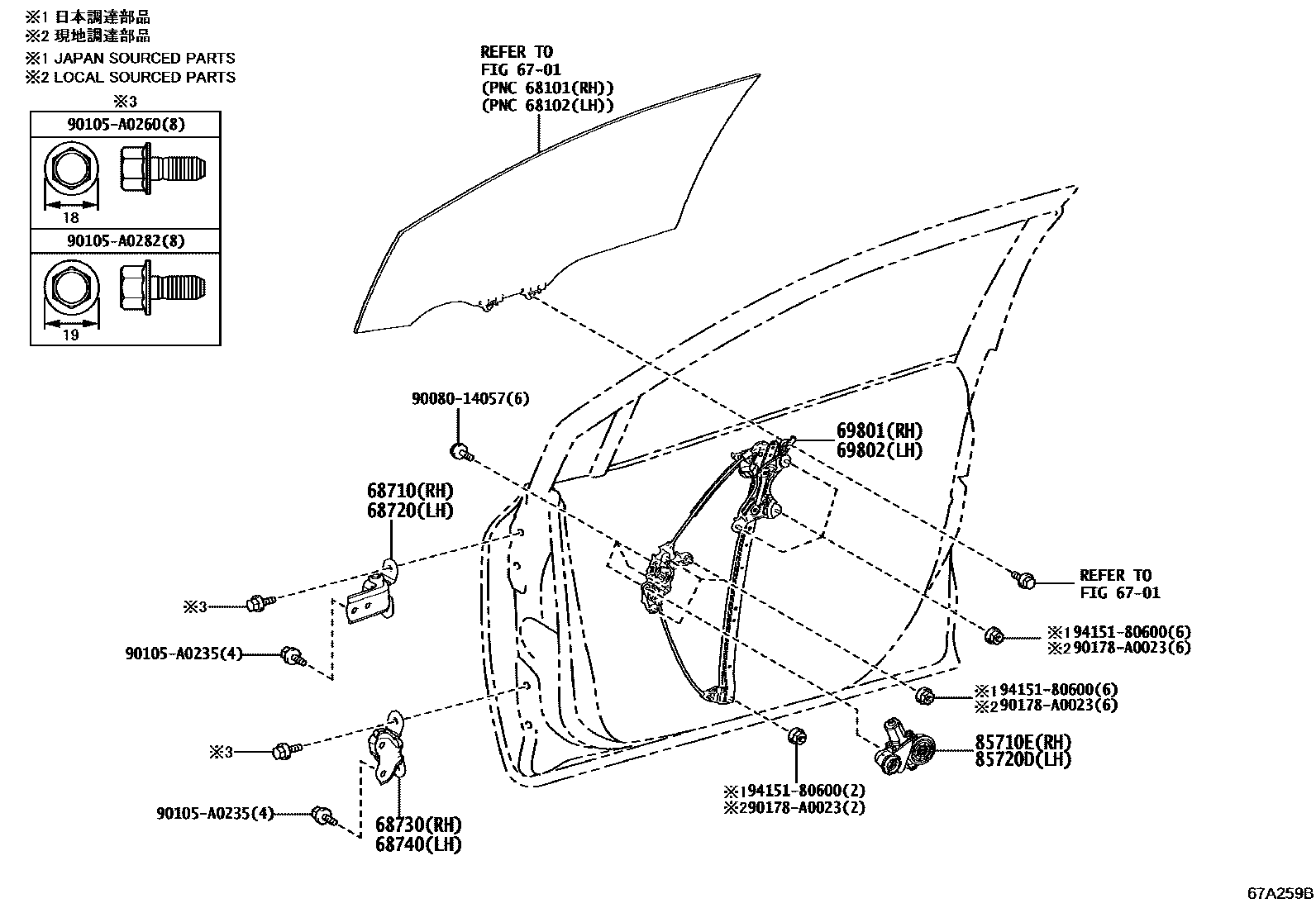

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iMZEA1#201903-202410

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iMZEA1#201903-202410

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iMZEA1#201903-202410

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iMZEA1#201903-202410

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02400iMZEA12,ZRE212201903-202012

main69801-02401iMZEA12..6F202101-202308

main69801-02402iMZEA1#202108-202410

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02410iMZEA12,ZRE212201903-202012

main69802-02411iZRE212;MZEA12..CVT202101-202308

main69802-02412iMZEA1#202108-202410

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0R010iMZEA12,ZRE212201903-202211

main85710-0R011iMZEA1#202211-202410

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0R070iZRE212;MZEA12..CVT201903-202211

main85720-0R071iMZEA1#202211-202410

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90105A0282

main90105-A0282

90178A0023

main90178-A0023

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
