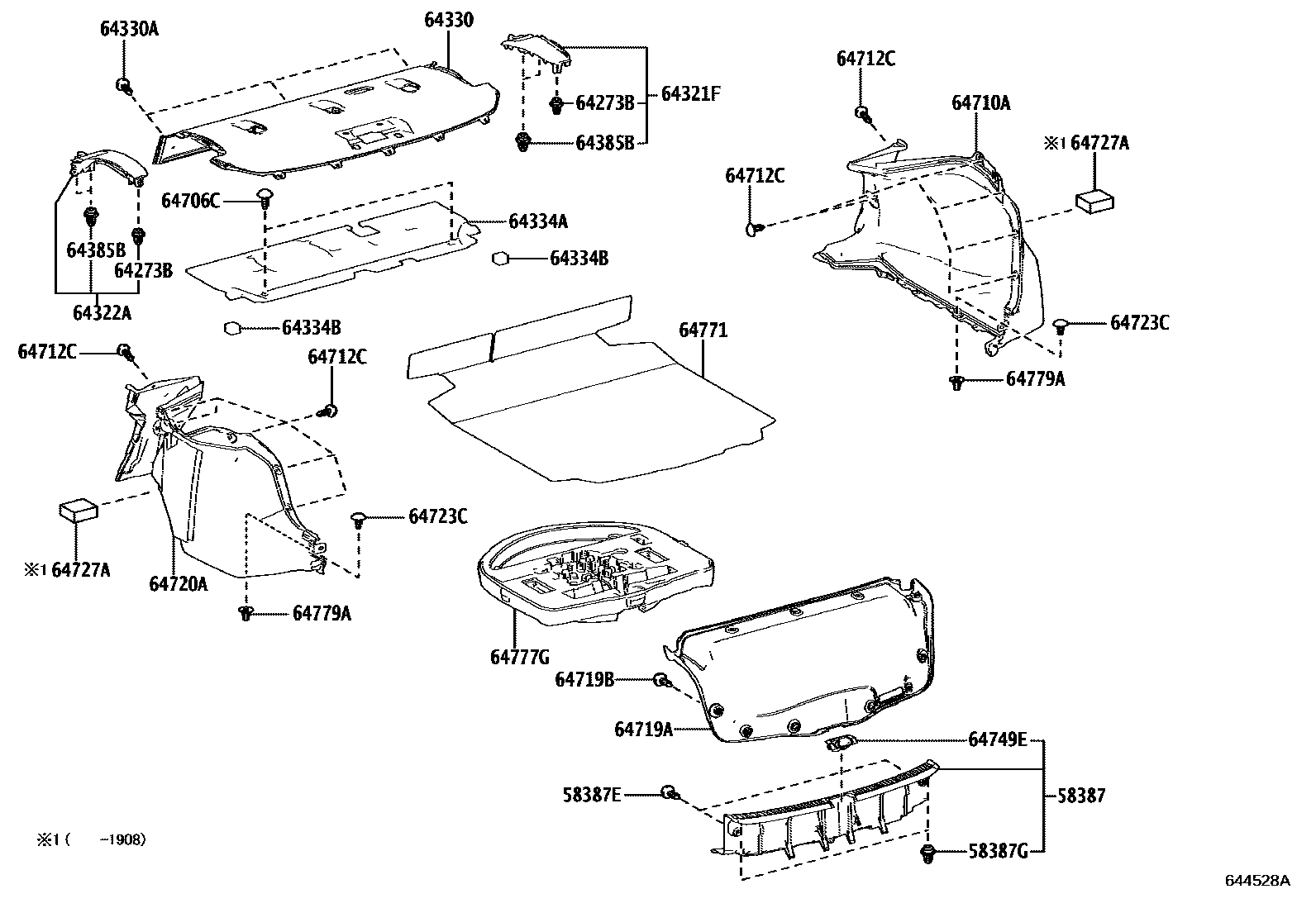

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
64273BCLIP
64321FBRACKET, PACKAGE TRAY TRIM, RH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
64322ABRACKET, PACKAGE TRAY TRIM, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64334APAD, PACKAGE TRAY TRIM
64334BPAD, PACKAGE TRAY TRIM, NO.2
64385BCLIP
64706CCLIP
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
64771COVER, SPARE WHEEL
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
64777GCUSHION, SPARE WHEEL
64779ASTOPPER, SPARE WHEEL COVER
23 parts on this diagram · 1 diagram in section
