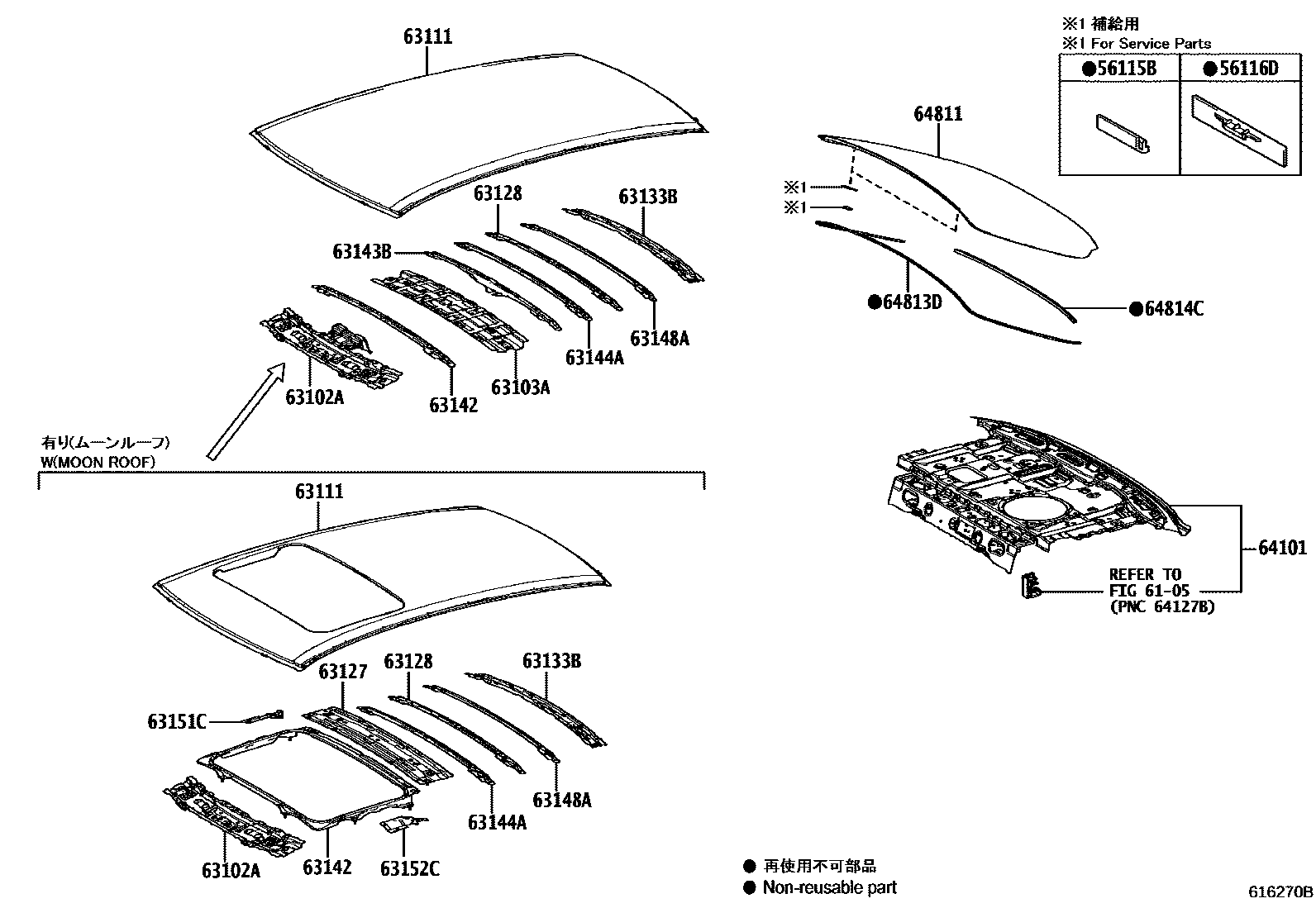

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iMZEA1#201903-202410

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iMZEA1#201903-202410

6105

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02440iMZEA18201903-202410

main63102-02450iMZEA12202211-202410

MOON ROOF-WITH

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-02110iMZEA12,ZRE212201903-202410

63111PANEL, ROOF

main63111-02620iMZEA12,ZRE212201903-202410

main63111-02630iMZEA12202211-202410

MOON ROOF-WITH

63127REINFORCEMENT, ROOF PANEL, NO.5

main63107-02010iMZEA12202211-202410

MOON ROOF-WITH

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-02050iMZEA1#201903-202410

63133BFRAME, BACK WINDOW

main63133-02210iZRE212;MZEA12..CVT201903-202410

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-02120iMZEA18201903-202410

main63142-02130iMZEA12202211-202410

MOON ROOF-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-02210iMZEA18201903-202410

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-02140iMZEA1#201903-202410

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-02110iMZEA1#201903-202410

63151CFRAME, ROOF OPENING SIDE, RH

main63151-02010iMZEA12202211-202410

MOON ROOF-WITH

63152CFRAME, ROOF OPENING SIDE, LH

main63152-02010iMZEA18..L202211-202410

MOON ROOF-WITH

64101PANEL SUB-ASSY, UPPER BACK

main64101-02580iMZEA1#201903-202410

64811GLASS, BACK WINDOW

main64801-02280iMZEA1#201903-202410

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-02240iMZEA1#201903-202410

64814CDAM, BACK WINDOW GLASS ADHESIVE, LOWER

main64813-02400iMZEA1#201903-202410

19 parts on this diagram · 2 diagrams in section
