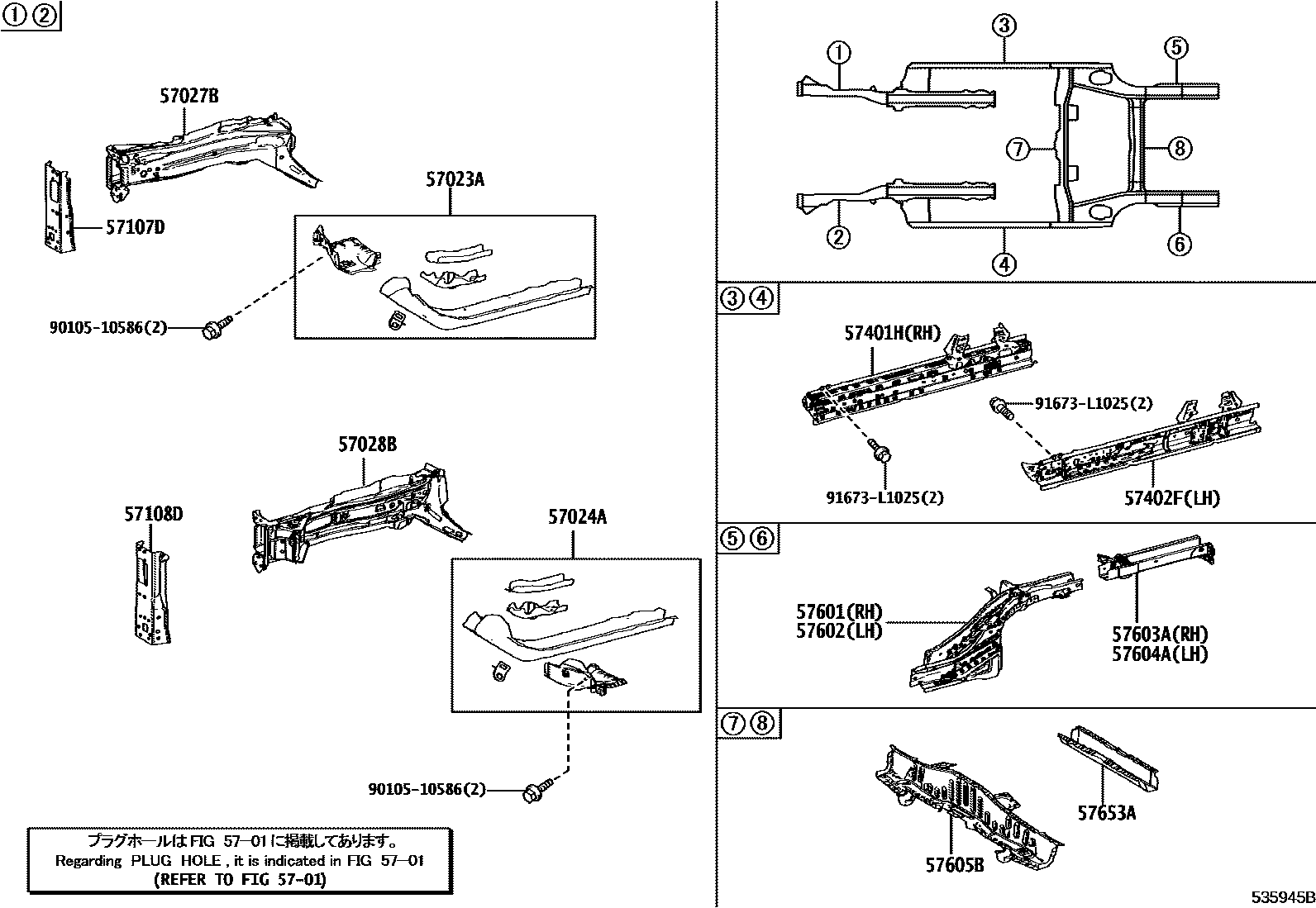

FLOOR SIDE MEMBER

0001 1 0002 1

5701

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-02070iMZEA12,ZRE212201903-202002

sub57023-02071

sub51093-02010

main57023-02071iMZEA12,ZRE212202002-202410

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-02080iMZEA12,ZRE212201903-202002

sub57024-02081

sub51094-02010

main57024-02081iMZEA1#202002-202410

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02030iMZEA1#201906-202410

main57027-02900iMZEA12,ZRE212201903-201906

sub57027-02030

sub57025-02050

sub57203-02010

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02050iMZEA1#201906-202410

main57028-02900iMZEA12,ZRE212201903-201906

sub57028-02050

sub57026-02070

sub57204-02010

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-02080iMZEA1#201903-202410

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-02080iMZEA12,ZRE212201903-202410

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-02320iMZEA1#201903-202410

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-02340iMZEA1#201903-202410

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02490iZRE212;MZEA12..CVT201903-202410

main57601-02570iMZEA18202211-202410

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02460iMZEA12,ZRE212201903-202410

main57602-02670iMZEA18202211-202410

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-02180iMZEA12201903-202410

main57603-02290iMZEA18202211-202410

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-02080iMZEA12,ZRE212201903-202410

main57604-02190iMZEA18202211-202410

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02290iMZEA12..6F201903-202211

main57605-02291iMZEA12202211-202410

main57605-02411iMZEA18202211-202410

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57606-02360iMZEA18202211-202410

main57653-02170iMZEA12,ZRE212201903-202410

9010510586

main90105-10586

91673L1025

main91673-L1025

17 parts on this diagram · 2 diagrams in section
