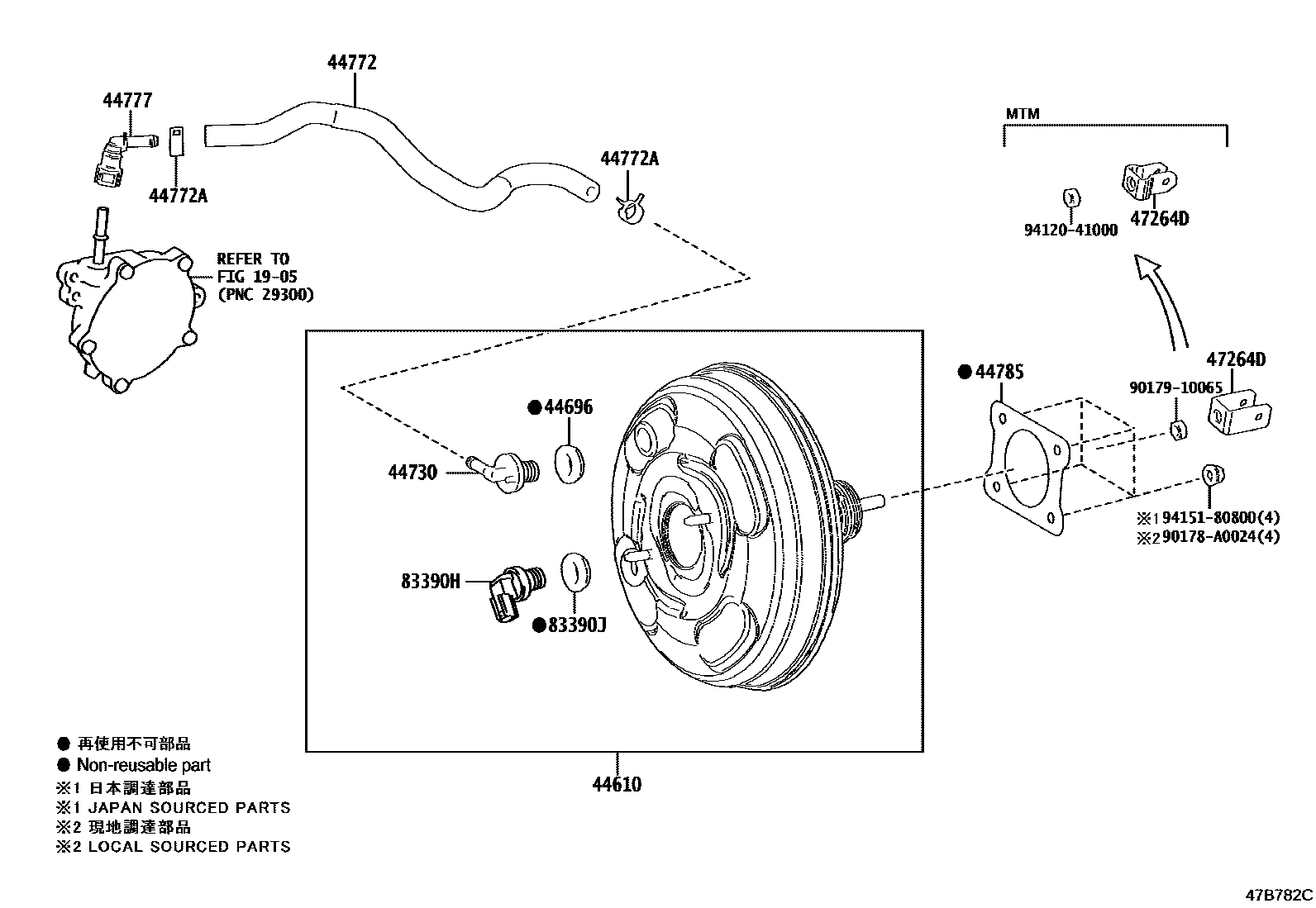

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-02E50iMZEA12..6F201903-202410

44696GROMMET, CHECK VALVE

main90080-48071iMZEA1#201903-202410

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iZRE212;MZEA12..CVT¥1,300201903-202410

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02160iMZEA1#201903-202410

main44772-02170iZRE212201903-202211

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMZEA1#¥230201903-202410

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZEA12..6F¥390201903-202410

44785GASKET, BRAKE BOOSTER

main44785-02060iMZEA1#201903-202410

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02100iMZEA12..6F201903-202211

(L)

main47264-02170iMZEA12,ZRE212..CVT201903-201912

sub47264-52060

main47264-52060iMZEA12,ZRE212..CVT202001-202410

main47264-63020iMZEA12,ZRE212..6F¥260201903-202211

(J)

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZEA1#¥3,780201903-202410

83390JGROMMET, VACUUM WARNING SWITCH

main90080-48071iMZEA1#201903-202410

90178A0024

main90178-A0024

9017910065

main90179-10065¥90

9412041000

main94120-41000¥80

9415180800

main94151-80800¥80

15 parts on this diagram · 2 diagrams in section
