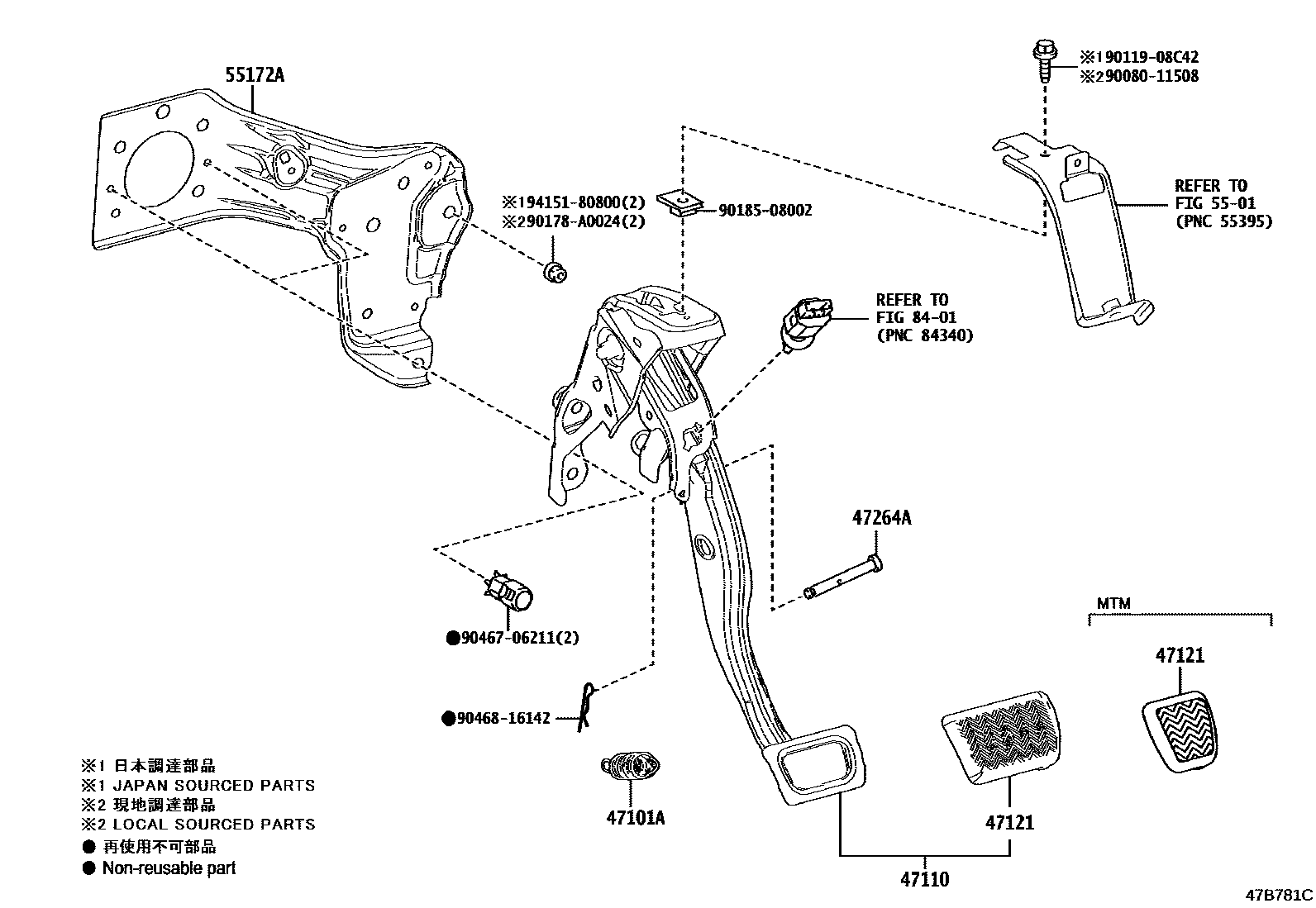

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iMZEA12,ZRE212201903-202410

47110SUPPORT ASSY, BRAKE PEDAL

main47110-02750iMZEA12,ZRE212..CVT201903-202407

sub47110-02751

main47110-02751iMZEA1#202408-202410

main47110-02760iMZEA12..6F201903-202211

47121PAD, BRAKE PEDAL

main47121-12040iMZEA12..6F201903-202211

main47121-16020iMZEA1#202408-202410

main47121-47010iMZEA1#201903-202408

47264APIN(FOR PUSH ROD)

main90249-08221iMZEA12..6F201903-202211

main90249-08309iMZEA1#201903-202410

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-02090iMZEA1#201911-202410

(L)

main55172-02090iMZEA12,ZRE212201903-201911

main55172-12160iZRE212;MZEA12..CVT201911-202411

(J)

main55172-12161iMZEA1#202411

(J)

8401

9008011508

main90080-11508

9011908C42

main90119-08C42

90178A0024

main90178-A0024

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
