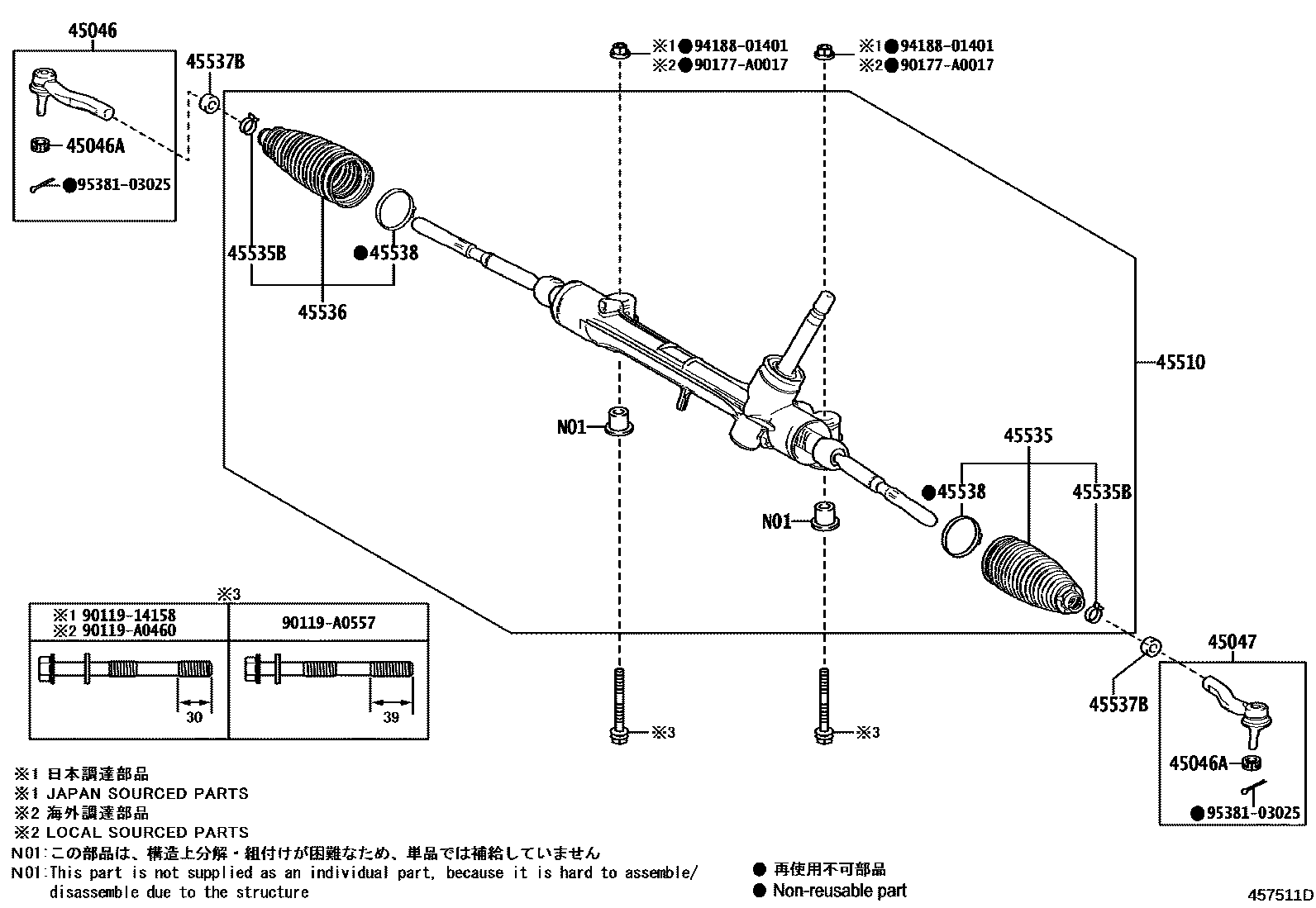

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09A00iMZEA12,ZRE212201903-202410

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220iMZEA1#201903-202410

45047END SUB-ASSY, TIE ROD, LH

main45047-09430iMZEA12..6F201903-202410

45510GEAR ASSY, STEERING

main45510-02360iMZEA12201903-202007

TIRE&DISC WHEEL-225/45R17 ALUMINUM WHEEL ROUGH ROAD SPEC

main45510-02360iMZEA12..CVT202007-202211

TIRE&DISC WHEEL-225/45R17 ALMINUM WHEEL ROUGH ROAD SPEC

main45510-02360iMZEA12202211-202410

main45510-02370iMZEA18201903-202410

45535BOOT, STEERING RACK, NO.1

main45535-02070iMZEA1#202410

main45535-09540iMZEA12,ZRE212201903-202410

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020iMZEA1#201903-202410

45536BOOT, STEERING RACK, NO.2

main45535-09540iMZEA1#201903-202410

45537BNUT, RACK END LOCK

main90178-A0013iMZEA1#201903-202410

45538RETAINER, STEERING RACK BOOT

main45538-0T010iMZEA1#201903-202410

9011914158

main90119-14158

90119A0460

main90119-A0460

90119A0557

main90119-A0557

90177A0017

main90177-A0017

9418801401

main94188-01401

9538103025

main95381-03025

15 parts on this diagram · 1 diagram in section
