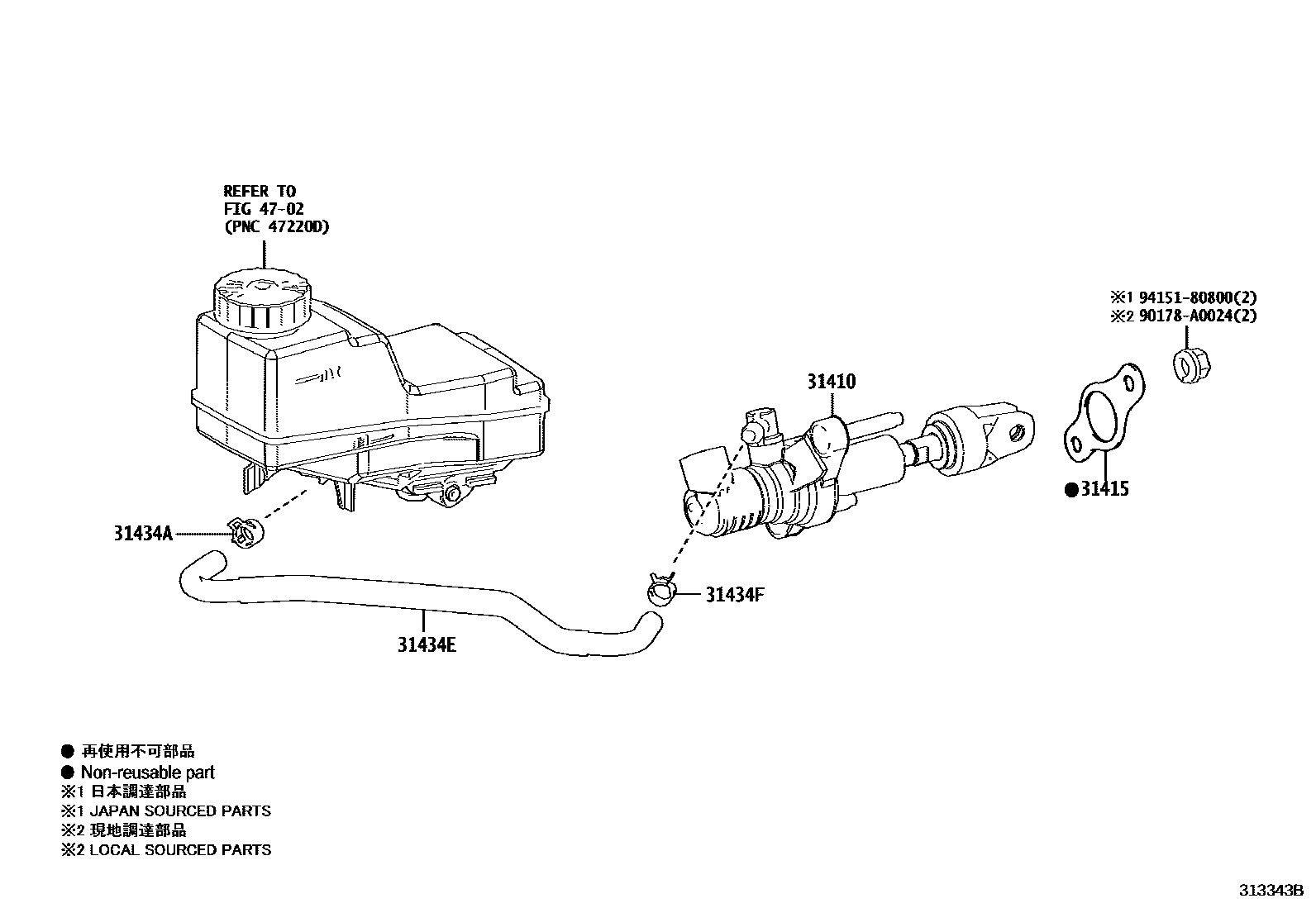

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12070iZRE212..6F201903-202007

main31420-12090iMZEA12..6F201903-202106

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iMZEA12,ZRE212..6F201903-202106

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-A0017iMZEA12..6F201903-202106

(L)

main96137-41501iMZEA12..6F201903-202106

(J)

31434EHOSE, CLUTCH RESERVOIR, NO.1

main31434-02090iMZEA12,ZRE212..6F201903-202301

31434FCLIP(FOR CLUTCH RESERVOIR HOSE NO.1)

main96138-41501iMZEA12,ZRE212..6F201903-202106

4702

90178A0024

main90178-A0024

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section
