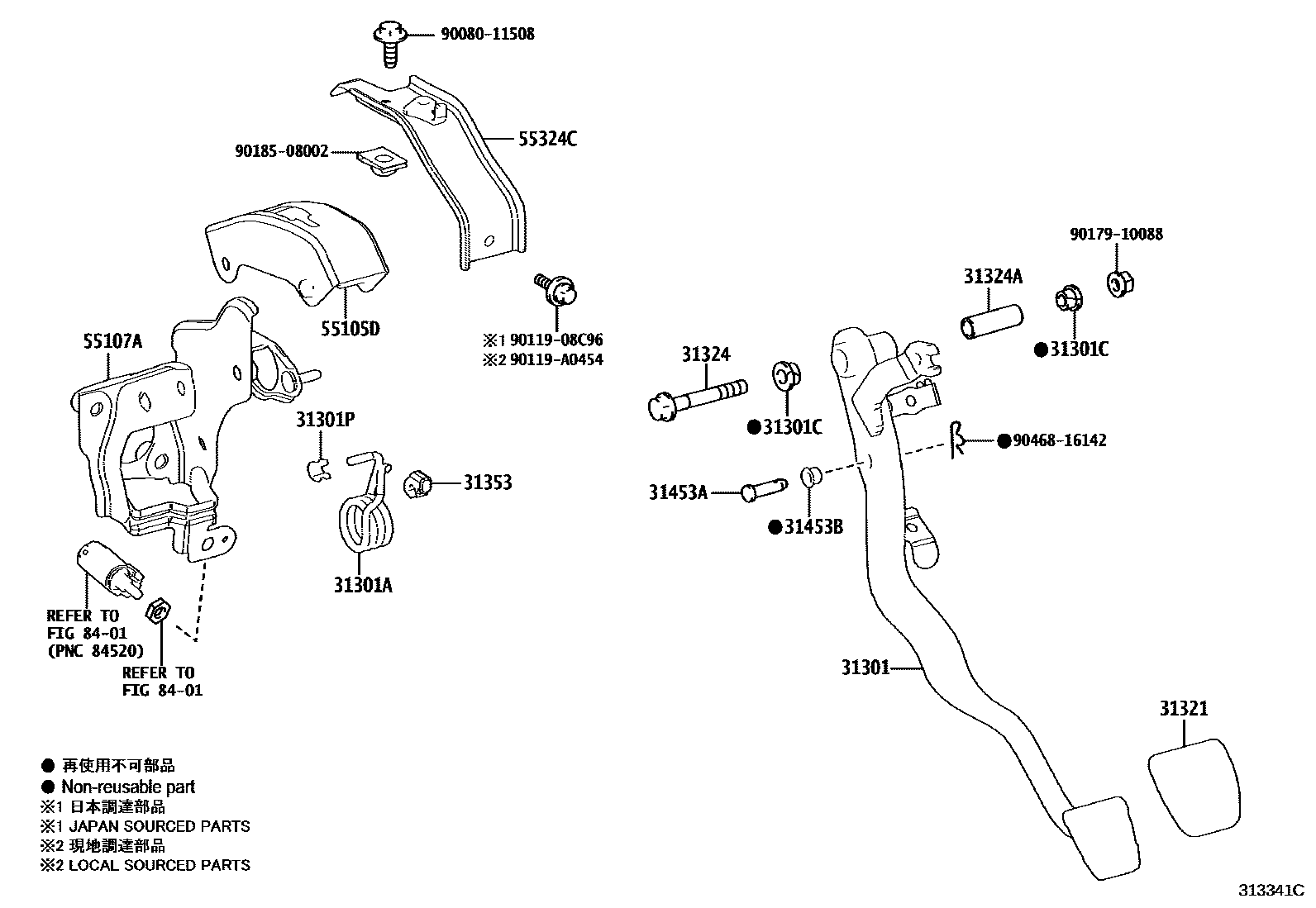

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02590iMZEA12..6F201903-202106

main31301-02610iZRE212..6F201903-202007

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iZRE212..6F202104-202106

main90949-03068iMZEA12,ZRE212..6F201903-202103

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iMZEA12..6F201903-202106

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iMZEA12,ZRE212..6F201903-202106

31321PAD, CLUTCH PEDAL

main31321-42010iMZEA12,ZRE212..6F201903-202106

31324SHAFT, CLUTCH PEDAL

main90105-10524iMZEA12,ZRE212..6F201903-202106

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMZEA12,ZRE212..6F201903-202106

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iMZEA12,ZRE212..6F201903-202106

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08084iMZEA12,ZRE212..6F201903-202106

L=28.3

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZRE212..6F201903-202106

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-02090iMZEA12..6F201903-202106

main55105-02100iZRE212..6F201903-202007

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02480iMZEA12..6F201903-202106

main55107-02520iZRE212..6F201903-202007

55324CBRACKET, INSTRUMENT PANEL, NO.4

main55324-12260iZRE212..6F201903-202106

8401

9008011508

main90080-11508

9011908C96

main90119-08C96

90119A0454

main90119-A0454

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

20 parts on this diagram · 4 diagrams in section
