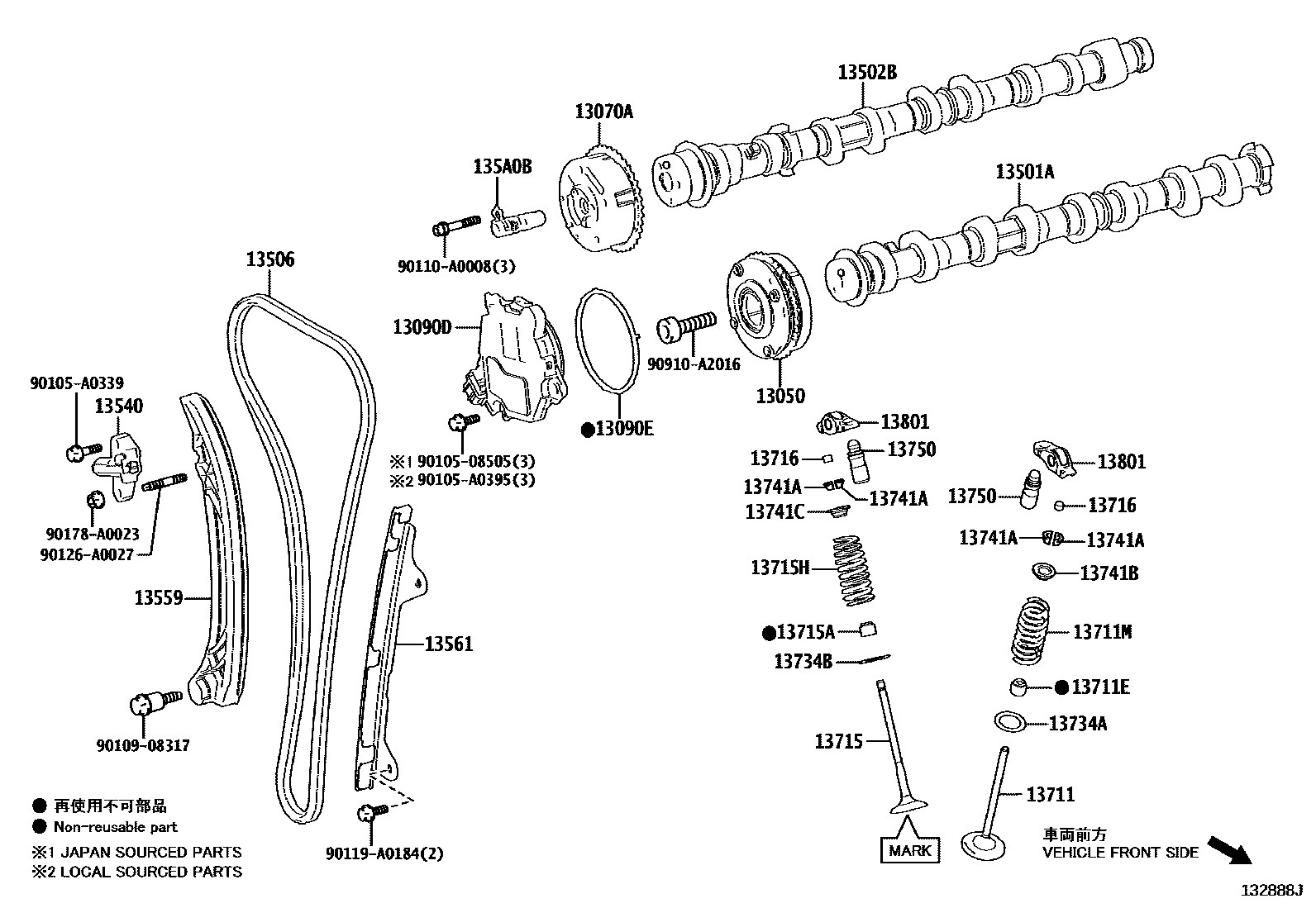

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
(L)
(J)
(J)
(L)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(L)
(J)
(J)
(J)
(L)
(L)
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
(J)
(L)
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
13501ACAMSHAFT SUB-ASSY, INTAKE
(J)
(L)
13502BCAMSHAFT SUB-ASSY, EXHAUST
(J)
(L)
13506CHAIN SUB-ASSY
(L)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
(J)
(L)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
135A0BVALVE ASSY, CAMSHAFT TIMING
(J)
(J)
(L)
(L)
13711VALVE, INTAKE
(J)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
MARK=EX
(J),MARK=EH
(J)
(L),MARK=EH
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
(L)
(J)
13734ASEAT, INTAKE VALVE SPRING
(L)
(J)
13734BSEAT, EXHAUST VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13741BRETAINER, INTAKE VALVE SPRING
13741CRETAINER, EXHAUST VALVE SPRING
13750ADJUSTER ASSY, VALVE LASH
MADE IN TMMNA
(J)
MADE IN JAPAN
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
(J)
(L)
9010508505
main90105-08505
90105A0339
main90105-A0339
90105A0395
main90105-A0395
9010908317
main90109-08317
90110A0008
main90110-A0008
90119A0184
main90119-A0184
90126A0027
main90126-A0027
90178A0023
main90178-A0023
90910A2016
main90910-A2016
36 parts on this diagram · 2 diagrams in section
