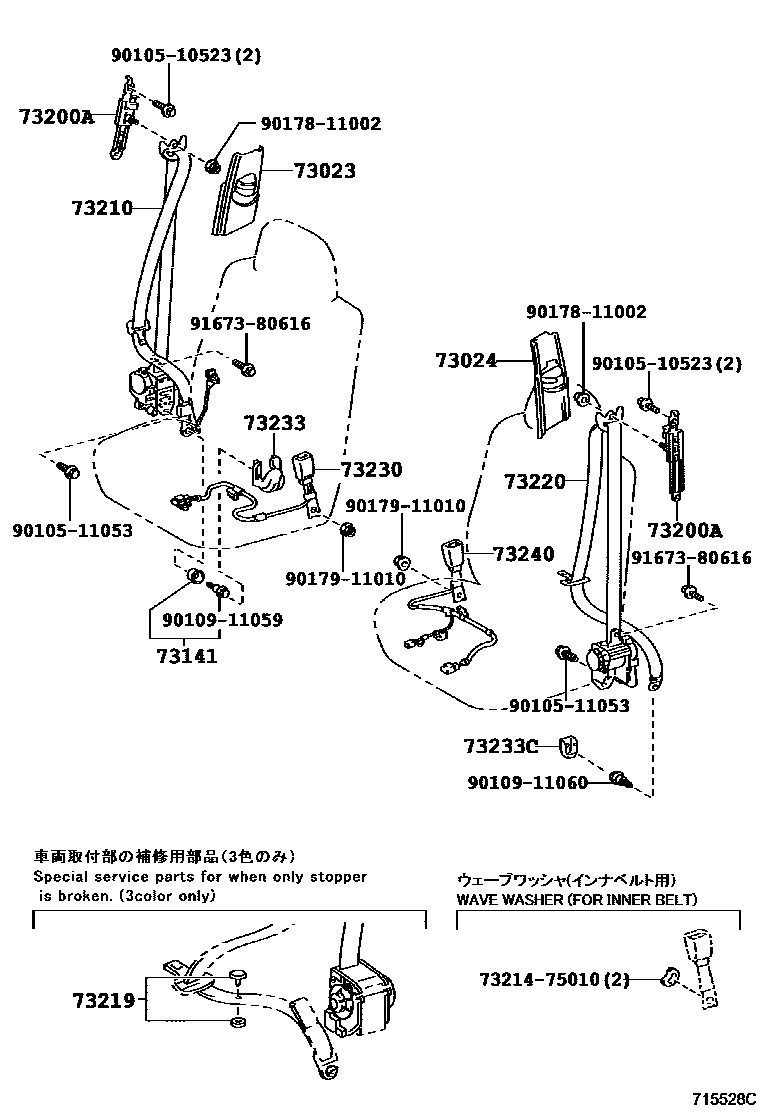

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33020-B2iZRE142..JPP200712-201308

LT.GRAY,TRIM1#

main73023-33020-E0iZRE142..JPP200712-201308

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33020-B2iZRE142..JPP200712-201308

LT.GRAY,TRIM1#

main73024-33020-E0iZRE142..JPP200712-201308

GREGE,TRIM4#

73141BASE, FRONT SEAT BELT ANCHOR

main73141-12050iZRE142..JPP200712-201308

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iZRE142..JPP200712-201308

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12B30-B0iZRE142..JPP201012-201308

GRAY,TRIM1#

main73210-12B30-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

main73210-12B60-B0iZRE142..JPP200712-200803

GRAY,TRIM1#

main73210-12B60-E0iZRE142..JPP200712-200803

GREGE,TRIM4#

main73210-12B61-B0iZRE142..JPP200804-201012

GRAY,TRIM1#

main73210-12B61-E0iZRE142..JPP200804-201012

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iZRE142..JPP200712-201308

BLACK

main73219-33020iZRE142..JPP200712-201308

GRAY

main73219-33030iZRE142..JPP200712-201308

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12B10-B0iZRE142..JPP201012-201308

GRAY,TRIM1#

main73220-12B10-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

main73220-12B90-B0iZRE142..JPP200712-201012

GRAY,TRIM1#

main73220-12B90-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12B00-B0iZRE142..JPP200712-201308

GRAY,TRIM1#

main73230-12B00-E0iZRE142..JPP200712-201308

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12020-B1iZRE142..JPP200712-201308

DK.GRAY,TRIM1#

main73233-12020-E0iZRE142..JPP200712-201308

GREGE,TRIM4#

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-12050-B0iZRE142..JPP200712-201308

DK.GRAY,TRIM1#

main73233-12050-E0iZRE142..JPP200712-201308

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-12280-B0iZRE142..JPP200712-201308

GRAY,TRIM1#

main73240-12280-E0iZRE142..JPP200712-201308

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911059

main90109-11059

9010911060

main90109-11060

9017811002

main90178-11002

9017911010

main90179-11010

9167380616

main91673-80616

19 parts on this diagram · 2 diagrams in section
