FRONT SEAT & SEAT TRACK

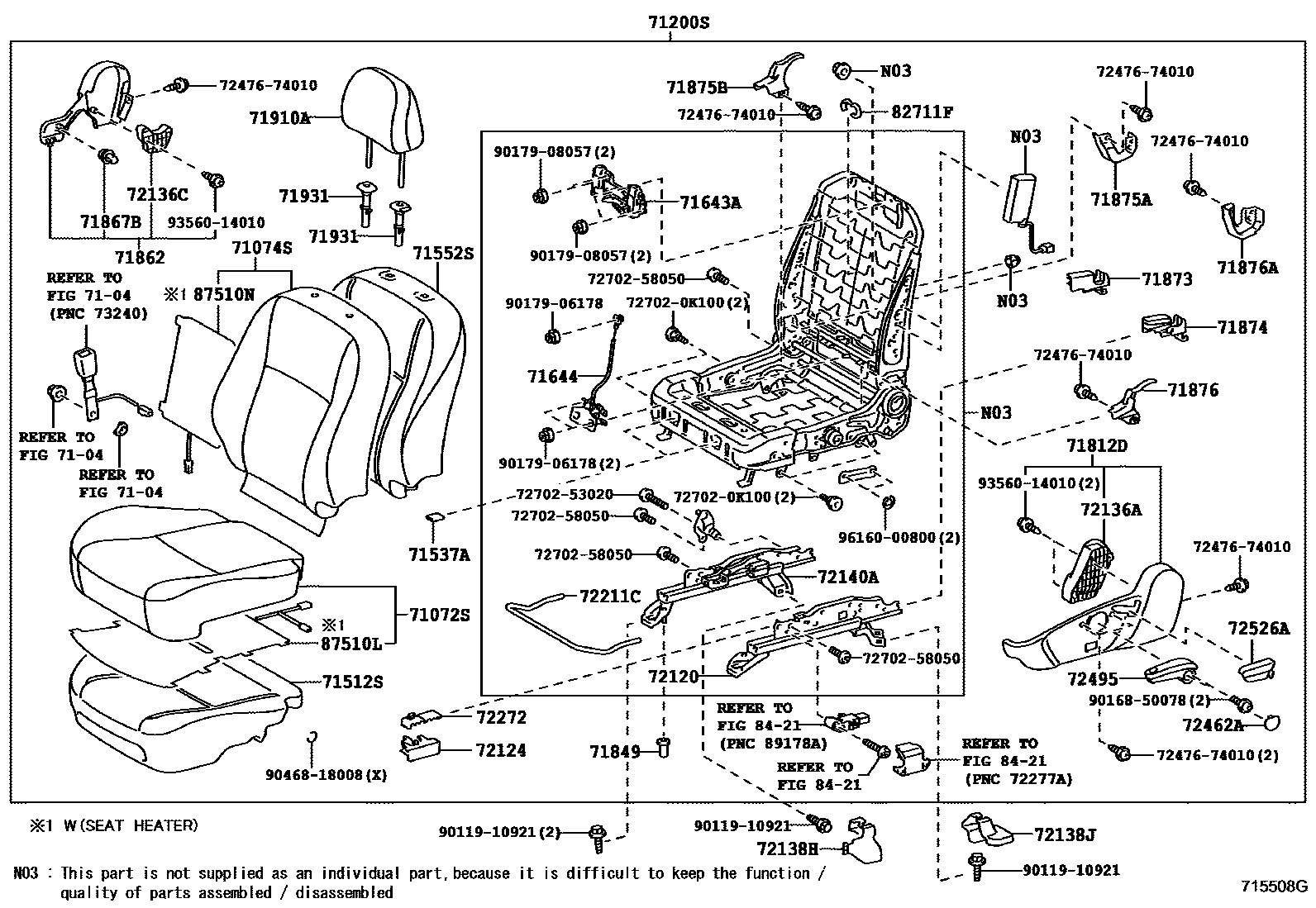

Parts diagram
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-12P50-B0i200712-201006
GRAY,TRIM1#
sub71072-12P51
main71072-12P50-E0i200712-201006
GREGE,TRIM4#
sub71072-12P51
main71072-12P51-B0i201006-201012
GRAY,TRIM1#
main71072-12P51-E0i201006-201012
GREGE,TRIM4#
main71072-12P60-B0i200712-201006
GRAY,TRIM1#
sub71072-12P61
main71072-12P60-E0i200712-201006
GREGE,TRIM4#
sub71072-12P61
main71072-12P61-B0i201006-201012
GRAY,TRIM1#
main71072-12P61-B0i201006-201012
GRADE MARK-LE,GRAY,TRIM1#
main71072-12P61-E0i201006-201012
GREGE,TRIM4#
main71072-12P61-E0i201006-201012
GRADE MARK-LE,GREGE,TRIM4#
main71072-12U30-B2i201012-201308
GRAY,TRIM1#
main71072-12U30-E2i201012-201308
GREGE,TRIM4#
main71072-12U40-B2i201012-201308
GRAY,TRIM1#
main71072-12U40-E3i201012-201308
GREGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-12J70-B1i200712-200911
GRAY,TRIM1#
sub71074-12J72
main71074-12J70-E1i200712-200911
GREGE,TRIM4#
sub71074-12J72
main71074-12J71-B1i200911-201006
GRAY,TRIM1#
sub71074-12J72
main71074-12J71-E1i200911-201006
GREGE,TRIM4#
sub71074-12J72
main71074-12J72-B1i201006-201012
GRAY,TRIM1#
main71074-12J72-E1i201006-201012
GREGE,TRIM4#
main71074-12J80-B1i200712-200911
GRAY,TRIM1#
sub71074-12J82
main71074-12J80-E1i200712-200911
GREGE,TRIM4#
sub71074-12J82
main71074-12J81-B1i200911-201006
GRADE MARK-LE,GRAY,TRIM1#
sub71074-12J82
main71074-12J81-B1i200911-201006
GRAY,TRIM1#
sub71074-12J82
main71074-12J81-E1i200911-201006
GREGE,TRIM4#
sub71074-12J82
main71074-12J81-E1i200911-201006
GRADE MARK-LE,GREGE,TRIM4#
sub71074-12J82
main71074-12J82-B1i201006-201012
GRAY,TRIM1#
main71074-12J82-B1i201006-201012
GRADE MARK-LE,GRAY,TRIM1#
main71074-12J82-E1i201006-201012
GREGE,TRIM4#
main71074-12J82-E1i201006-201012
GRADE MARK-LE,GREGE,TRIM4#
main71074-12M50-B2i201012-201308
GRAY,TRIM1#
main71074-12M50-E2i201012-201308
GREGE,TRIM4#
main71074-12V90-B2i201012-201308
GRAY,TRIM1#
main71074-12V90-E3i201012-201308
GREGE,TRIM4#
71200SSEAT ASSY, FRONT LH
main71200-12R40-B2i200712-200911
GRAY,TRIM1#
sub71200-1AN30
main71200-12R40-E2i200712-200911
GREGE,TRIM4#
sub71200-1AN30
main71200-12R42-B0i200911-201006
GRAY,TRIM1#
sub71200-12R43
main71200-12R42-E0i200911-201006
GREGE,TRIM4#
sub71200-12R43
main71200-12R43-B0i201006-201012
GRAY,TRIM1#
main71200-12R43-E0i201006-201012
GREGE,TRIM4#
main71200-12R50-B2i200712-200911
GRAY,TRIM1#
sub71200-1AN50
main71200-12R50-E2i200712-200911
GREGE,TRIM4#
sub71200-1AN50
main71200-12R52-B0i200911-201006
GRADE MARK-LE,GRAY,TRIM1#
sub71200-12R53
main71200-12R52-B0i200911-201006
GRAY,TRIM1#
sub71200-12R53
main71200-12R52-E0i200911-201006
GRADE MARK-LE,GREGE,TRIM4#
sub71200-12R53
main71200-12R52-E0i200911-201006
GREGE,TRIM4#
sub71200-12R53
main71200-12R53-B0i201006-201012
GRAY,TRIM1#
main71200-12R53-B0i201006-201012
GRADE MARK-LE,GRAY,TRIM1#
main71200-12R53-E0i201006-201012
GREGE,TRIM4#
main71200-12R53-E0i201006-201012
GRADE MARK-LE,GREGE,TRIM4#
main71200-1AC10-B1i201012-201102
GRAY,TRIM1#
sub71200-1AC11
main71200-1AC10-E2i201012-201102
GREGE,TRIM4#
sub71200-1AC11
main71200-1AC11-B0i201102-201308
GRAY,TRIM1#
main71200-1AC11-E0i201102-201308
GREGE,TRIM4#
main71200-1AD50-B1i201012-201102
GRAY,TRIM1#
sub71200-1AD51
main71200-1AD50-E1i201012-201102
GREGE,TRIM4#
sub71200-1AD51
main71200-1AD51-B0i201102-201308
GRAY,TRIM1#
main71200-1AD51-E0i201102-201308
GREGE,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-12360i200712-201308
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010i200712-201308
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-12460i200712-201012
main71552-12600i201012-201308
71643AUNIT, ACTIVE HEADREST, UPR
main71643-12011i200712-201308
71644UNIT, ACTIVE HEADREST, LWR
main71644-12030i200712-201308
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-12420-B0i200712-201308
GRAY,TRIM1#
main71812-12420-E0i200712-201308
GREGE,TRIM4#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-26010i201012-201308
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-12300-B0i200712-201308
GRAY,TRIM1#
main71862-12300-E0i200712-201308
GREGE,TRIM4#
71867BCLIP(FOR FRONT SEAT CUSHION INNER SHIELD)
main71769-33020i200712-201308
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-12060i200712-201308
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-12060i200712-201308
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58060i200712-201308
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-12020-B1i200712-201308
GRAY,TRIM1#
main71875-12020-E0i200712-201308
GREGE,TRIM4#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-12020-B1i200712-201308
GRAY,TRIM1#
main71876-12020-E0i200712-201308
GREGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-58060i200712-201308
71910AHEADREST ASSY, FRONT SEAT
main71910-12D20-B0i200712-200911
GRAY,TRIM1#
main71910-12D20-E0i200712-200911
GREGE,TRIM4#
main71910-12D21-B0i200911-201102
GRAY,TRIM1#
sub71910-12D22
main71910-12D21-E0i200911-201102
GREGE,TRIM4#
sub71910-12D22
main71910-12D22-B0i201102-201308
GRAY,TRIM1#
main71910-12D22-E0i201102-201308
GREGE,TRIM4#
main71910-12D30-B0i200712-200911
GRAY,TRIM1#
sub71910-12D20
main71910-12D30-E0i200712-200911
GREGE,TRIM4#
sub71910-12D20
main71910-12D31-B0i200911-201102
GRAY,TRIM1#
sub71910-12D32
main71910-12D31-B0i200911-201012
GRADE MARK-LE,GRAY,TRIM1#
sub71910-12D32
main71910-12D31-E0i200911-201012
GRADE MARK-LE,GREGE,TRIM4#
sub71910-12D32
main71910-12D31-E0i200911-201102
GREGE,TRIM4#
sub71910-12D32
main71910-12D32-B0i201102-201308
GRAY,TRIM1#
sub71910-12D22
main71910-12D32-E0i201102-201308
GREGE,TRIM4#
sub71910-12D22
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-B2i200712-201308
W(LOCK),GRAY,TRIM1#
sub71930-44020
sub71930-02370
main71930-44020-E0i200712-201308
W(LOCK),GREGE,TRIM4#
sub71930-44020
sub71930-02370
main71931-47010-E4i200712-201308
W/O(LOCK),GREGE,TRIM4#
sub71931-47010
sub71931-42020
main71931-47010-P4i200712-201308
W/O(LOCK),GRAY,TRIM1#
sub71931-47010
sub71931-42020
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-12210i200712-201308
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-12120i200712-201308
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-12010i200712-201308
72136ASPACER, SEAT TRACK, LOWER NO.2
main72136-12020i200712-201308
72136CSPACER, SEAT TRACK, LOWER NO.4
main72136-12060i200712-201308
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-12130-B0i200712-201308
DK.GRAY
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-12140-B0i200712-201308
DK.GRAY
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-12710i200712-201308
72211HANDLE, SEAT TRACK ADJUSTING
main72211-21020i200712-201308
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-21020i200712-201308
72272CLAMP, SEAT TRACK CONTROL CABLE
main72272-12020i200712-201308
72462ACOVER, VERTICAL ADJUSTER LH
main72462-42010-B1i200712-201308
GRAY,TRIM1#
sub72462-42010
main72462-42010-E1i200712-201308
GREGE,TRIM4#
sub72462-42010
72495HANDLE, VERTICAL ADJUSTING, LH
main72494-12050-B1i200712-201308
GRAY,TRIM1#
main72494-12050-E0i200712-201308
GREGE,TRIM4#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-42020-B1i200712-201308
GRAY,TRIM1#
sub72526-42020
main72526-42020-E1i200712-201308
GREGE,TRIM4#
sub72526-42020
82711FCLAMP, WIRING HARNESS
main82711-2B660i200712-201308
8421
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
7247674010SCREW, HORIZONTAL JACK, INNER
main72476-74010
727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-0K100
7270253020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-53020
7270258050BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-58050
9011910921
main90119-10921
9016850078
main90168-50078
9017906178
main90179-06178
9017908057
main90179-08057
9046818008
main90468-18008
9356014010
main93560-14010
9616000800
main96160-00800

50 parts on this diagram · 2 diagrams in section
