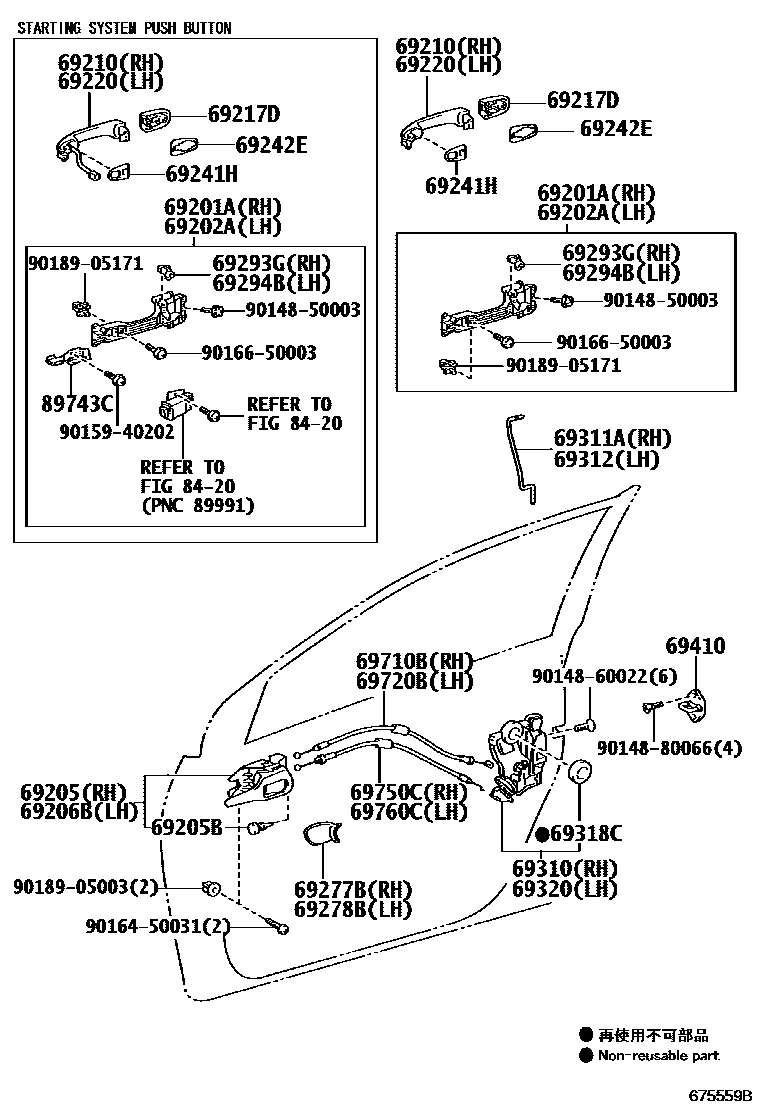

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
STARTING SYSTEM-PUSH BUTTON
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
STARTING SYSTEM-PUSH BUTTON
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SILVER,TRIM1#,4#
GRAY,TRIM1#
GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SILVER,TRIM1#,4#
GRAY,TRIM1#
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040
STARTING SYSTEM-PUSH BUTTON,GRAY ME.,1G3
STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1F7
STARTING SYSTEM-PUSH BUTTON,BLACK MC.,209
STARTING SYSTEM-PUSH BUTTON,RED M.M.,3R3
STARTING SYSTEM-PUSH BUTTON,TURQUOISE M.M.,779
STARTING SYSTEM-PUSH BUTTON,BLUE ME.,8T7
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BEIGE ME.,4T8,PASSENGER SIDE
DK.BLUE MC.,8S6,PASSENGER SIDE
BLUE ME.,8U6,PASSENGER SIDE
BLACK MATERIAL
BEIGE ME.,4T8,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
DOOR OUTSIDE HANDLE-BODY COLOR,W(PASSENGER KEY CYLINDER),BLUE ME.,8U6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
STARTING SYSTEM-PUSH BUTTON,SUPER WHITE 2,040
STARTING SYSTEM-PUSH BUTTON,GRAY ME.,1G3
STARTING SYSTEM-PUSH BUTTON,SILVER ME.,1F7
STARTING SYSTEM-PUSH BUTTON,BLACK MC.,209
STARTING SYSTEM-PUSH BUTTON,RED M.M.,3R3
STARTING SYSTEM-PUSH BUTTON,TURQUOISE M.M.,779
STARTING SYSTEM-PUSH BUTTON,BLUE ME.,8T7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
GRAY,TRIM1#
GREGE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
GRAY,TRIM1#
GREGE,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGERKEY CYLINDER)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGERKEY CYLINDER)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69320LOCK ASSY, FRONT DOOR, LH
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGERKEY CYLINDER)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
STARTING SYSTEM-PUSH BUTTON,RH
STARTING SYSTEM-PUSH BUTTON,LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450031
main90164-50031
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
34 parts on this diagram · 1 diagram in section
