INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×2iZRE142..JPP201012-201308

62111CBOARD, COWL SIDE TRIM, RH

main62111-12320-B1iZRE142..JPP201012-201308

GRAY,TRIM1#

main62111-12320-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-12350-B1iZRE142..JPP201012-201308

GRAY,TRIM1#

main62112-12350-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-12030iZRE142..JPP200712-201012

main62170-12031iZRE142..JPP201201-201203

main62170-12111iZRE142..JPP201203-201308

main62170-12032iZRE142..JPP..LE201302-201308

KOREA SPEC

62170BBOLT, W/WASHER

main90119-06869×10iZRE142..JPP200712-201012

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-12030iZRE142..JPP201012-201112

main62180-12031iZRE142..JPP201201-201203

main62180-12111iZRE142..JPP201203-201308

main62180-12032iZRE142..JPP..LE201302-201308

KOREA SPEC

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-33010×8iZRE142..JPP200712-201012

62211GARNISH, FRONT PILLAR, RH

main62211-12410-B0iZRE142..JPP200712-201012

LT.GRAY,TRIM1#

main62211-12410-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×2iZRE142..JPP201012-201308

62212GARNISH, FRONT PILLAR, LH

main62212-12410-B0iZRE142..JPP200712-201012

LT.GRAY,TRIM1#

main62212-12410-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main90950-08004×2iZRE142..JPP200712-201012

62217HCLIP, CENTER PILLER GARNISH

main90467-10167×2iZRE142..JPP201012-201308

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12220iZRE142..JPP200712-201012

sub62311-02160

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12220iZRE142..JPP200712-201012

sub62312-02160

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12240iZRE142..JPP200712-201012

sub62331-02200

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12240iZRE142..JPP201012-201308

sub62332-02200

62411GARNISH, CENTER PILLAR, RH

main62410-12060-B0iZRE142..JPP200712-201012

LT.GRAY,TRIM1#

main62410-12060-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-12060-B0iZRE142..JPP201012-201308

LT.GRAY,TRIM1#

main62420-12060-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12270-B1iZRE142..JPP200712-201012

GRAY,TRIM1#

main62413-12270-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main62217-13010×4iZRE142..JPP200712-201012

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12270-B1iZRE142..JPP201012-201308

GRAY,TRIM1#

main62414-12270-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-12140-B1iZRE142..JPP201012-201308

LT.GRAY,TRIM1#

main62470-12140-E1iZRE142..JPP200712-201012

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188×2iZRE142..JPP200712-201012

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×6iZRE142..JPP200712-201012

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-12030-B0iZRE142..JPP200712-201012

MD.GRAY,TRIM1#

main62473-12030-B1iZRE142..JPP201012-201308

DK.GRAY,TRIM1#,4#

main62473-12030-E0iZRE142..JPP200712-201012

ASH BROWN,TRIM4#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-12030-B0iZRE142..JPP200712-201012

MD.GRAY,TRIM1#

main62474-12030-B1iZRE142..JPP201012-201308

DK.GRAY,TRIM1#,4#

main62474-12030-E0iZRE142..JPP200712-201012

ASH BROWN,TRIM4#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-12140-B1iZRE142..JPP200712-201012

LT.GRAY,TRIM1#

main62480-12140-E1iZRE142..JPP200712-201012

GREGE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10161×2iZRE142..JPP200712-201012

62551FGARNISH, REAR SEAT SIDE, RH

main62551-12240-B1iZRE142..JPP201012-201202

GRAY,TRIM1#

main62551-12240-E0iZRE142..JPP201012-201202

GREGE,TRIM4#

main62551-12241-B1iZRE142..JPP201203-201308

GRAY,TRIM1#

main62551-12241-E0iZRE142..JPP201203-201308

GREGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-12210-B1iZRE142..JPP200712-201012

GRAY,TRIM1#

main62552-12210-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

main62552-12211-B1iZRE142..JPP201203-201308

GRAY,TRIM1#

main62552-12211-E0iZRE142..JPP201203-201308

GREGE,TRIM4#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main90467-10167×2iZRE142..JPP200712-201012

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-12060iZRE142..JPP200712-201012

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-12060iZRE142..JPP200712-201012

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-12120-B1iZRE142..JPP200712-201012

GRAY,TRIM1#

main67911-12120-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-12120-B1iZRE142..JPP200712-201012

GRAY,TRIM1#

main67911-12120-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12310-B1iZRE142..JPP200712-201012

GRAY,TRIM1#

main67913-12310-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12270-B1iZRE142..JPP201012-201308

GRAY,TRIM1#

main67914-12270-E0iZRE142..JPP201012-201308

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12160-B1iZRE142..JPP201012-201308

GRAY,TRIM1#

main67917-12160-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12150-B1iZRE142..JPP200712-201012

GRAY,TRIM1#

main67918-12150-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

7104

9018905096

main90189-05096

9046709225

main90467-09225

9356855018

main93568-55018

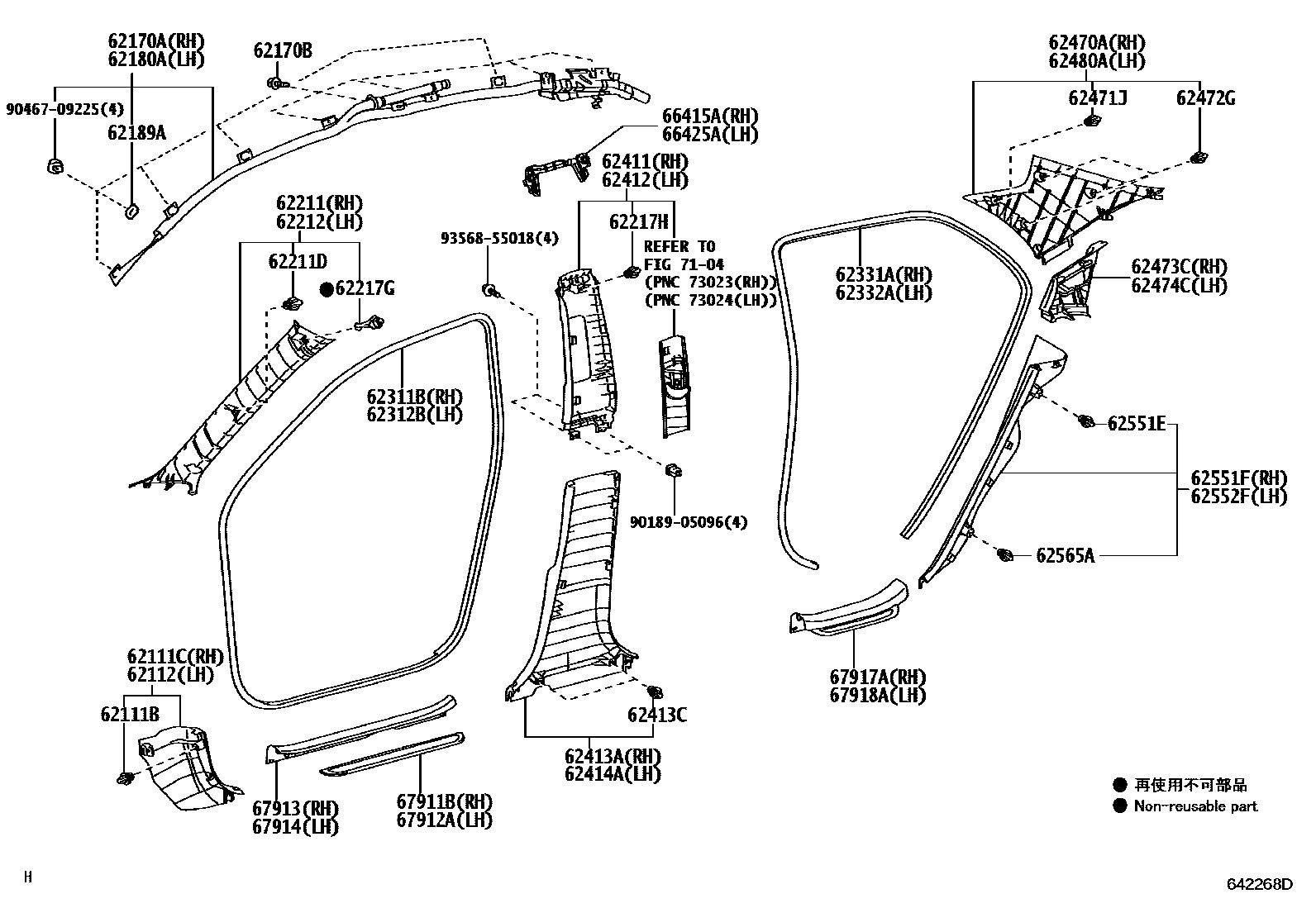

43 parts on this diagram · 1 diagram in section
