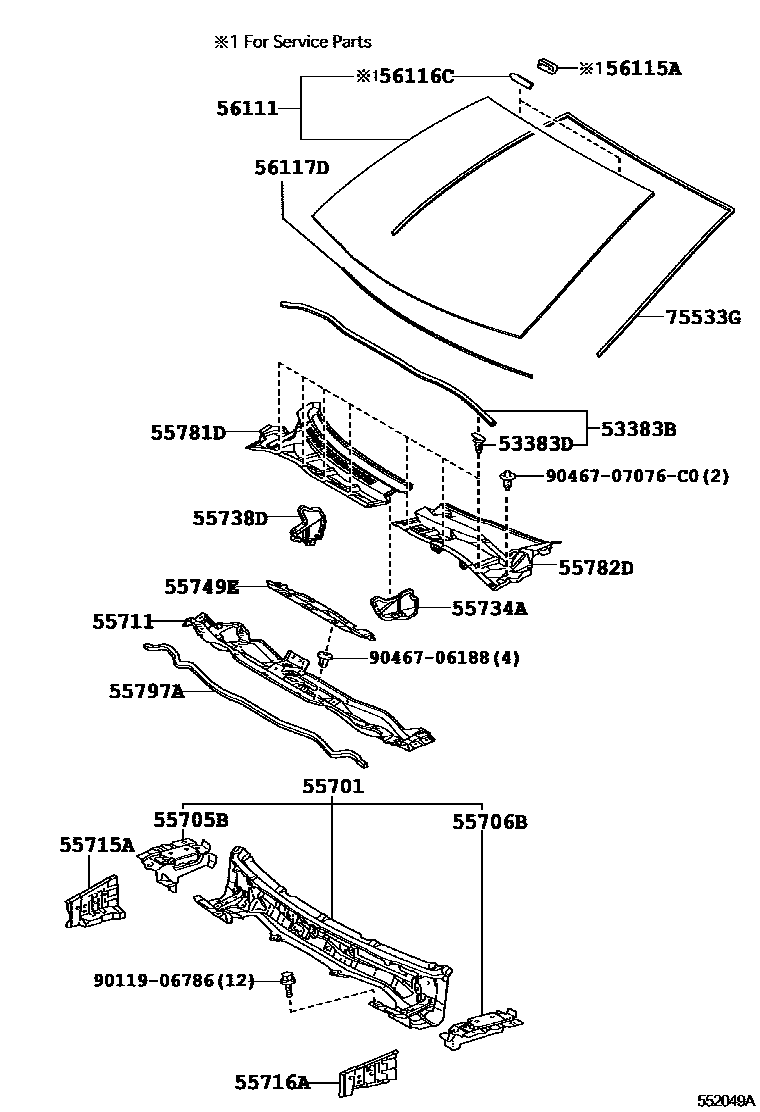

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12160iZRE142..JPP200712-201012

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×5iZRE142..JPP201012-201308

WHITE

main67867-52030×2iZRE142..JPP201012-201308

PINK

55701PANEL SUB-ASSY, COWL

main55700-12B20iZRE142..JPP200712-201012

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12100iZRE142..JPP200712-201012

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12110iZRE142..JPP201012-201308

55711PANEL, COWL TOP, OUTER

main55701-12A80iZRE142..JPP200712-201012

55715ABRACE, COWL TOP TO APRON, RH

main55715-12110iZRE142..JPP200712-201012

55716ABRACE, COWL TOP TO APRON, LH

main55716-12110iZRE142..JPP200712-201012

55734APLATE, WATER GUARD, RH

main55734-12160iZRE142..JPP200712-201012

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-12090iZRE142..JPP200712-201012

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-12080iZRE142..JPP201012-201308

55781DLOUVER, COWL TOP VENTILATOR, RH

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12110iZRE142..JPP200712-201012

55797ASEAL, COWL WATER EXTRACT

main55737-74010iZRE142..JPP200806-201012

main55797-12040iZRE142..JPP200712-200805

56111GLASS, WINDSHIELD

main56101-12421iZRE142..JPP200712-200807

*LAM,T=4.7,GREEN

main56101-12422iZRE142..JPP200808-201012

*LAM,T=4.7,GREEN

main56101-12510iZRE142..JPP201012-201308

*LAM,T=4.7,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iZRE142..JPP200712-201012

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZRE142..JPP200712-201012

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-12300iZRE142..JPP200712-201012

L=1303

sub56117-50140

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-12690iZRE142..JPP200712-201012

9011906786

main90119-06786

9046706188

main90467-06188

9046707076C0

main90467-07076C0

22 parts on this diagram · 1 diagram in section
