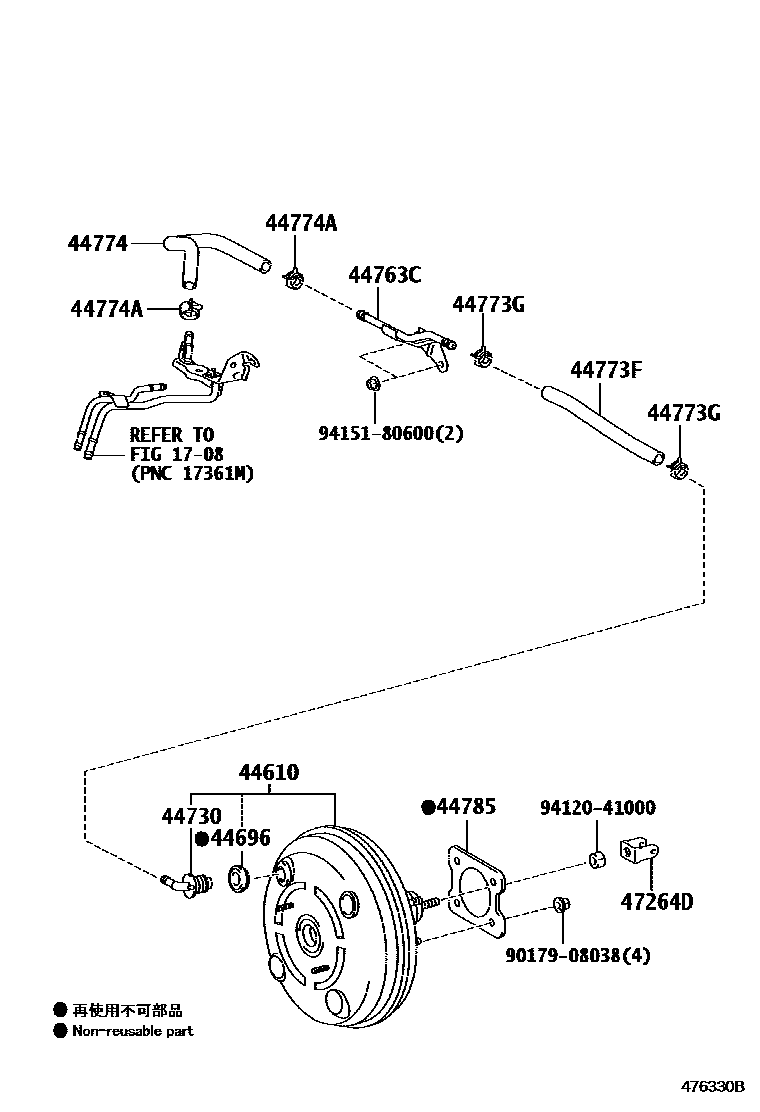

BRAKE BOOSTER & VACUUM TUBE

1708

44610BOOSTER ASSY, BRAKE

main44610-12A81supersedes 44610-12D21iZRE142..JPP200901-201011

main44610-12A80supersedes 44610-12G00iZRE142..JPP200712-200802

VSC-WITH(W/CUT OFF SWITCH)

44696GROMMET, CHECK VALVE

main90480-24439iZRE142..JPP200712-201012

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZRE142..JPP200712-200807

main44730-14050supersedes 44730-20170iZRE142..JPP200901-201012

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12500iZRE142..JPP200712-201012

44773FHOSE, UNION TO CHECK VALVE

main44773-12860iZRE142..JPP200712-201012

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500×2iZRE142..JPP200712-201012

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12700iZRE142..JPP200712-201012

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iZRE142..JPP200712-201012

44785GASKET, BRAKE BOOSTER

main44785-12040iZRE142..JPP200712-201012

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iZRE142..JPP200712-201012

main47264-68010iZRE142..JPP201012-201308

9017908038

main90179-08038

9412041000

main94120-41000

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
