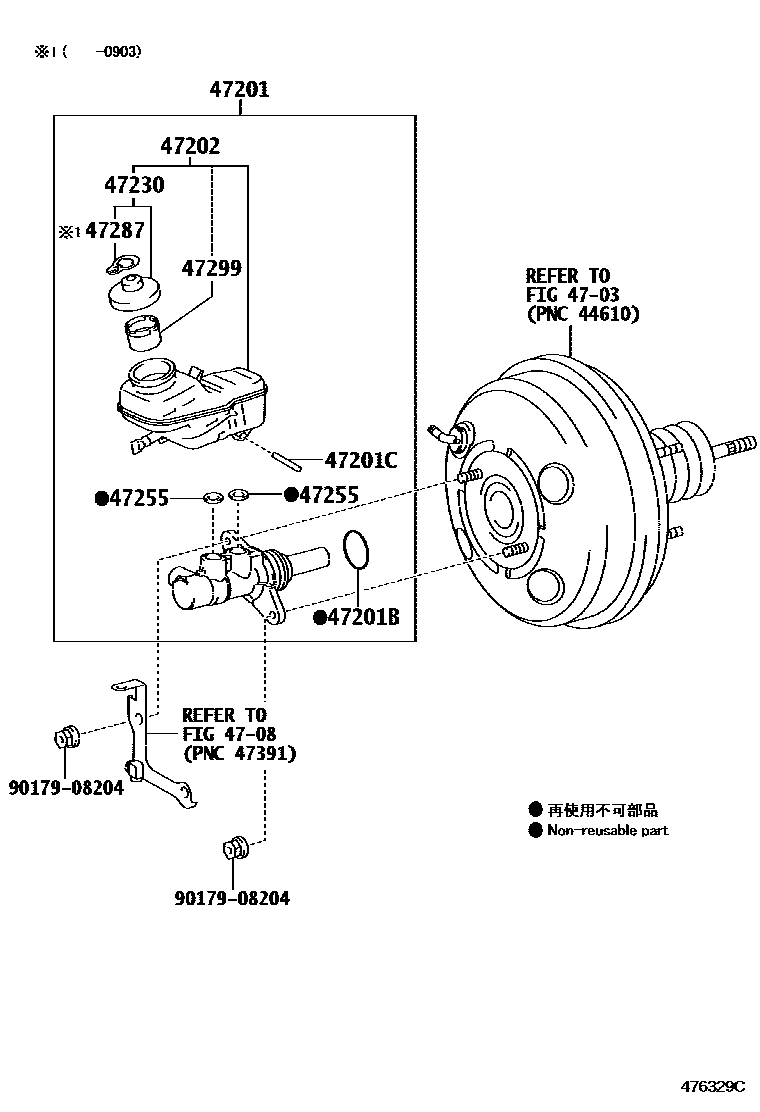

BRAKE MASTER CYLINDER

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12B10iZRE142..JPP200712-200901

VSC-WITH(W/CUT OFF SWITCH)

sub47201-12B11

main47201-12B20iZRE142..JPP200712-200901

main47201-12B60iZRE142..JPP200901-200903

sub47201-12B61

main47201-12B61iZRE142..JPP200903-201202

sub47201-12B62

main47201-12B62iZRE142..JPP201203-201204

sub47201-12B63

main47201-12B63iZRE142..JPP201205-201308

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRE142..JPP200712-201308

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZRE142..JPP200712-201308

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12230iZRE142..JPP200712-200903

main47220-12250iZRE142..JPP200903-201308

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iZRE142..JPP200903-201308

main47230-20140iZRE142..JPP200712-200901

VSC-WITH(W/CUT OFF SWITCH)

main47230-20140iZRE142..JPP200901-200903

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iZRE142..JPP200712-201308

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iZRE142..JPP200712-200903

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iZRE142..JPP200712-201308

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
