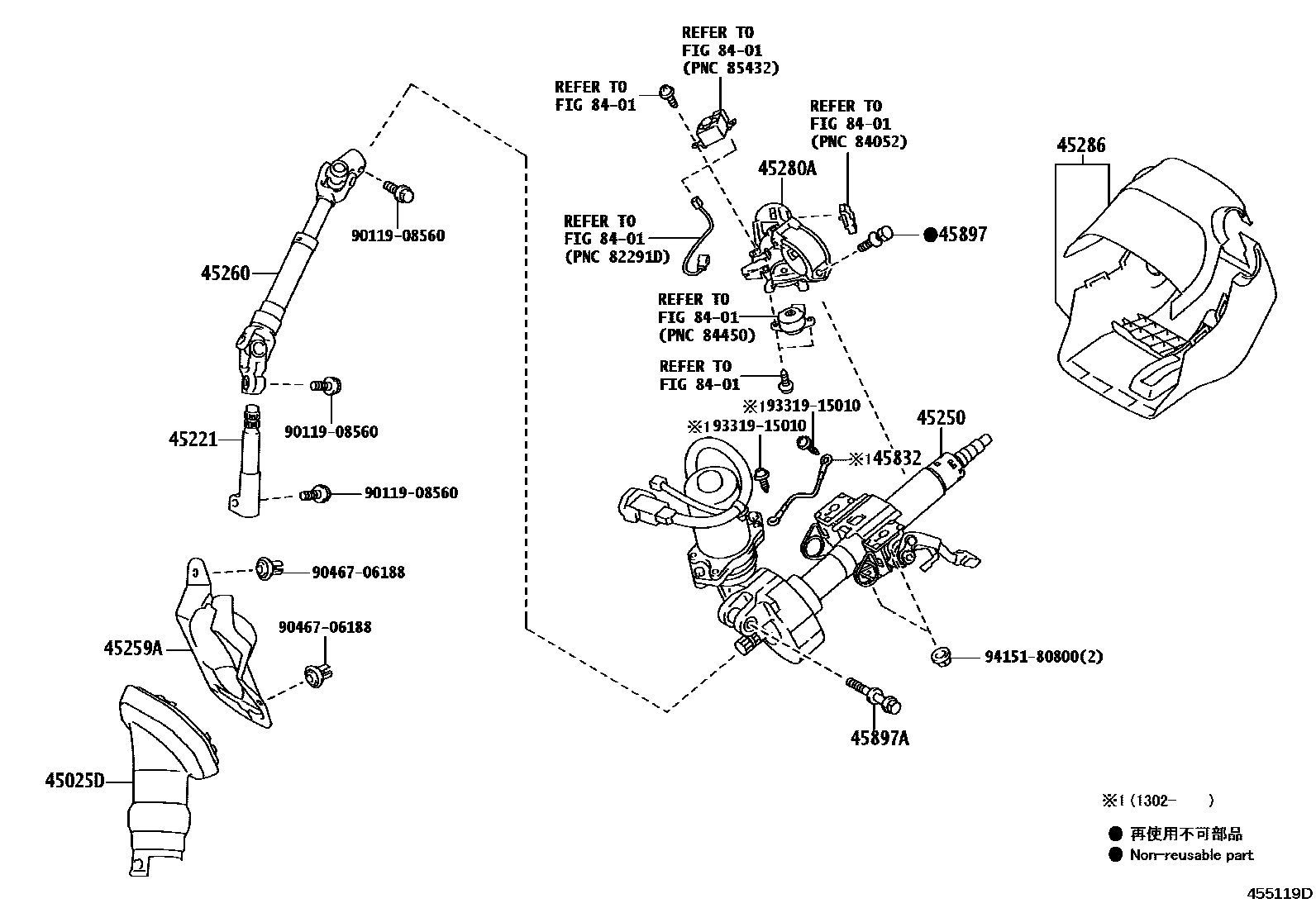

STEERING COLUMN & SHAFT

0001 1 0002 1STARTING SYSTEM-PUSH BUTTON

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12250iZRE142..JPP200712-201012

45221SHAFT, STEERING INTERMEDIATE

main45221-12350iZRE142..JPP200712-201012

45250COLUMN ASSY, STEERING

main45250-12C30iZRE142..JPP200712-200804

main45250-12C31iZRE142..JPP200805-201012

main45250-12C50iZRE142..JPP..LE200712-200804

STARTING SYSTEM-PUSH BUTTON

main45250-12C51iZRE142..JPP..LE200805-200902

STARTING SYSTEM-PUSH BUTTON

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12100iZRE142..JPP200712-201012

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12620iZRE142..JPP200712-201012

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42130iZRE142..JPP200712-201012

45286COVER, STEERING COLUMN

main45286-12977-B0iZRE142..JPP201209-201308

DK.GRAY,TRIM1#,4#

main45286-12986-B0iZRE142..JPP201012-201209

DK.GRAY,TRIM1#,4#

main45286-12986-B1iZRE142..JPP200712-201012

MD.GRAY,TRIM1#

main45286-12986-E0iZRE142..JPP200712-201012

ASH BROWN,TRIM4#

main45286-12993-B1iZRE142..JPP..LE200712-200902

STARTING SYSTEM-PUSH BUTTON,MD.GRAY,TRIM1#

main45286-12993-E0iZRE142..JPP..LE200712-200902

STARTING SYSTEM-PUSH BUTTON,ASH BROWN,TRIM4#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010iZRE142..JPP201302-201308

45897BOLT, STEERING LOCK SET

main45897-12020iZRE142..JPP200712-201012

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZRE142..JPP200712-201012

main90119-10981iZRE142..JPP201210-201308

8401

9011908560

main90119-08560

9046706188

main90467-06188

9331915010

main93319-15010

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
