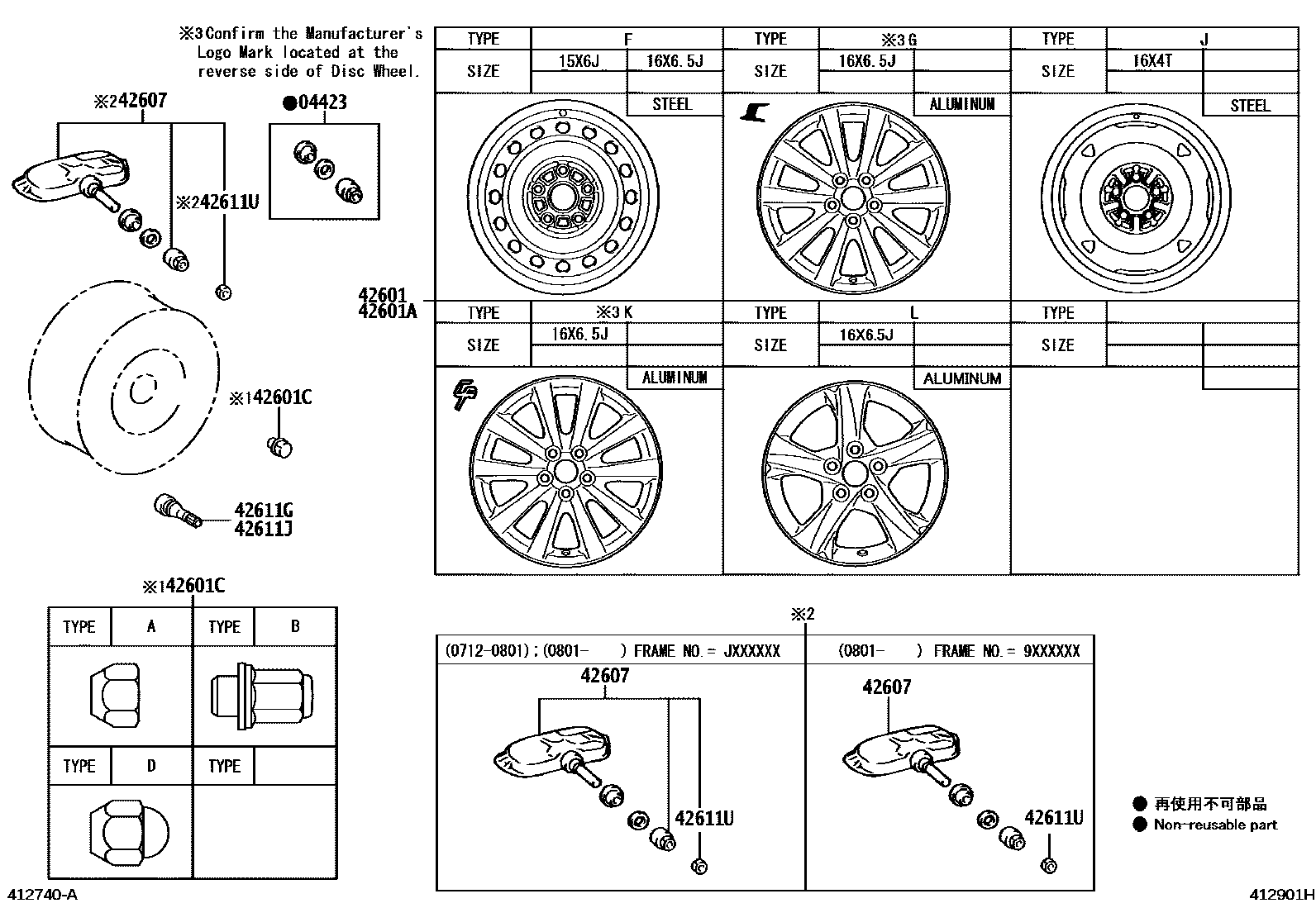

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
sub04423-33060
42601WHEEL, DISC
15X6J, #,TYPE F:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-P195/65R15 STEEL OFFSET 33,TYPE F:REFER ILLUST.
16X6.5J, #,TYPE F:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE J:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-33012
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
8 parts on this diagram · 2 diagrams in section
