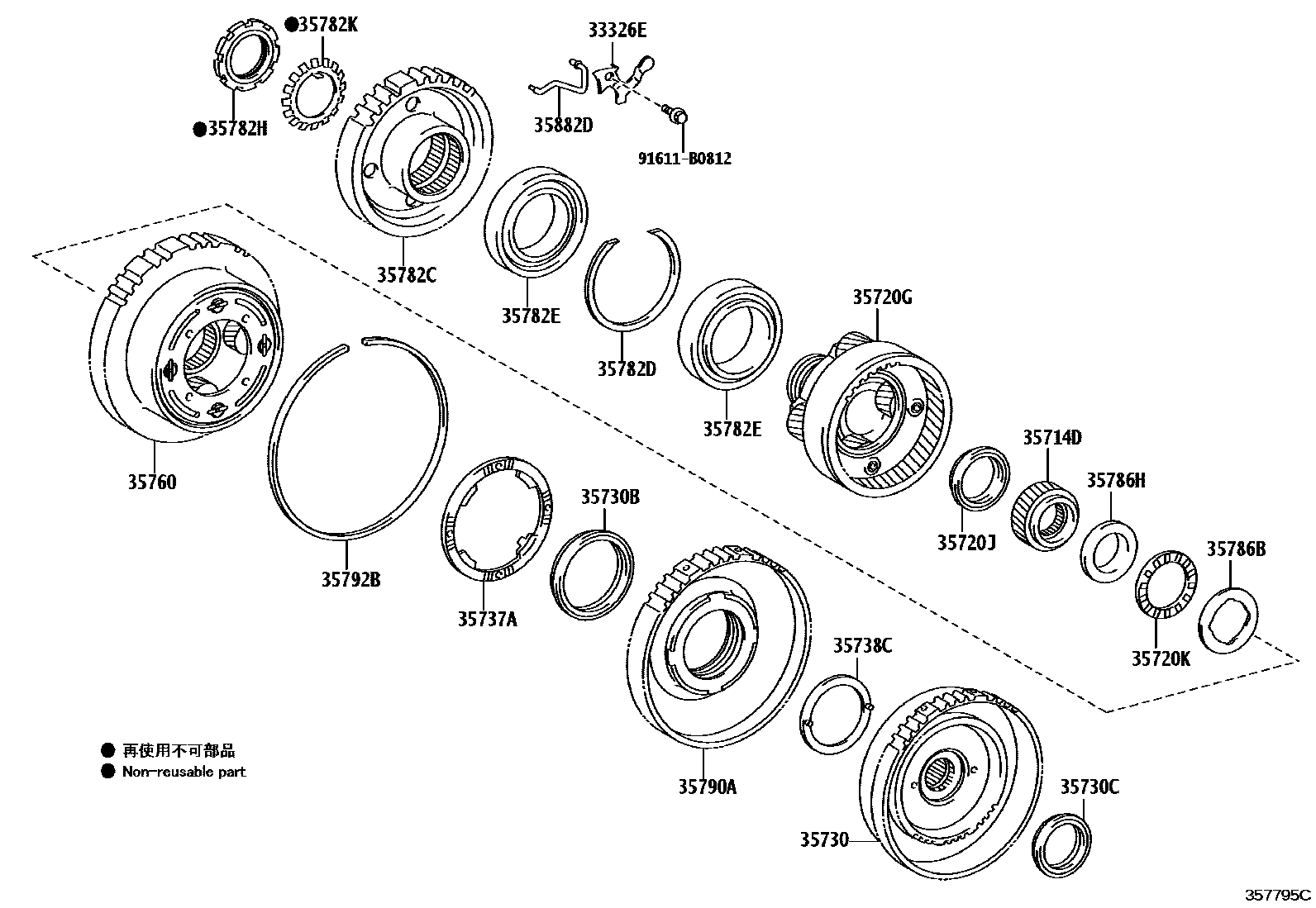

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
33326EPLATE, BEARING LOCK
35714DGEAR, FR PLANETARY SUN
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
35730GEAR ASSY, REAR PLANETARY SUN
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738CWASHER, PLANETARY CARRIER THRUST, NO.2
35760GEAR ASSY, REAR PLANETARY
35782CGEAR, COUNTER DRIVE
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
35782EBEARING(FOR COUNTER DRIVE GEAR)
35782HNUT(FOR COUNTER DRIVE GEAR)
35782KWASHER, LOCK(FOR COUNTER DRIVE GEAR LOCK NUT)
35786BRACE, THRUST BEARING, NO.2
35786HRACE, THRUST BEARING, NO.1
35790ACLUTCH ASSY, 1 WAY
35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
35882DTUBE, DIFFERENTIAL GEAR LUBE APPLY
91611B0812
main91611-B0812
22 parts on this diagram · 1 diagram in section
