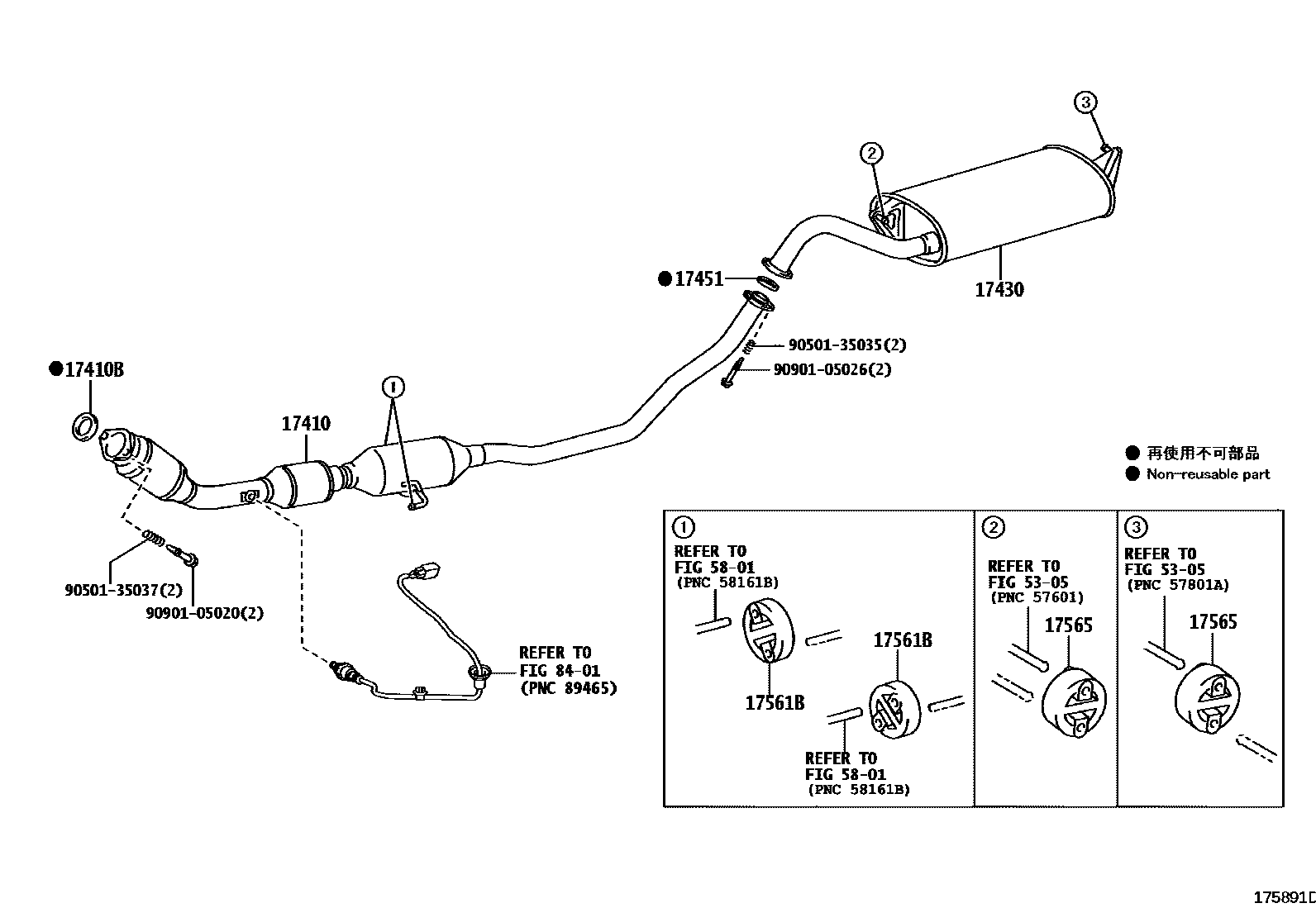

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-37260i2ZRFE..ZRE142..JPP200712-201012

main17410-37420i2ZRFE..ZRE142..JPP201012-201308

17410BGASKET, EXHAUST PIPE

main17451-28040i2ZRFE..ZRE142..JPP¥1,510200712-201308

sub17451-28041¥1,510

17430PIPE ASSY, EXHAUST, TAIL

main17430-37280i2ZRFE..ZRE142..JPP200712-201308

17451GASKET, EXHAUST PIPE

main17451-28030i2ZRFE..ZRE142..JPP¥2,170200712-200801

sub17451-28031¥2,170

main17451-28031i2ZRFE..ZRE142..JPP¥2,170200801-201102

sub17451-28032¥1,360

main17451-28032i2ZRFE..ZRE142..JPP¥1,360201103-201308

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030i2ZRFE..ZRE142..JPP¥570200712-201308

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2ZRFE..ZRE142..JPP¥670200712-201308

5305

5801

8401

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

13 parts on this diagram · 1 diagram in section
