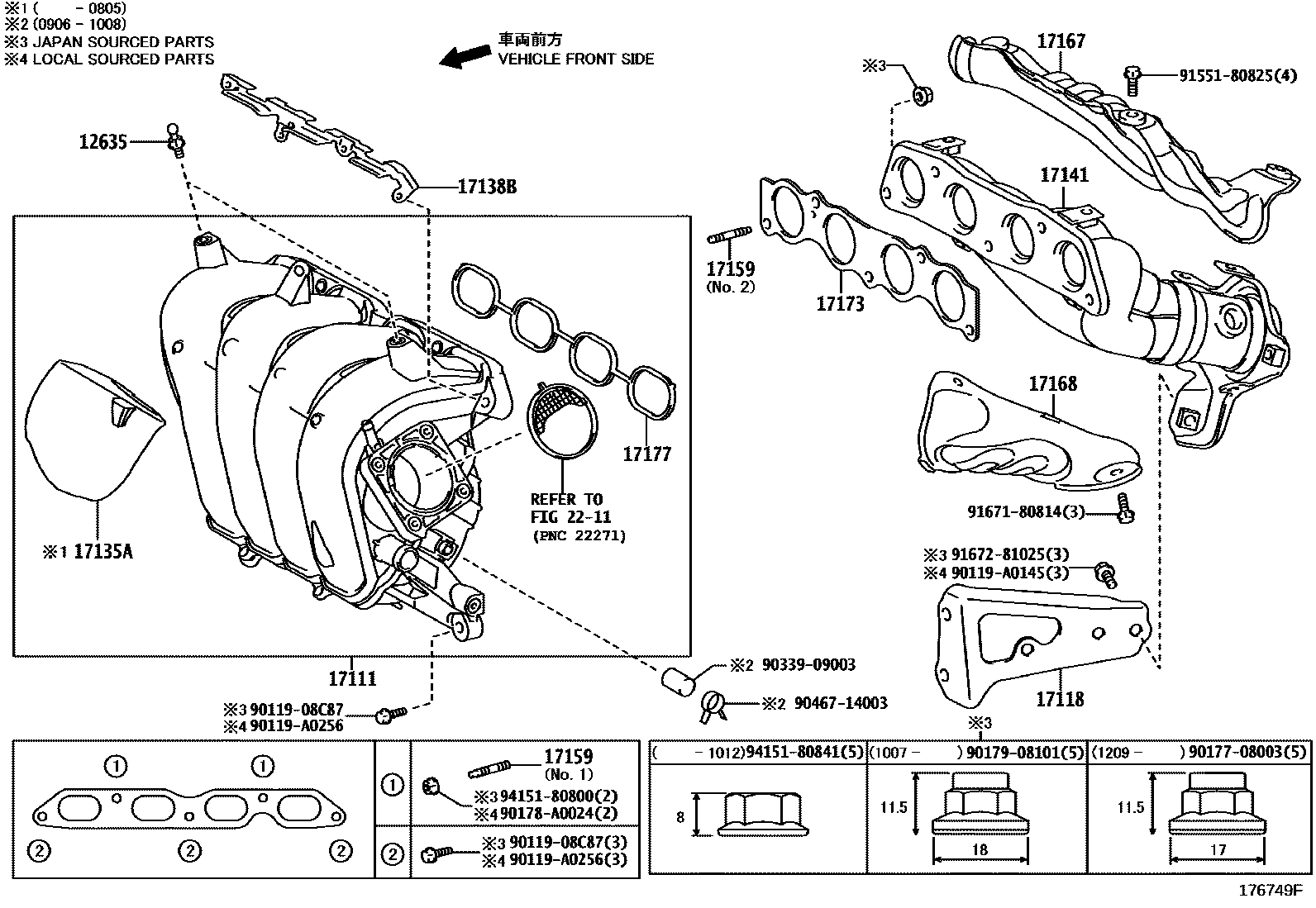

MANIFOLD
12635JOINT, ENGINE COVER
17111MANIFOLD, INTAKE
(L),*251
(L)
*119
(J),*119
(J),*251,*119
17118STAY, MANIFOLD
(L),*251
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138BSTAY, INTAKE MANIFOLD
(J)
(J)
17141MANIFOLD, EXHAUST
(L)
(J)
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
(L),NO.1
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L),*251
(J),*251
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L),*251
(J),*251
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J),*251
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211
9011908C87
main90119-08C87
90119A0145
main90119-A0145
90119A0256
main90119-A0256
9017708003
main90177-08003
90178A0024
main90178-A0024
9017908101
main90179-08101
9033909003
main90339-09003
9046714003
main90467-14003
9155180825
main91551-80825
9167180814
main91671-80814
9167281025
main91672-81025
9415180800
main94151-80800
9415180841
main94151-80841
25 parts on this diagram · 1 diagram in section
