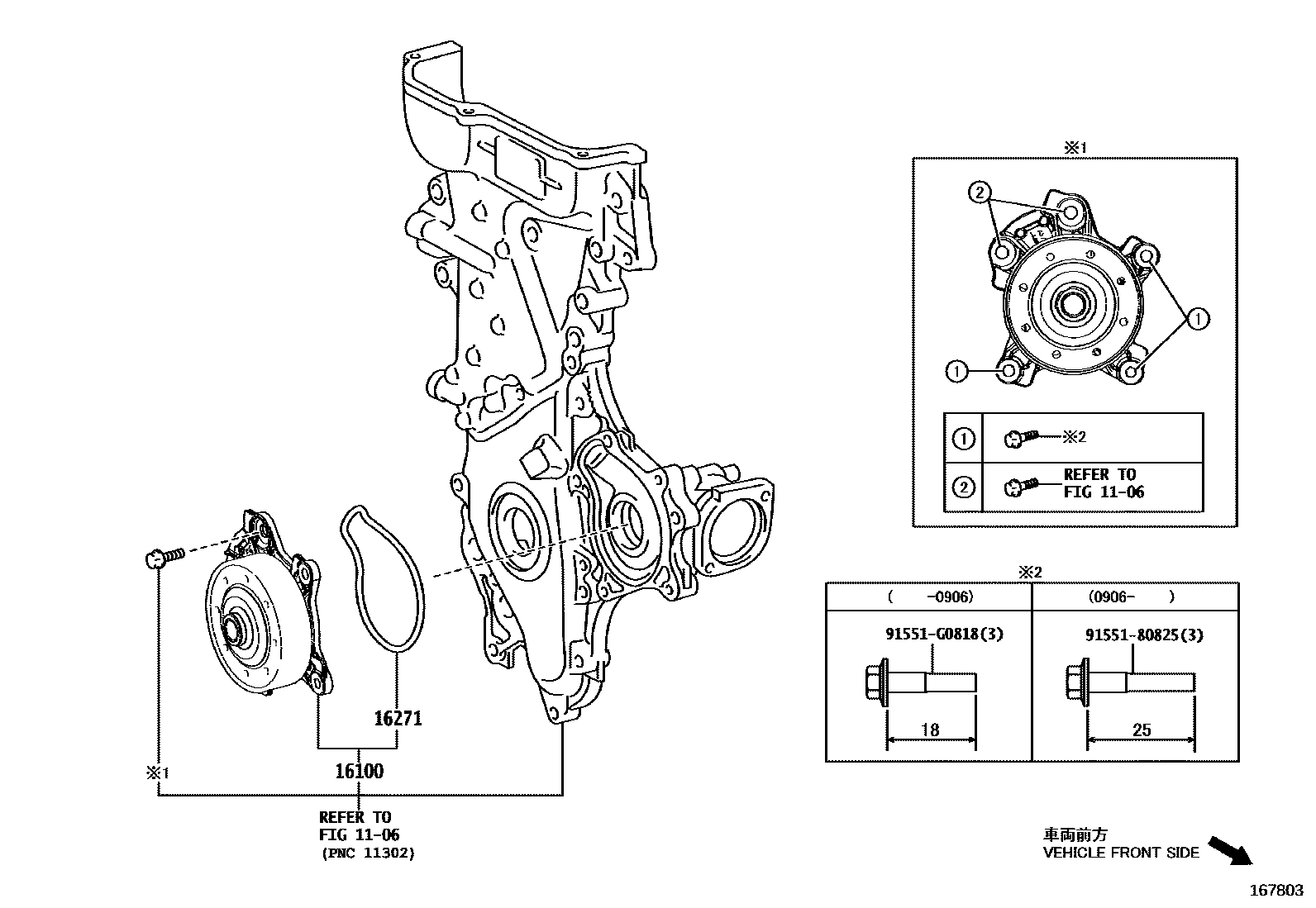

WATER PUMP

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main16100-09560i201012-201308

(L)

main16100-39465i200712-200906

main16100-39466i201012-201308

(J)

16271GASKET, WATER PUMP

main16271-37010i200712-201012

9155180825

main91551-80825

91551G0818

main91551-G0818

5 parts on this diagram · 1 diagram in section
