CYLINDER BLOCK

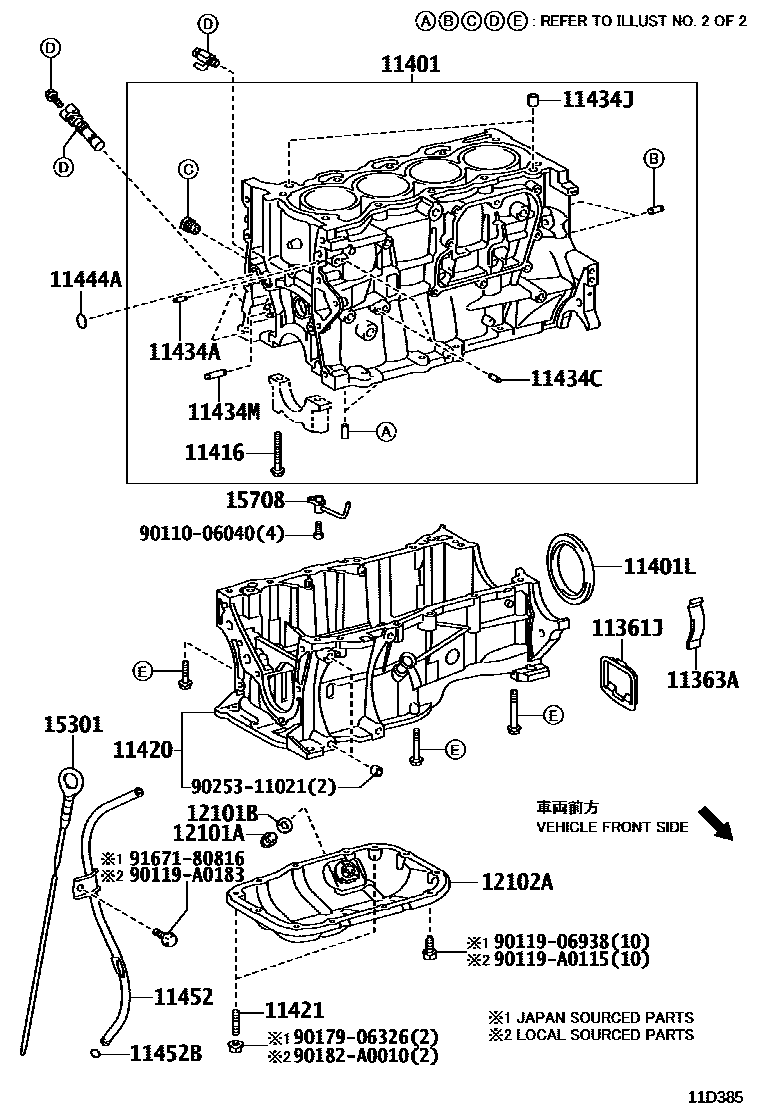

Parts diagram
11361JCOVER, FLYWHEEL HOUSING UNDER
main11361-21011i201012-201308
11363ACOVER, FLYWHEEL HOUSING SIDE
main11363-21010i201012-201308
TYPE A:REFER ILLUST.
main11363-33010i201204-201308
TYPE B:REFER ILLUST.
11401BLOCK SUB-ASSY, CYLINDER
main11410-09321i201012-201308
(L),*251
sub11410-09322
main11410-09455i201101-201308
(L),*119
sub11410-09456
main11410-39025i200712-200801
main11410-39055i200801-200904
main11410-39057i201012-201308
(J),*119
sub11410-39245
11401LSEAL, ENGINE REAR OIL
main90311-76002i200712-201012
(J)
main90311-78002i201303-201308
main90311-A0013i200807-201012
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90910-02163×10i201012-201308
*119
main90910-A2010×10i201003-201012
(L),*251
11420CRANKCASE ASSY, STIFFENING
main11420-0T010i200807-201008
(L)
main11420-0T011i201008-201012
(L)
main11420-37010i201012-201308
(J)
11421BOLT, STUD(FOR OIL PAN)
main90126-06015×2i200712-201006
main90126-06028×2i201006-201012
main90126-A0013×2i201212-201308
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
main90250-04097×2i201012-201308
L=12,OD=4.0
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
main90250-04097×2i200712-201012
L=12,OD=4.0
11434JPIN, RING (FOR CYLINDER HEAD SET)
main90253-13001×2i200712-201012
11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)
main90250-10030i200712-201012
11444ARING, O
main90301-A0034i201007-201012
(L)
main96723-24020i200712-201012
(J)
11452GUIDE, OIL LEVEL GAGE
main11452-37010i200712-201012
main11452-37011i201101-201308
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
main96721-19010i200712-201012
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i200712-201012
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90430-12031i200712-201012
12102APAN SUB-ASSY, OIL, NO.2
main12102-37010i200712-201012
15301GAGE SUB-ASSY, OIL LEVEL
main15301-37010i200712-201012
main15301-37030i201208-201306
*251
15708NOZZLE SUB-ASSY, OIL, NO.1
main15708-37010×4i200712-200809
main15708-37011×4i200809-201012
main15708-37012×4i201211-201308
9011006040
main90110-06040
9011906938
main90119-06938
90119A0115
main90119-A0115
90119A0183
main90119-A0183
9017906326
main90179-06326
90182A0010
main90182-A0010
9025311021
main90253-11021
9167180816
main91671-80816
