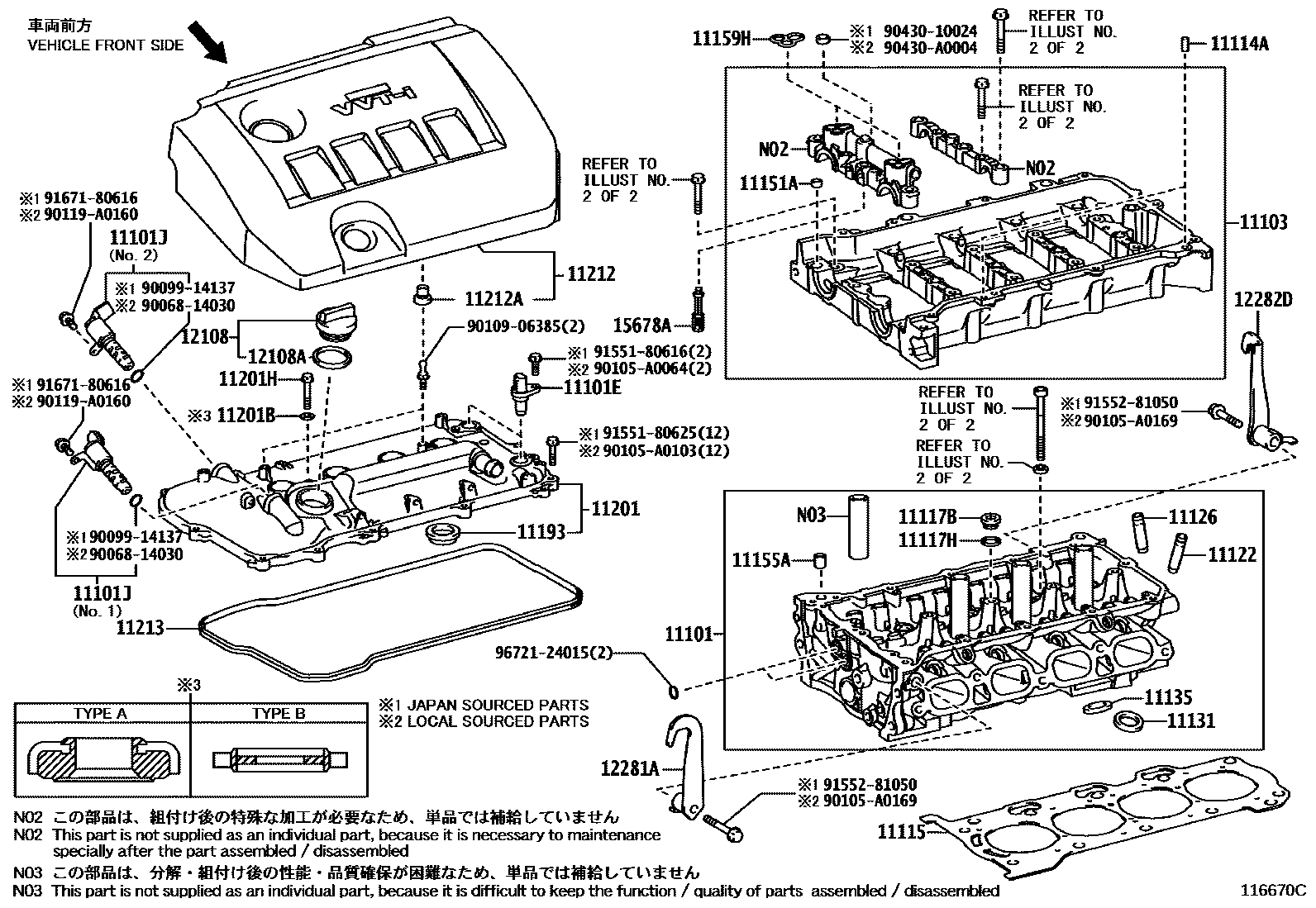

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
(L),NO.1
(L),NO.2
(J),NO.1
(J),NO.2
11103HOUSING SUB-ASSY, CAMSHAFT
(J),*251
*119
(J)
11114APIN, STRAIGHT
L=14,OD=6
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD,(L)
O/S 0.05
O/S 0.05,#,(J)
O/S 0.05,(L)
11126BUSH, EXHAUST VALVE GUIDE
STD,(L)
O/S 0.05,(L)
11131SEAT, INTAKE VALVE
STD,(L)
O/S 0.03,(L)
O/S 0.03,(J),*119
11135SEAT, EXHAUST VALVE
STD,(L)
STD,(J)
STD,(J),*119,(J),*251
O/S 0.03,(L),*251
O/S 0.03,(J),*251
O/S 0.03,(J),*119
O/S 0.03
O/S 0.03,(J),*119
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
(L)
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
(J)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
11201HBOLT(FOR CYLINDER HEAD COVER)
(L)
(J)
11212ACUSHION, CYLINDER HEAD COVER
11213GASKET, CYLINDER HEAD COVER
sub11213-37021
12108CAP SUB-ASSY, OIL FILLER
(J)
(J)
12108AGASKET(FOR OIL FILLER CAP)
(J)
12281AHANGER, ENGINE, NO.1
W/O(PAINTED)
12282DHANGER, ENGINE, NO.2
W/O(PAINTED)
15678AFILTER, OIL CONTROL VALVE
9006814030
main90068-14030
9009914137
main90099-14137
90105A0064
main90105-A0064
90105A0103
main90105-A0103
90105A0169
main90105-A0169
9010906385
main90109-06385
90119A0160
main90119-A0160
9043010024
main90430-10024
90430A0004
main90430-A0004
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180616
main91671-80616
9672124015
main96721-24015
41 parts on this diagram · 2 diagrams in section
