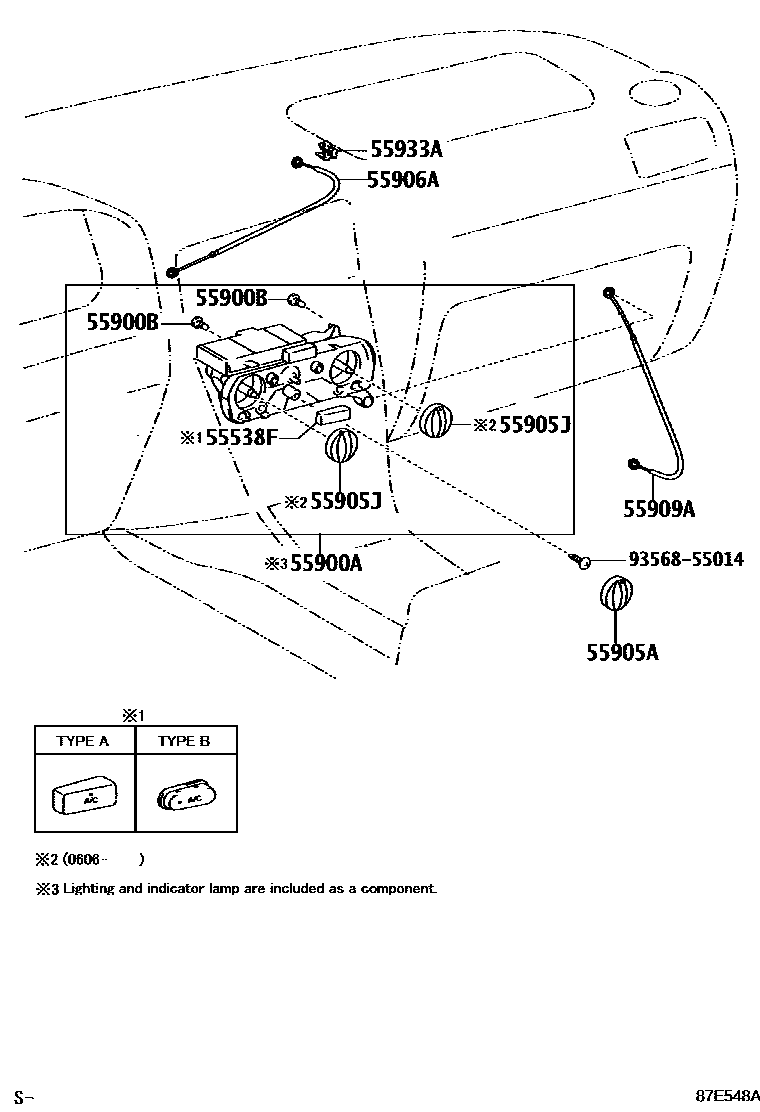

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT

55538FCOVER, COOLER SWITCH HOLE

main55538-02040iZZE130..JPP200204-200405

TYPE A:REFER TO ILLUSTRATION

main55538-02050iZZE130..JPP200405

W/O(AIR CONDITIONER)

main55538-02060iZZE130..JPP..CND200304-200405

TYPE B:REFER TO ILLUSTRATION

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-02190iZZE130..JPP200204-200309

main55900-02191iZZE130..JPP200405

main55900-02200iZZE130..JPP200204-200309

W/O(AIR CONDITIONER)

main55900-02201iZZE130..JPP..4FC..USA200309-200405

W/O(AIR CONDITIONER)

55900BBULB, AIR CONDITIONER CONTROL

main90011-01019×2iZZE130..JPP200204

14V 1.12W

main90011-01020×2iZZE130..JPP200204

14V1.8W,W(GREEN CAP)

55905AKNOB, HEATER CONTROL

main55905-02170iZZE130..JPP..4FC..USA200204-200405

55905JKNOB SUB-ASSY, CONTROL

main55905-02290×2iZZE130..JPP200606

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12400iZZE130..JPP..4FC..USA200204-200405

sub55906-YK010

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12320iZZE130..JPP..4FC..USA200204-200405

55933ACLAMP, HEATER CONTROL CABLE

main55933-52010iZZE130..JPP..4FC..USA200204-200405

9356855014

main93568-55014

9 parts on this diagram · 2 diagrams in section
