E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

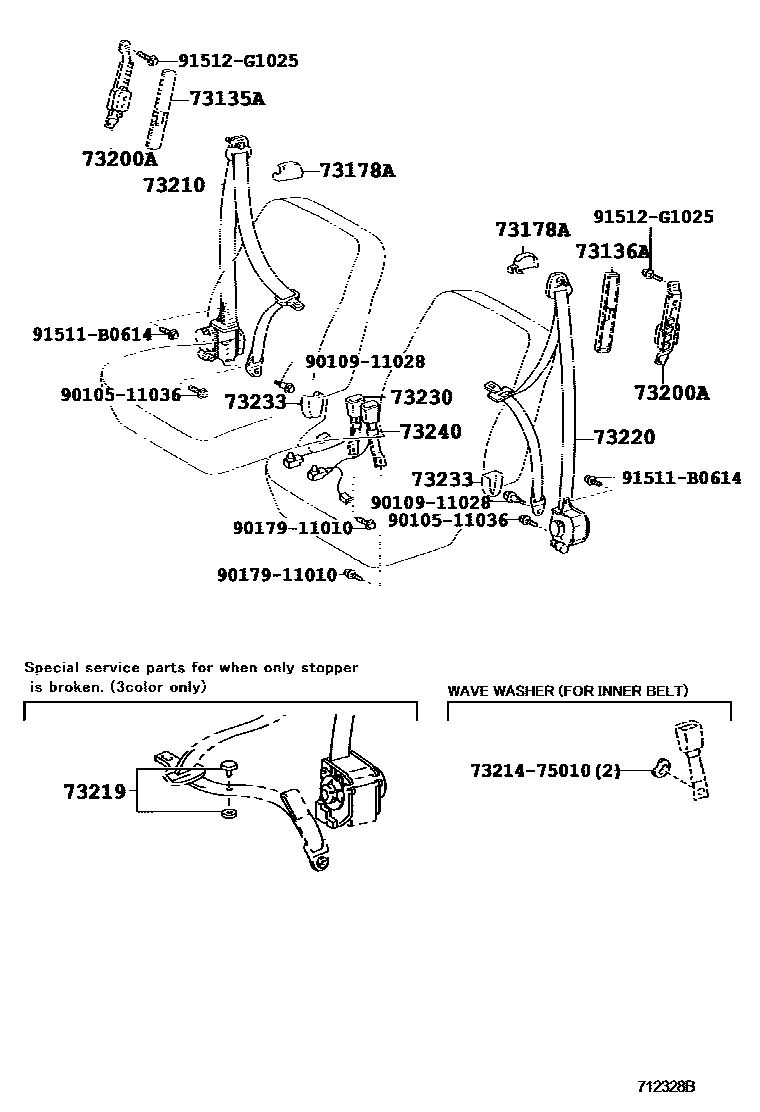

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73237-07010-B3i200405
LT.GRAY,TRIM1#
main73237-07010-E2i200204-200405
MD.NEUTRAL BONE,TRIM4#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73237-07010-B3i200204-200405
LT.GRAY,TRIM1#
main73237-07010-E2i200204-200405
MD.NEUTRAL BONE,TRIM4#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-33020-B3×2i200204-200405
LT.GRAY,TRIM1#,(J)
main73178-33020-E3×2i200405
MD.NEUTRAL BONE,TRIM4#,(J)
main73178-AA010-B5×2i200405
LT.GRAY,TRIM1#,(L)
main73178-AA010-E0×2i200204-200405
MD.NEUTRAL BONE,TRIM4#,(L)
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-52040-A0×2i200405
IVORY,TRIM4#
main73200-52040-B0×2i200405
LT.GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-02141-B0i200204-200305
CHARCOAL,TRIM1#
main73210-02141-E0i200204-200305
OAK,TRIM4#
main73210-02142-B0i200305-200405
CHARCOAL,TRIM1#
main73210-02142-E0i200305-200405
OAK,TRIM4#
73219STOPPER, TONGUE PLATE
main73219-33010i200204-200405
BLACK
main73219-33020i200204-200405
GRAY
main73219-33030i200204-200405
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-02131-B0i200204-200305
CHARCOAL,TRIM1#
main73220-02131-E0i200204-200305
OAK,TRIM4#
main73220-02132-B0i200405
CHARCOAL,TRIM1#
main73220-02132-E0i200305-200405
OAK,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-02160-B0i200204-200305
STONE,TRIM1#
main73230-02160-E0i200204-200305
MD.NEUTRAL BONE,TRIM4#
main73230-02161-B0×2i200305-200405
STONE,TRIM1#
main73230-02161-E0×2i200305-200405
MD.NEUTRAL BONE,TRIM4#
main73230-0W051-B0i200405
STONE,TRIM1#
main73230-0W051-E1i200405
MD.NEUTRAL BONE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-12050-A1×2i200611
IVORY,TRIM4#
sub73233-60020
main73233-12050-B0×2i200611
DK.GRAY,TRIM1#
sub73233-60020
main73233-33010-A1×2i200405-200611
IVORY,TRIM4#
main73233-33010-B8×2i200405-200611
DK.GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-02020-B0i200405
STONE,TRIM1#
main73240-02020-E0i200405
MD.NEUTRAL BONE,TRIM4#
main73240-02030-B0i200204-200305
STONE,TRIM1#
main73240-02030-E0i200204-200305
MD.NEUTRAL BONE,TRIM4#
main73240-02031-B0×2i200305-200405
STONE,TRIM1#
main73240-02031-E0×2i200305-200405
MD.NEUTRAL BONE,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010511036
main90105-11036
9010911028
main90109-11028
9017911010
main90179-11010
91511B0614
main91511-B0614
91512G1025
main91512-G1025

16 parts on this diagram · 2 diagrams in section
