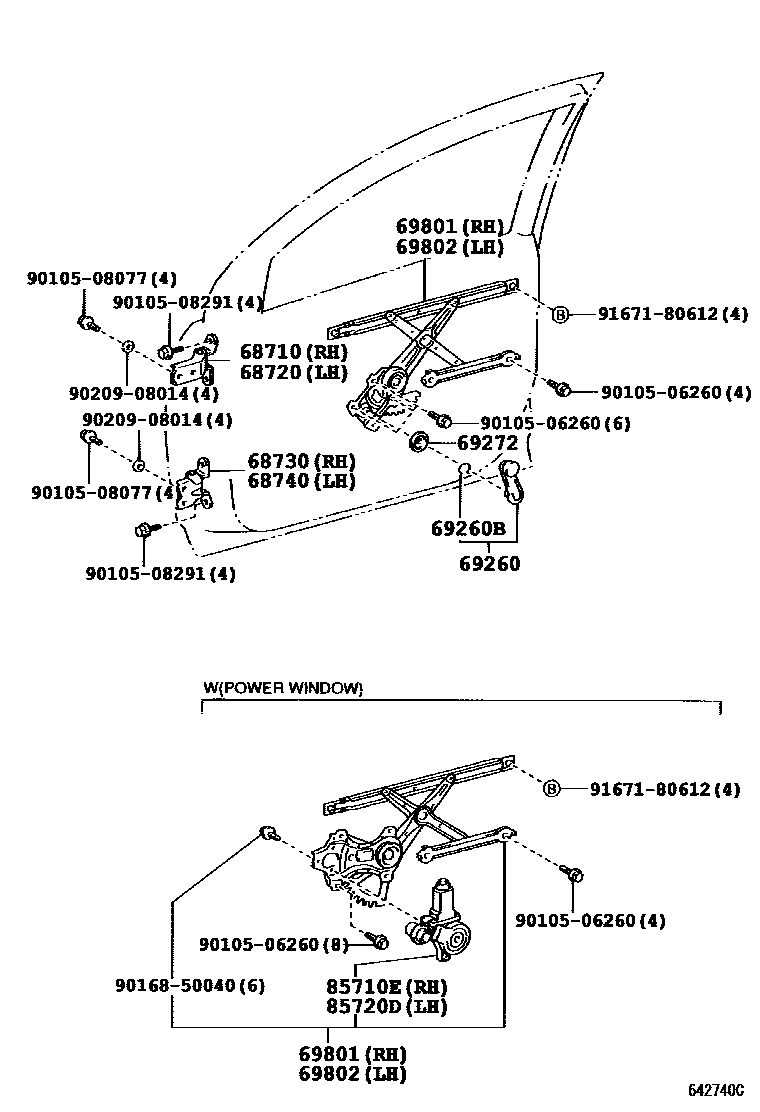

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iZZE130..JPP200204-200609

sub68710-12151

main68710-12151iZZE130..JPP200610

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iZZE130..JPP200204-200609

sub68720-12151

main68720-12151iZZE130..JPP200610

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iZZE130..JPP200204-200405

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iZZE130..JPP200204-200405

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-01020-B6iZZE130..JPP200204-200405

STONE,TRIM1#

main69260-01020-E5iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52001iZZE130..JPP..4FC..USA200204-200405

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-12020iZZE130..JPP..4FC..USA200204-200405

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-12600iZZE130..JPP..4FC..USA200204-200512

sub69810-12730

main69810-12610iZZE130..JPP..4FC..USA200204-200405

W(POWER WINDOW)

main69810-12730iZZE130..JPP200512

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-12550iZZE130..JPP..4FC..USA200204-200512

sub69820-12710

main69820-12590iZZE130..JPP..4FC..USA200204-200405

W(POWER WINDOW)

main69820-12710iZZE130..JPP200512

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AA050iZZE130..JPP..4FC..USA200204-200405

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AA050iZZE130..JPP..4FC..USA200204-200405

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9020908014

main90209-08014

9167180612

main91671-80612

17 parts on this diagram · 1 diagram in section
