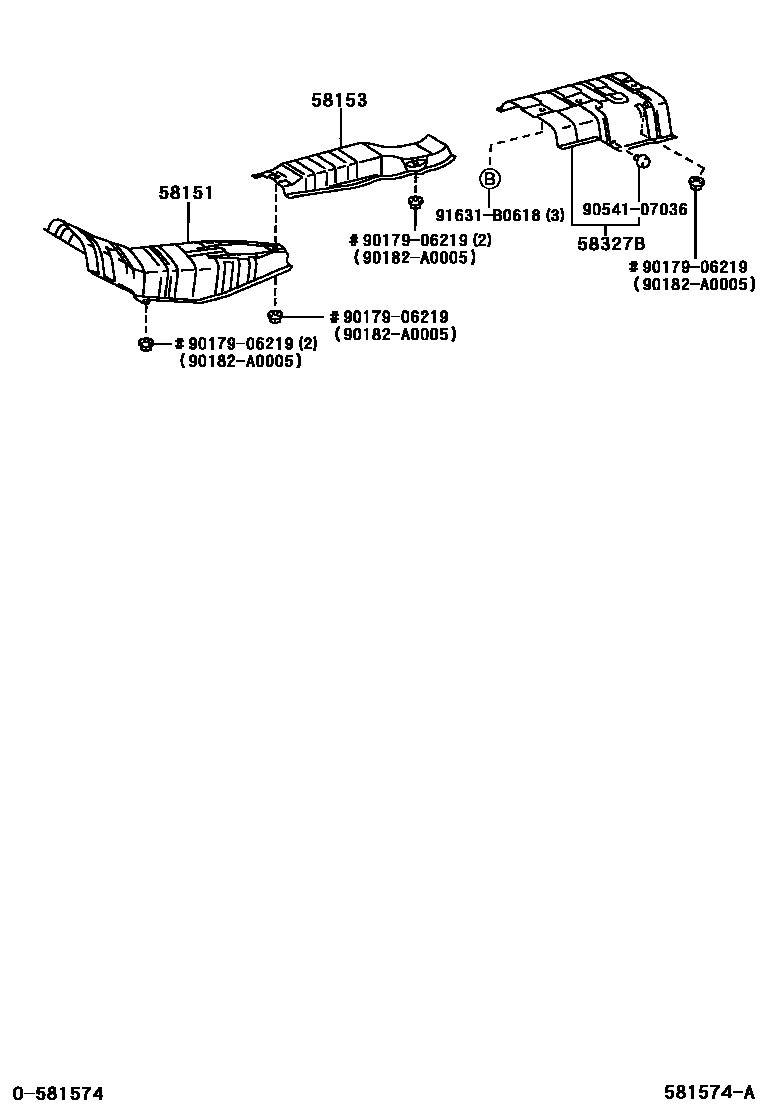

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12180iZZE130..JPP200204-200211

sub58151-12210

main58151-12210iZZE130..JPP200301-200307

main58151-12220iZZE130..5F;ZZE130..CND200307-200503

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20141iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-12160iZZE130..JPP..4FC..USA200204-200405

9017906219

main90179-06219

90182A0005

main90182-A0005

9054107036

main90541-07036

91631B0618

main91631-B0618

7 parts on this diagram · 1 diagram in section
