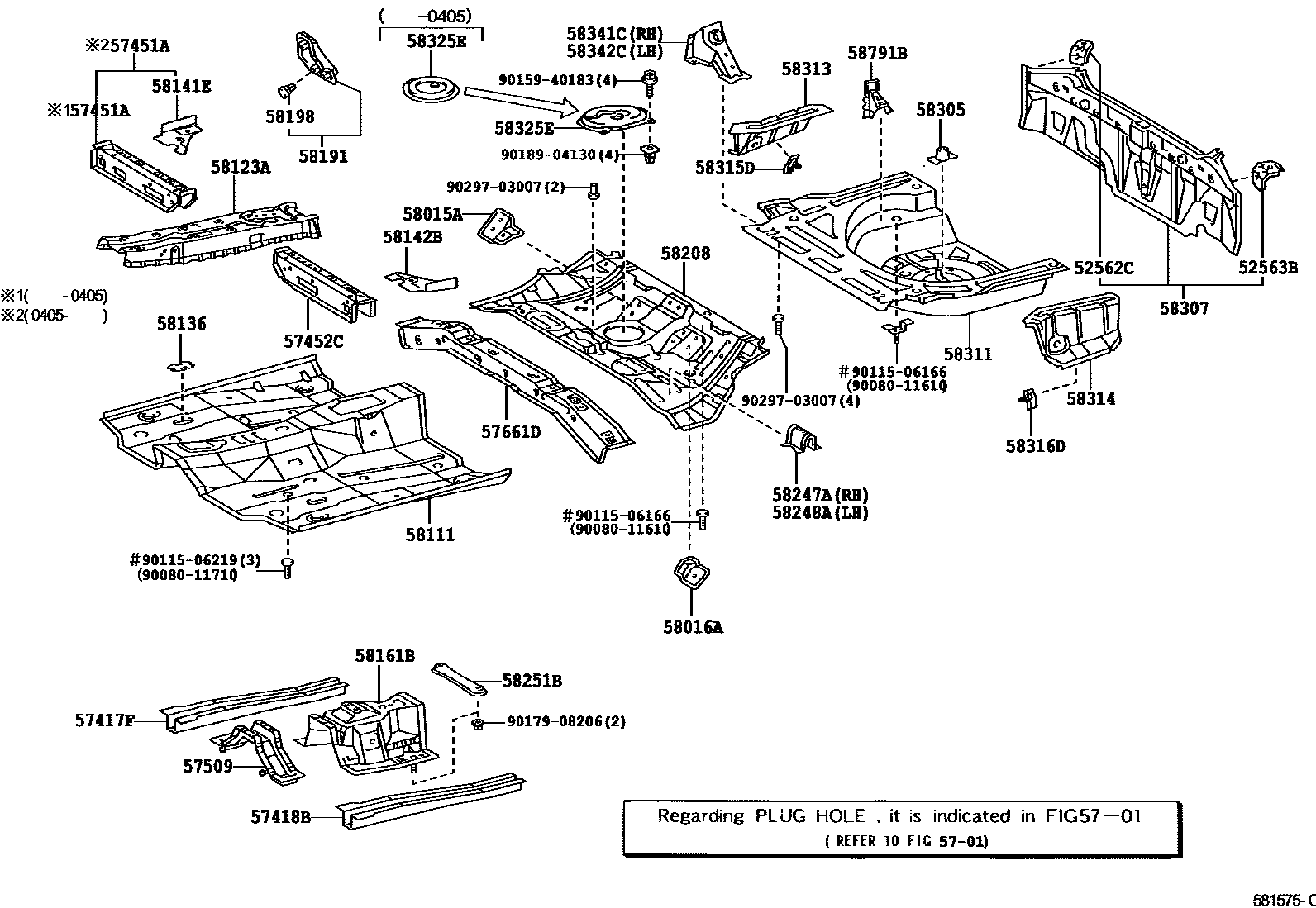

FLOOR PAN & LOWER BACK PANEL
52562CRETAINER, REAR BUMPER, UPPER RH
52563BRETAINER, REAR BUMPER, UPPER LH
5701
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57452CMEMBER, FRONT FLOOR CROSS, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
TAIWAN(CKD)
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58191FOOTREST, FRONT FLOOR
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58791BCARRIER, JACK
9008011610
main90080-11610
9008011710
main90080-11710
9011506166
main90115-06166
9011506219
main90115-06219
9015940183
main90159-40183
9017908206
main90179-08206
9018904130
main90189-04130
9029703007
main90297-03007
42 parts on this diagram · 1 diagram in section
