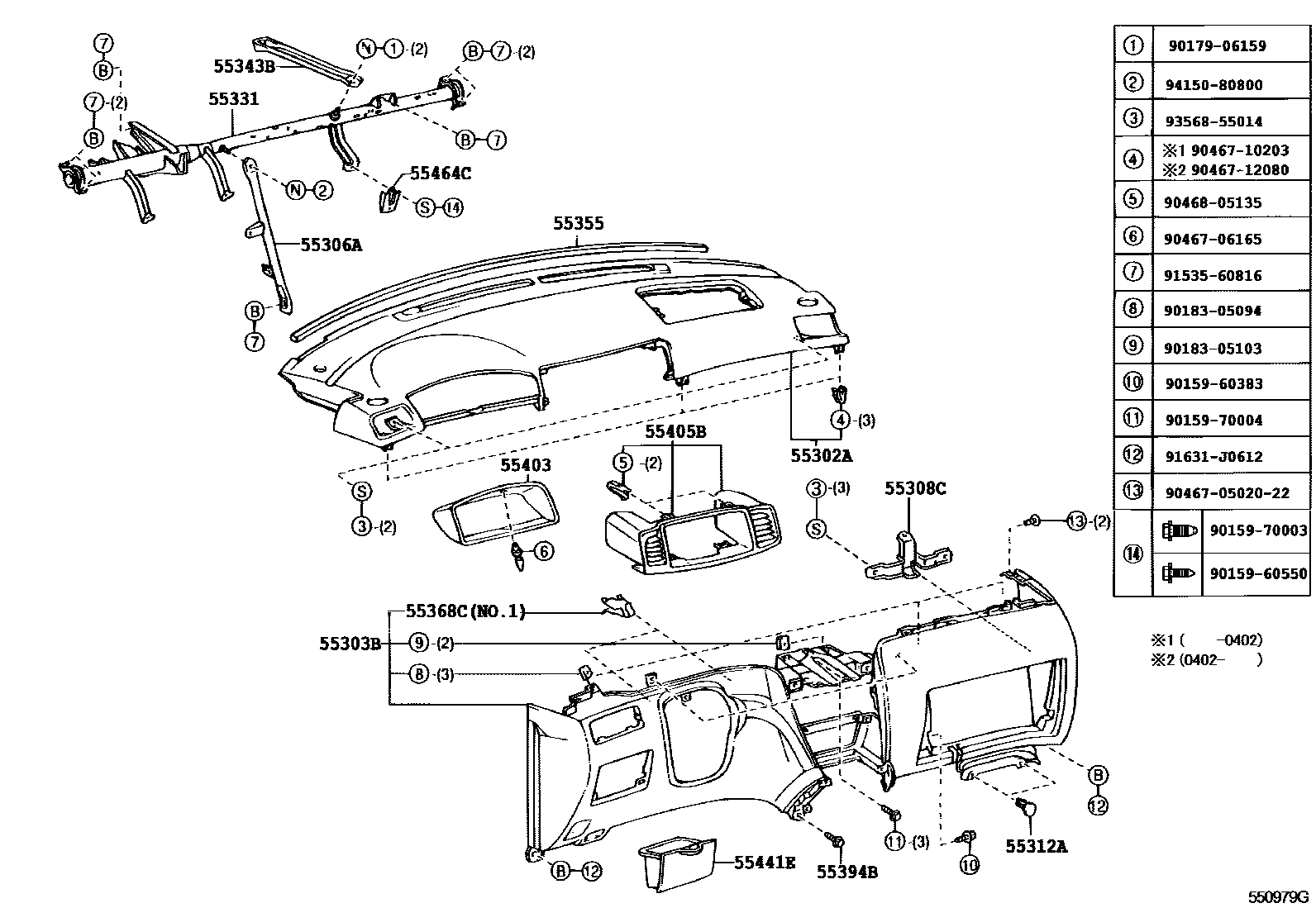

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12050-B0iZZE130..JPP200204-200405

DK. STONE,TRIM1#

main55302-12050-E0iZZE130..JPP200204-200405

DK.NEUTRAL BONE,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12280-B0iZZE130..JPP200204-200410

STONE,TRIM1#

sub55303-12281

sub90183-05103

main55303-12280-E0iZZE130..JPP200204-200410

MD.NEUTRAL BONE,TRIM4#

sub55303-12281

sub90183-05103

main55303-12281-B0iZZE130..JPP200410

STONE,TRIM1#

sub55303-02131

main55303-12281-E0iZZE130..JPP200410

MD.NEUTRAL BONE,TRIM4#

sub55303-02131

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02140iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-02120iZZE130..JPP200204-200308

sub55308-02121

main55308-02121iZZE130..JPP..4FC..USA200308-200405

55312ACLIP, INSTRUMENT PANEL

main90467-06089-C0iZZE130..JPP200204-200405

BLACK,TRIM1#,4#

sub90467-06089

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12450iZZE130..JPP..4FC..USA200204-200405

main55330-12540iZZE130..JPP200405-200409

sub55330-12541

main55330-12541iZZE130..JPP200410-200609

sub55330-12542

main55330-12542iZZE130..JPP200610

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12060iZZE130..JPP..4FC..USA200204-200405

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iZZE130..JPP..4FC..USA200204-200405

55368CBRACKET, METER MOUNTING

main55362-12050iZZE130..JPP..4FC..USA200204-200410

NO.1

main55368-12090iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

NO.2

55394BBOLT, INSTRUMENT PANEL

main55394-12020iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

55403HOOD SUB-ASSY, METER

main55403-02080iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55406-02080-B0iZZE130..JPP..CE200204-200405

DK. STONE,TRIM1#

main55406-02080-E0iZZE130..JPP..CE200204-200405

DK.NEUTRAL BONE,TRIM4#

main55406-02090-B1iZZE130..JPP..LE200405

DK. STONE,TRIM1#

main55406-02090-E0iZZE130..JPP..LE200405

DK.NEUTRAL BONE,TRIM4#

55441EBOX, INSTRUMENT PANEL

main55441-02070-B0iZZE130..JPP200204-200405

STONE,TRIM1#

main55441-02070-E0iZZE130..JPP200204-200405

MD.NEUTRAL BONE,TRIM4#

55464CINSERT, INSTRUMENT PANEL LOWER PAD, RH

main55464-02030iZZE130..JPP..4FC..USA200204-200405

9015960383

main90159-60383

9015960550

main90159-60550

9015970003

main90159-70003

9015970004

main90159-70004

9017906159

main90179-06159

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046706165

main90467-06165

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

9153560816

main91535-60816

91631J0612

main91631-J0612

9356855014

main93568-55014

9415080800

main94150-80800

30 parts on this diagram · 4 diagrams in section
